Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 622-009 |

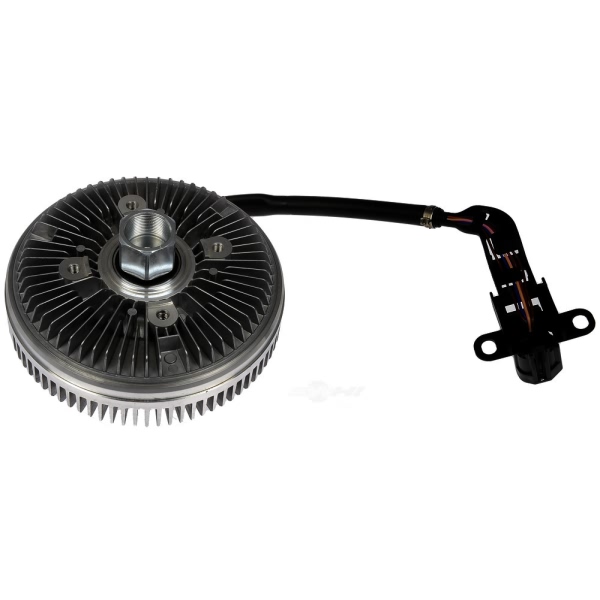

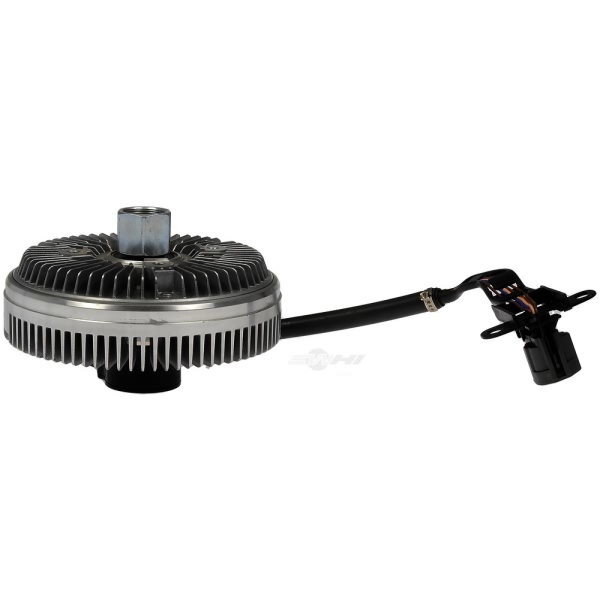

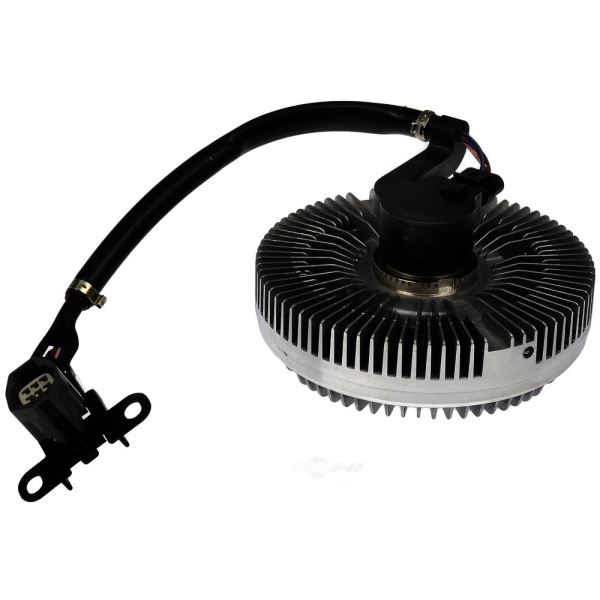

| Part Description | Engine Cooling Fan Clutch |
| Bolt Hole Quantity | 4 |
| Bolt Hole Size | M8x1.25 |
| Bore Size | 2.56" |
| Clutch Maximum Diameter | 7.43" |
| Color | Gray |
| Color/Finish | Natural |
| Connector Quantity | 1 |
| Distance From Clutch To Mounting Flange | 3.81" |
| Fan Rotation | Clockwise |
| Installation Instructions Included | No |
| Item Grade | Standard Replacement |
| Material | Plastic/Metal |
| Mounting Flange Thickness | 0.96" |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Mounting Type | Threaded |
| UPC | 885484893160 |
| OE Part Number | 68155609AB |
| Outside Diameter | 7.43" |
| Package Contents | 1 Fan Clutch |
| Package Quantity | 1 |
| Packaging Type | Box |
| Terminal Quantity | 6 |
| Terminal Type | Blade |
| Thermal Or Centrifugal | Thermal |
| Thermostatic | Yes |
| Use Type | Regular |
| Width | 4.92" |
| Wire Gauge Measurement | 12 AWG |
| Wire Quantity | 5 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
| 2010 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
| 2010-2012 Ram 2500 | All Trims | 6 Cyl 6.7L |
| 2011-2012 Ram 3500 | All Trims | 6 Cyl 6.7L |
| 2011-2012 Ram 4000 | All Trims | 6 Cyl 6.7L |
