Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 2630331 |

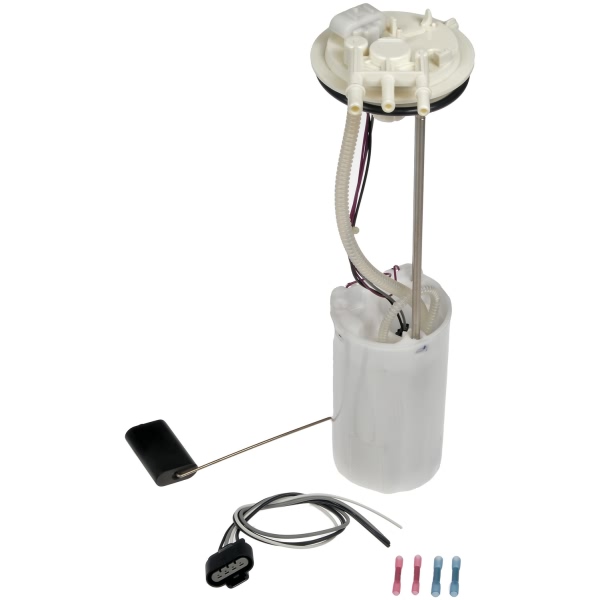

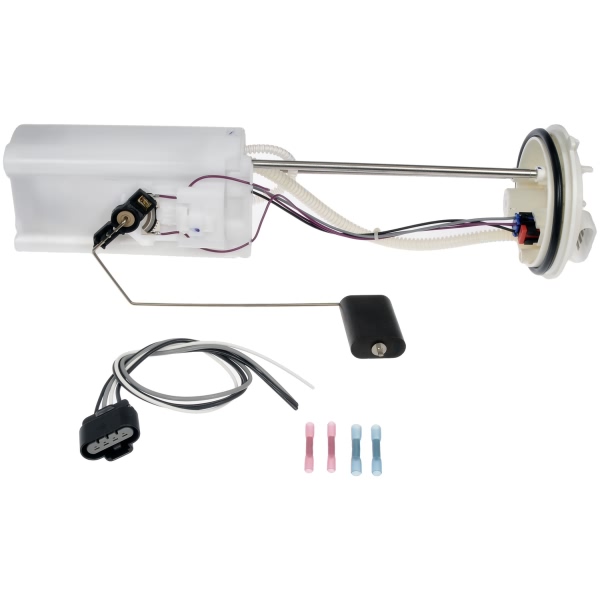

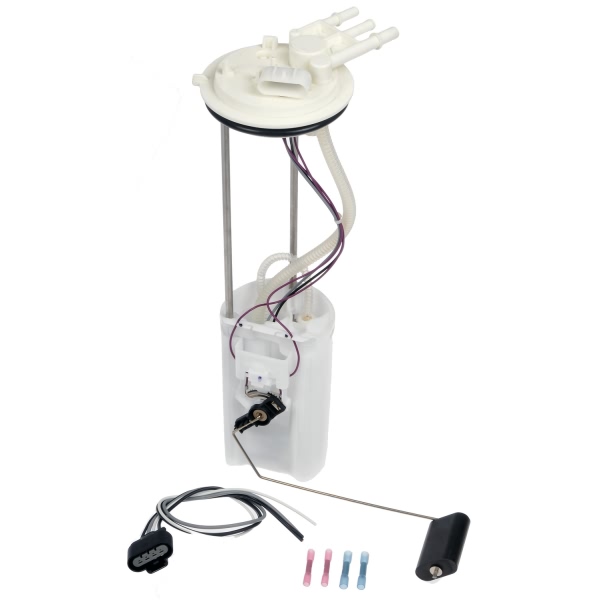

| Part Description | Fuel Pump Module Assembly |
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Oval |
| Gasket or Seal Included | Yes |
| Height | 412 |
| Housing Length | 168 |
| Housing Material | Plastic |
| Housing Width | 92 |
| Inlet Type | Jet |
| Length | 235 |
| Lock Ring Included | No |
| Maximum Flow Rating | 47.56 |
| Maximum Pressure | 110 |
| Outlet Diameter | 3/8 In.; 5/16 In.; 8.8 mm |
| Outlet Quantity | 3 |
| Outlet Type | Barbed or Male Quick Connect |
| Package Contents | 1 Fuel Pump Module Assembly |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Spade |
| Top Mount Diameter | 112.5 |
| Universal Or Specific Fit | Specific |
| UPC | 747214044917 |
| Width | 205 |
| Wire Gauge Measurement | 15 or 17 |
| Wire Quantity | 4 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1998-2000 Chevrolet C2500 | All Trims | 8 Cyl 5.7L |
| 1998-2000 Chevrolet C2500 | All Trims | 8 Cyl 7.4L |
| 1998-2000 Chevrolet C3500 | All Trims | 8 Cyl 5.7L |
| 1998-2000 Chevrolet C3500 | All Trims | 8 Cyl 7.4L |
| 1998-2000 Chevrolet K2500 | All Trims | 8 Cyl 5.7L |
| 1998-2000 Chevrolet K2500 | All Trims | 8 Cyl 7.4L |
| 1998-2000 Chevrolet K3500 | All Trims | 8 Cyl 5.7L |
| 1998-2000 Chevrolet K3500 | All Trims | 8 Cyl 7.4L |
| 1998-2000 GMC C2500 | All Trims | 8 Cyl 5.7L |
| 1998-2000 GMC C2500 | All Trims | 8 Cyl 7.4L |
