Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 2630310 |

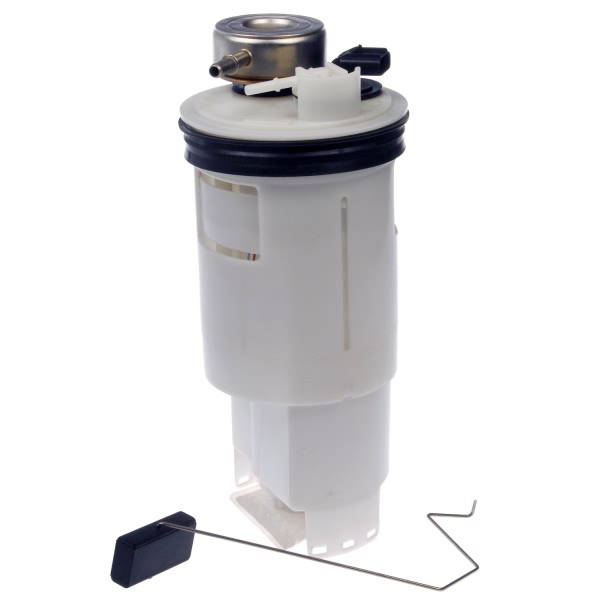

| Part Description | Fuel Tank Sending Unit |
| Connector Color | Gray |
| Connector Gender | Female |
| Connector Shape | Flat Plug |
| Height | 388 mm |
| Housing Length | 256 mm |
| Housing Material | Plastic (Polyoxymethylene) |
| Housing Width | 126 mm |
| Lock Ring Included | No |
| Maximum Flow Rating | 110 LPH |
| Maximum Pressure | 0.037 MPA |
| UPC | 747214303106 |
| OE Part Number | 5014318AE |
| Outlet Diameter | 9.5 mm |
| Outlet Quantity | 1 |
| Outlet Type | Male |
| Seal Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 4 |
| Terminal Type | Spade |
| Universal Or Specific Fit | Specific |
| Width | 6.35 mm |
| Wire Gauge Measurement | 16 Awg |
| Wire Quantity | 4 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2001 Dodge Ram 1500 | All Trims | All Engines |
| 2000-2001 Dodge Ram 2500 | All Trims | All Engines |
| 2000-2001 Dodge Ram 3500 | All Trims | All Engines |
