Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 2630329 |

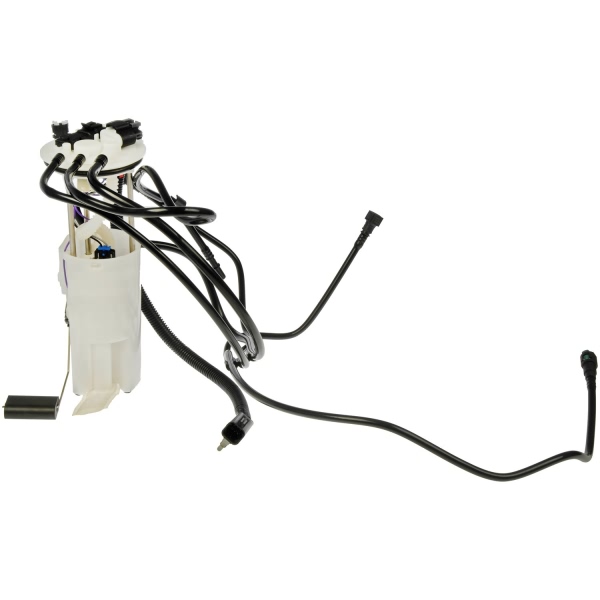

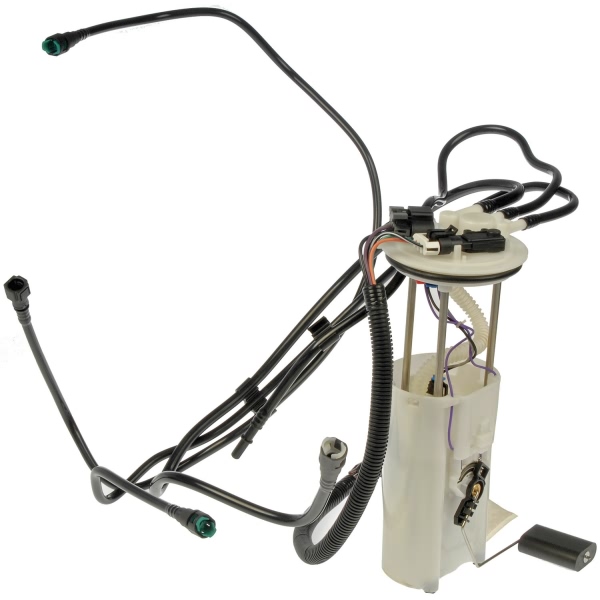

| Part Description | Fuel Tank Sending Unit |
| Connector Color | Black |
| Connector Gender | Female |
| Connector Shape | Square |
| Height | 304 mm |
| Housing Length | 168 mm |
| Housing Material | Plastic (Polyoxymethylene) |
| Housing Width | 92 mm |
| Inlet Type | Jet |
| Length | 600 mm |
| Lock Ring Included | No |
| Maximum Flow Rating | 180 LPH |
| Maximum Pressure | 110 PSI |
| UPC | 747214303298 |
| OE Part Number | 19180098, 25323841, 25312608, 25180275, 25323829 |
| Outlet Diameter | 3/8''; 5/16''; 5/16''; 5/16''; 1/4'' |
| Outlet Quantity | 5 |
| Outlet Type | Female; Female; Female; Male; Female Quick Connects |
| Seal Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Spade |
| Top Mount Diameter | 112.5 mm |
| Universal Or Specific Fit | Specific |
| Width | 154 mm |
| Wire Gauge Measurement | 15 AWG; 17 AWG |
| Wire Harness Length | 595 mm |
| Wire Quantity | 7 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-1999 Chevrolet Lumina | All Trims | 6 Cyl 3.1L |
| 1997-1999 Chevrolet Monte Carlo | All Trims | 6 Cyl 3.1L |
