Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 2630332 |

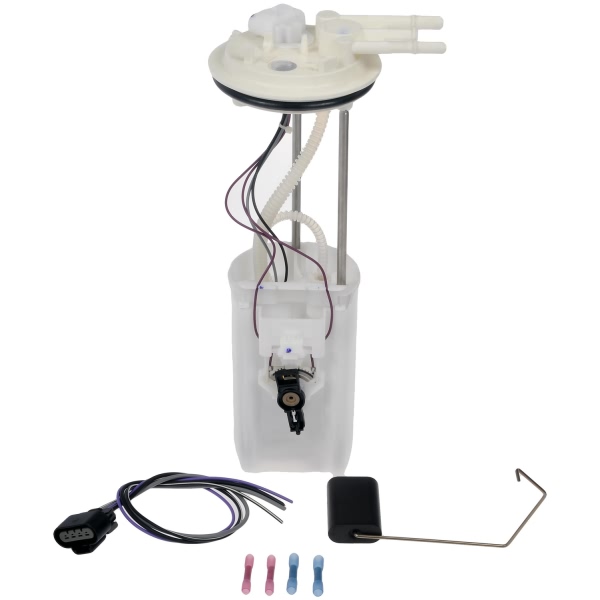

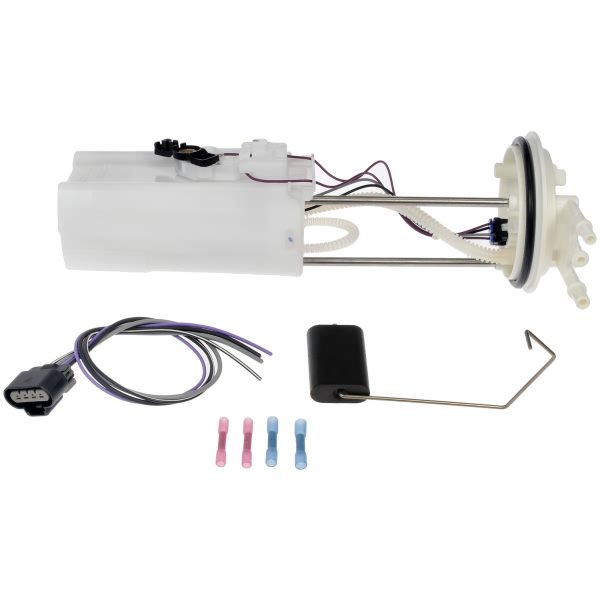

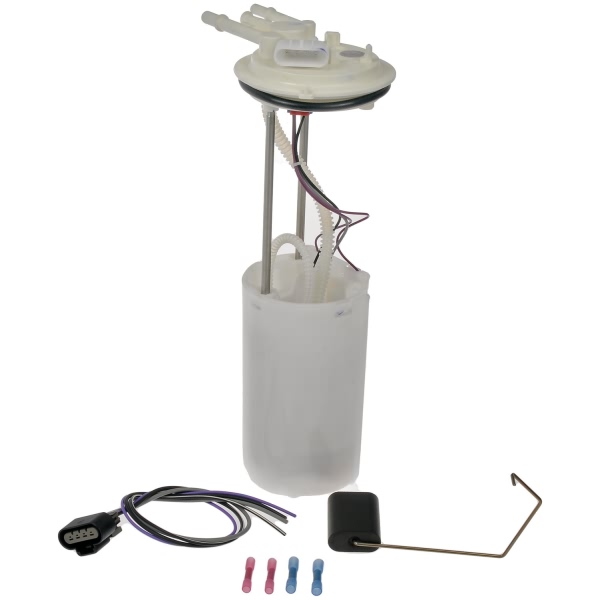

| Part Description | Fuel Tank Sending Unit |
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Oval |
| Height | 345 mm |
| Housing Length | 168 mm |
| Housing Material | Plastic (Polyoxymethylene) |
| Housing Width | 92 mm |
| Inlet Type | Jet |
| Length | 170 mm |
| Lock Ring Included | No |
| Maximum Flow Rating | 180 LPH |
| Maximum Pressure | 110 PSI |
| UPC | 747214303328 |
| OE Part Number | 25314352, 25314356 |
| Outlet Diameter | 3/8''; 5/16'' |
| Outlet Quantity | 2 |
| Outlet Type | Male Quick Connect |
| Seal Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Spade |
| Top Mount Diameter | 112.5 mm |
| Universal Or Specific Fit | Specific |
| Width | 154 mm |
| Wire Gauge Measurement | 15 AWG; 17 AWG |
| Wire Quantity | 4 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1997-2002 Chevrolet Express 1500 | All Trims | All Engines |
| 1997-2002 Chevrolet Express 2500 | All Trims | All Engines |
| 1997-2002 Chevrolet Express 3500 | All Trims | All Engines |
| 1997-2002 GMC Savana 1500 | All Trims | All Engines |
| 1997-2002 GMC Savana 2500 | All Trims | All Engines |
| 1997-2002 GMC Savana 3500 | All Trims | All Engines |
