Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 2630353 |

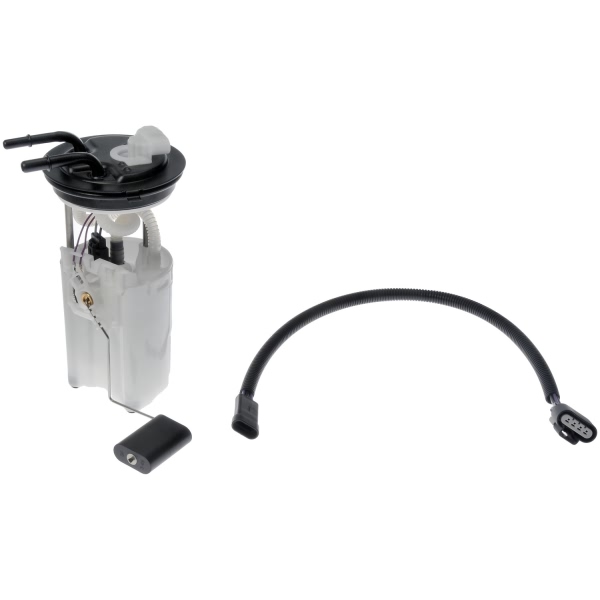

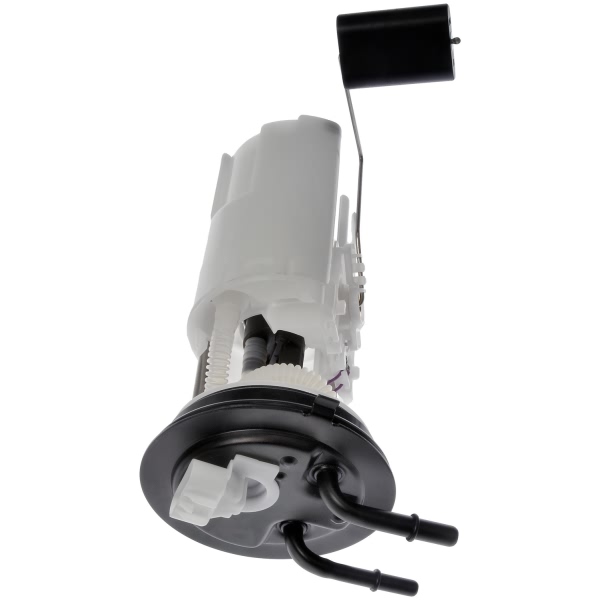

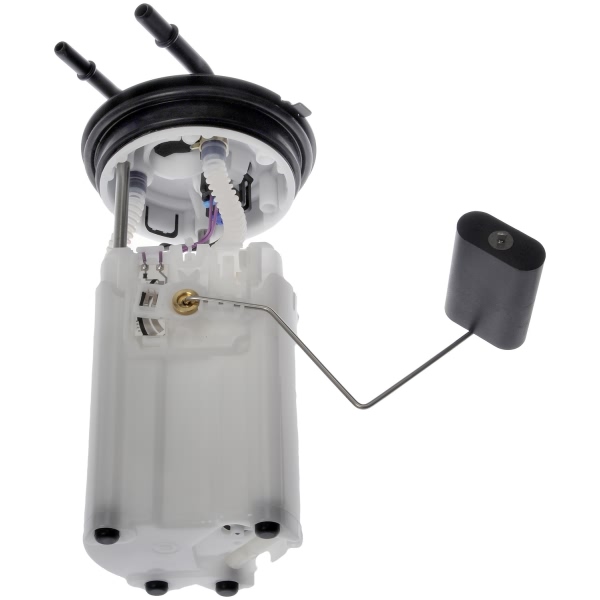

| Part Description | Fuel Tank Sending Unit |
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Flat Plug |
| Height | 175 mm |
| Housing Length | 120 mm |
| Housing Material | Plastic (Polyoxymethylene) |
| Housing Width | 94 mm |
| Inlet Diameter | 7.89 mm |
| Inlet Type | Male |
| Length | 19.5 mm |
| Lock Ring Included | No |
| Maximum Flow Rating | 85 LPH |
| Maximum Pressure | 0.8 MPA |
| UPC | 747214044948 |
| OE Part Number | 88966952, 89966950, 88965822 |
| Outlet Diameter | 9.49 mm |
| Outlet Quantity | 1 |
| Outlet Type | Male |
| Seal Included | Yes |
| Terminal Gender | Male Female |
| Terminal Quantity | 3 |
| Terminal Type | Spade |
| Top Mount Diameter | 6.35 mm |
| Universal Or Specific Fit | Specific |
| Width | 6.35 mm |
| Wire Gauge Measurement | 1.5 AWG |
| Wire Quantity | 4 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2004 Chevrolet Trailblazer | All Trims | 6 Cyl 4.2L |
| 2002-2004 Chevrolet Trailblazer EXT | All Trims | 6 Cyl 4.2L |
| 2002-2004 GMC Envoy | All Trims | 6 Cyl 4.2L |
| 2002-2004 GMC Envoy XL | All Trims | 6 Cyl 4.2L |
| 2004 GMC Envoy XUV | All Trims | 6 Cyl 4.2L |
| 2002-2004 Oldsmobile Bravada | All Trims | All Engines |
