Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 2630376 |

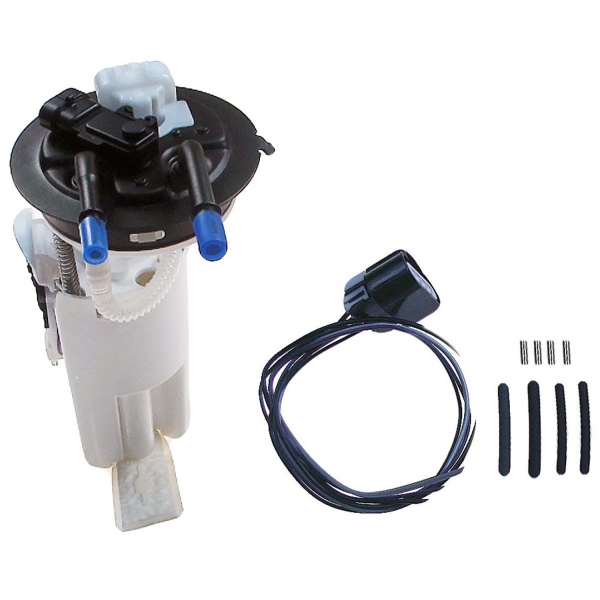

| Part Description | Fuel Tank Sending Unit |
| Connector Color | White |
| Connector Gender | Female |
| Connector Shape | Flat Plug |
| Height | 194 mm |
| Housing Length | 150 mm |
| Housing Material | Plastic (Polybutylene Terephthalate) |
| Housing Width | 94 mm |
| Inlet Diameter | 7.89 mm |
| Inlet Type | Male |
| Length | 19.5 mm |
| Lock Ring Included | No |
| Maximum Flow Rating | 117 LPH |
| Maximum Pressure | 0.8 MPA |
| UPC | 747214154432 |
| OE Part Number | 19180099, 25345024, 25340156 |
| Outlet Diameter | 9.49 mm |
| Outlet Quantity | 1 |
| Outlet Type | Male |
| Seal Included | Yes |
| Terminal Gender | Male Female |
| Terminal Quantity | 4 |
| Terminal Type | Spade |
| Top Mount Diameter | 6.35 mm |
| Universal Or Specific Fit | Specific |
| Width | 6.35 mm |
| Wire Gauge Measurement | 1.5 AWG |
| Wire Quantity | 4 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2003 Cadillac Escalade ESV | All Trims | All Engines |
| 2002-2003 Cadillac Escalade EXT | All Trims | All Engines |
| 2002-2003 Chevrolet Avalanche 1500 | All Trims | All Engines |
| 2002-2003 Chevrolet Suburban 1500 | All Trims | All Engines |
| 2002-2003 GMC Yukon XL 1500 | All Trims | All Engines |
