Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-104 |

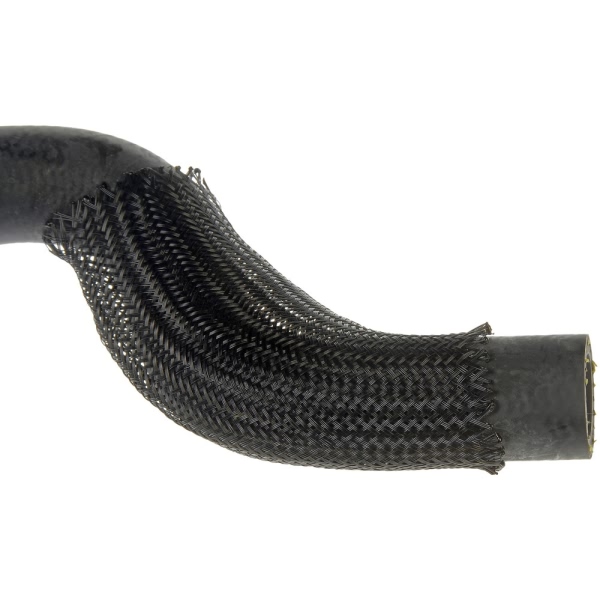

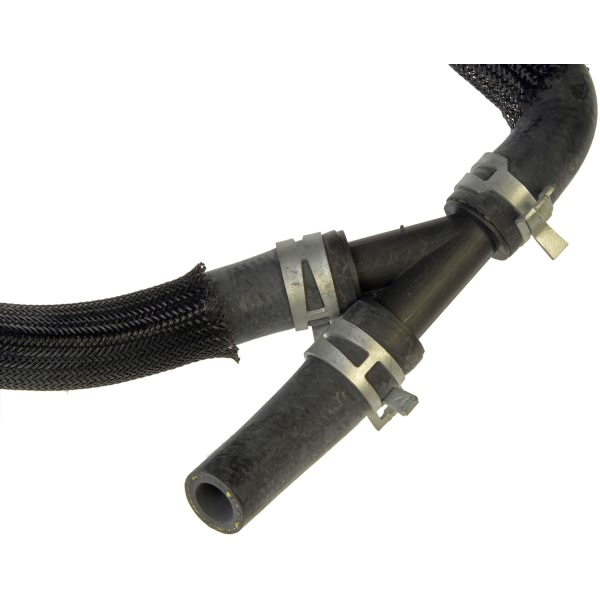

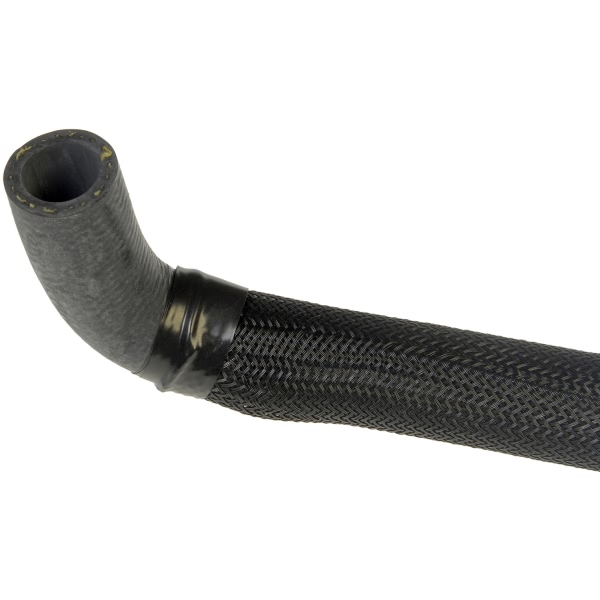

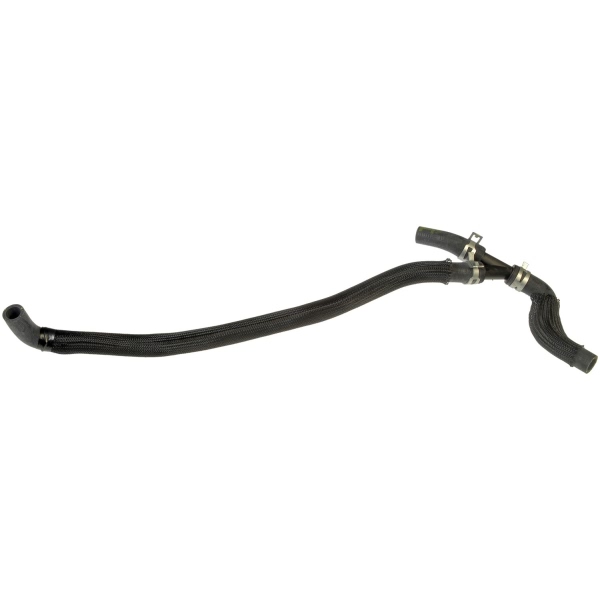

| Part Description | Hvac Heater Hose Assembly |
| Color | Natural |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Length | 24" |
| Coolant Hose Material | Rubber/Plastic |
| Coolant Hose Protective Sleeve Included | Yes |
| Coolant Hose Type | Branched |
| End 1 Attachment Type | Hose |
| End 2 Attachment Type | Hose |
| End 3 Attachment Type | Hose |
| Hose End (1) Inside Diameter (In) | 0.53" |
| Hose End (1) Outside Diameter (In) | 0.89" |
| Hose End (2) Inside Diameter (In) | 0.71" |
| Hose End (2) Outside Diameter (In) | 1" |
| Hose End (3) Inside Diameter (In) | 0.71" |
| Hose End (3) Outside Diameter (In) | 1" |
| Maximum Working Pressure (psi) | 100 |
| UPC | 019495123446 |
| OE Part Number | 15281801 |
| Package Contents | Heater Hose Assembly |
| SAE Standards | J20 |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005 Chevrolet Equinox | All Trims | 6 Cyl 3.4L |
