Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-301 |

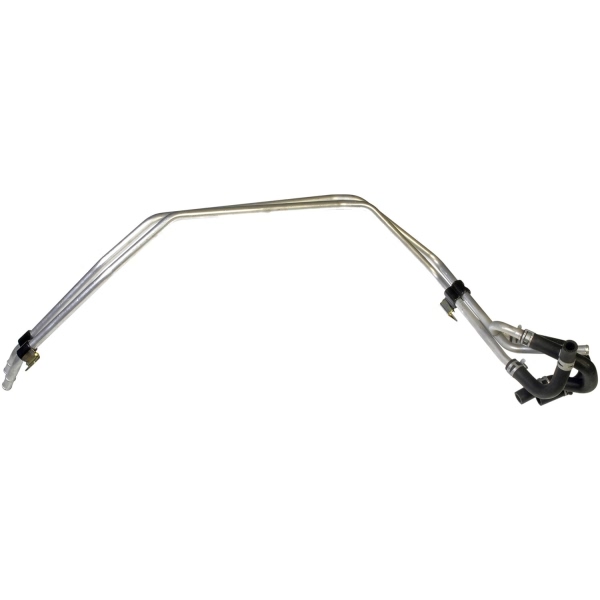

| Part Description | Hvac Heater Hose Assembly |
| Color | Black/Coated |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 66" |
| Coolant Hose Material | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
| Coolant Hose Type | Branched |
| End 1 Attachment Type | Barbed |
| End 2 Attachment Type | Hose |
| End 3 Attachment Type | Hose |
| Hose End (1) Inside Diameter (In) | 0.5" |
| Hose End (1) Outside Diameter (In) | 0.94" |
| Hose End (2) Inside Diameter (In) | 0.6" |
| Hose End (2) Outside Diameter (In) | 1.04" |
| Hose End (3) Inside Diameter (In) | 0.6" |
| Hose End (3) Outside Diameter (In) | 1.04" |
| Maximum Working Pressure (psi) | 100 |
| UPC | 019495123422 |
| OE Part Number | 5005394AF |
| Package Contents | Heater Hose Assembly |
| SAE Standards | J20 |
| Thermostatically Controlled | No |
| With Clamps | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2005 Chrysler Town & Country | All Trims | All Engines |
| 2001-2003 Chrysler Voyager | All Trims | 6 Cyl 3.3L |
| 2001-2005 Dodge Caravan | All Trims | 6 Cyl 3.3L |
| 2001-2005 Dodge Grand Caravan | All Trims | All Engines |
