Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-520 |

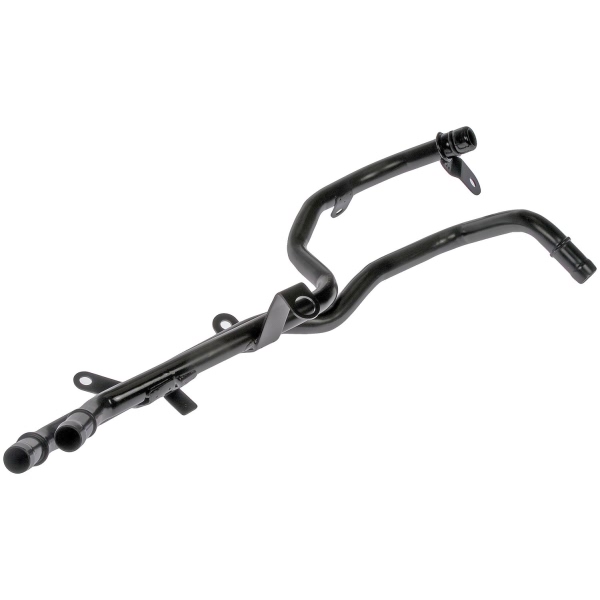

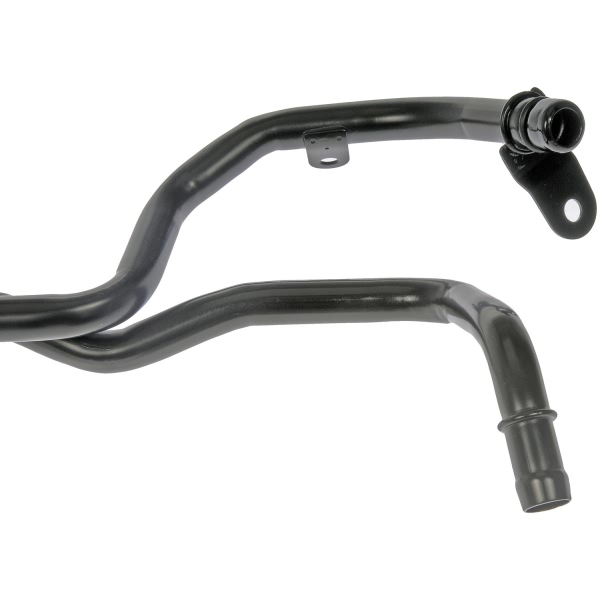

| Part Description | Hvac Heater Hose Assembly |
| Color | Black/Coated |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 17" |
| Coolant Hose Material | Steel |
| Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
| Coolant Hose Type | Single/Dual |
| End 1 Attachment Type | Flange |
| End 2 Attachment Type | Hose |
| End 3 Attachment Type | Hose |
| Hose End (1) Inside Diameter (In) | 0.5" |
| Hose End (1) Outside Diameter (In) | 0.74" |
| Hose End (2) Inside Diameter (In) | 0.56" |
| Hose End (2) Outside Diameter (In) | 0.64" |
| Hose End (3) Inside Diameter (In) | 0.56" |
| Hose End (3) Outside Diameter (In) | 0.64" |
| Maximum Working Pressure (psi) | 100 |
| UPC | 019495912262 |
| OE Part Number | 12600226 |
| Package Contents | Heater Hose Assembly |
| SAE Standards | J20 |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2007 Chevrolet Malibu | All Trims | 6 Cyl 3.9L |
| 2007-2010 Chevrolet Malibu | All Trims | 6 Cyl 3.5L |
| 2006-2009 Pontiac G6 | All Trims | 6 Cyl 3.9L |
| 2007-2010 Pontiac G6 | All Trims | 6 Cyl 3.5L |
| 2007-2008 Saturn Aura | All Trims | 6 Cyl 3.5L |
