Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-527 |

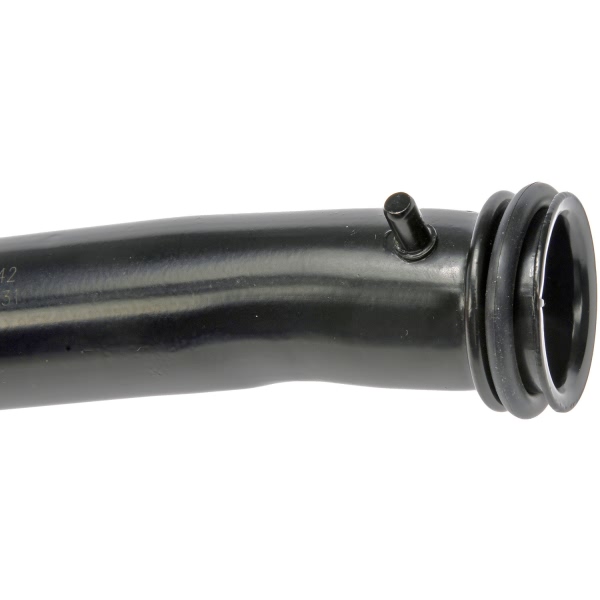

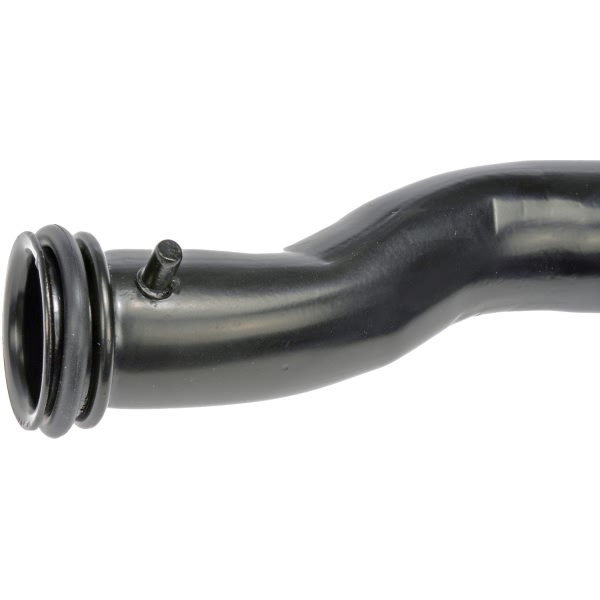

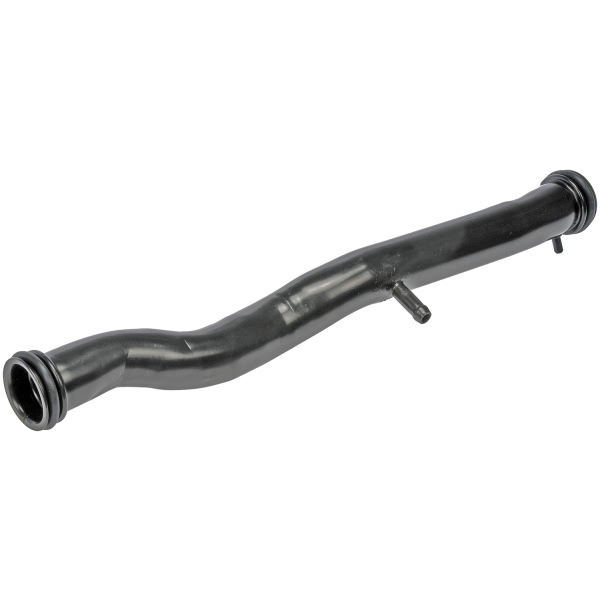

| Part Description | Hvac Heater Hose Assembly |
| Color | Natural |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 13" |
| Coolant Hose Material | Steel |
| Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Flange |
| End 2 Attachment Type | Flange |
| End 3 Attachment Type | Hose |
| Hose End (1) Inside Diameter (In) | 1.1" |
| Hose End (1) Outside Diameter (In) | 1.33" |
| Hose End (2) Inside Diameter (In) | 1.1" |
| Hose End (2) Outside Diameter (In) | 1.33" |
| Hose End (3) Inside Diameter (In) | 0.23" |
| Hose End (3) Outside Diameter (In) | 0.35" |
| Maximum Working Pressure (psi) | 100 |
| UPC | 037495329521 |
| OE Part Number | 19505P2A000 |
| Package Contents | Heater Hose Assembly |
| SAE Standards | Not Applicable |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1996-2000 Honda Civic | All Trims | 4 Cyl 1.6L |
| 1996-1997 Honda Civic del Sol | All Trims | 4 Cyl 1.6L |
