Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-537 |

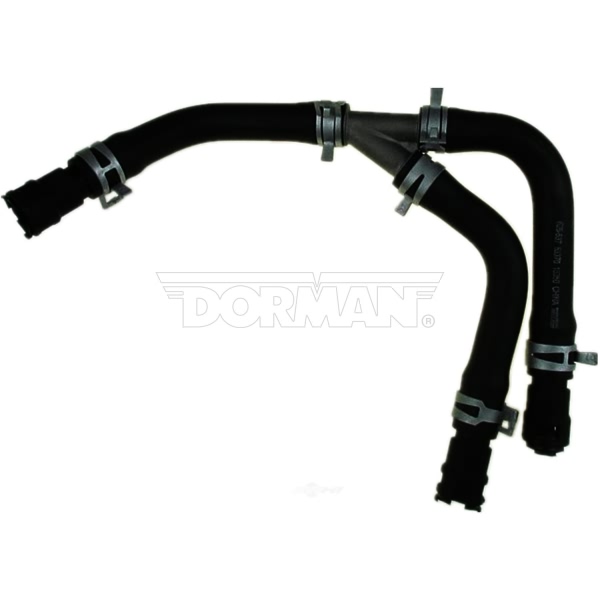

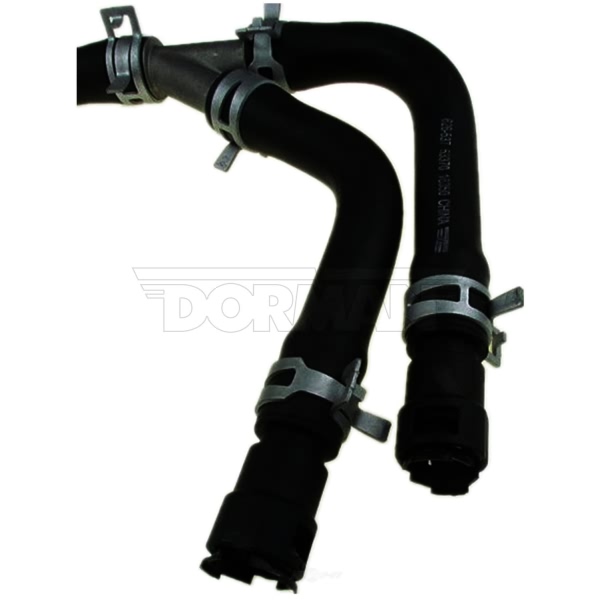

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 3 |
| Color/Finish | Natural |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 14" |
| Coolant Hose Material | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included | Not Required |
| Coolant Hose Type | Branched |
| End 1 Attachment Type | Quick Disconnect |
| End 2 Attachment Type | Quick Disconnect |
| End 3 Attachment Type | Quick Disconnect |
| Grade Type | Standard |
| Hose End (1) Inside Diameter (In) | 0.63" |
| Hose End (1) Outside Diameter (In) | 0.88" |
| Hose End (2) Inside Diameter (In) | 0.63" |
| Hose End (2) Outside Diameter (In) | 0.88" |
| Hose End (3) Inside Diameter (In) | 0.63" |
| Hose End (3) Outside Diameter (In) | 0.88" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 037495830324 |
| OE Part Number | 7L1Z18472AA |
| Thermostatically Controlled | No |
| With Clamps | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2008 Ford Expedition | All Trims | 8 Cyl 5.4L |
| 2007-2008 Lincoln Navigator | All Trims | 8 Cyl 5.4L |
| 2007-2008 Lincoln Navigator | All Trims | All Engines |
