Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-538 |

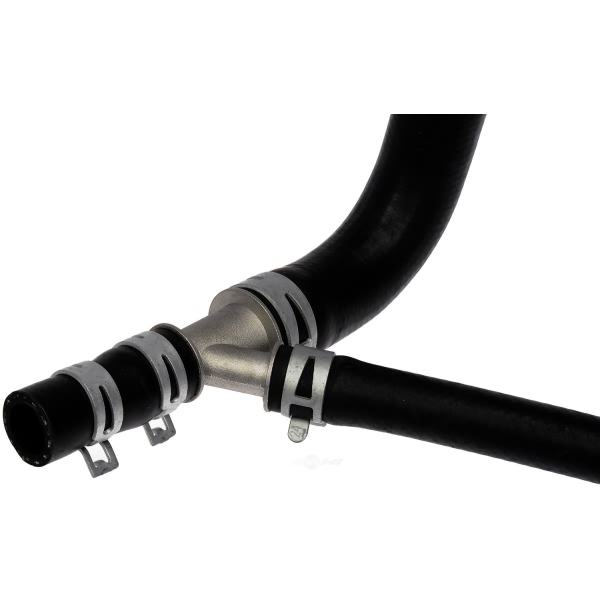

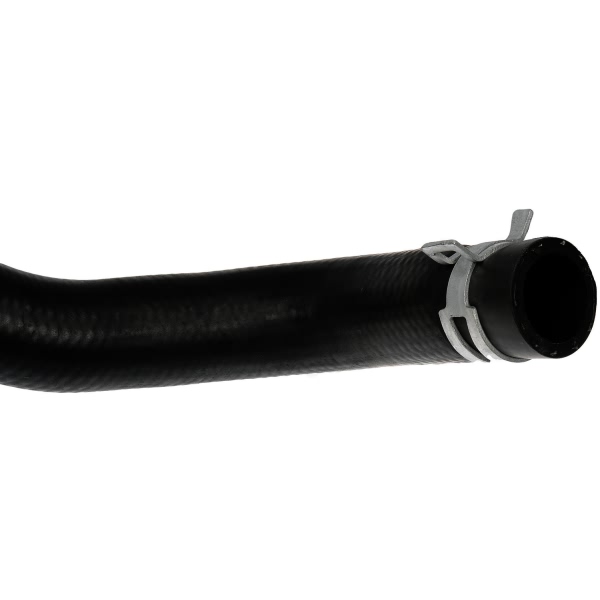

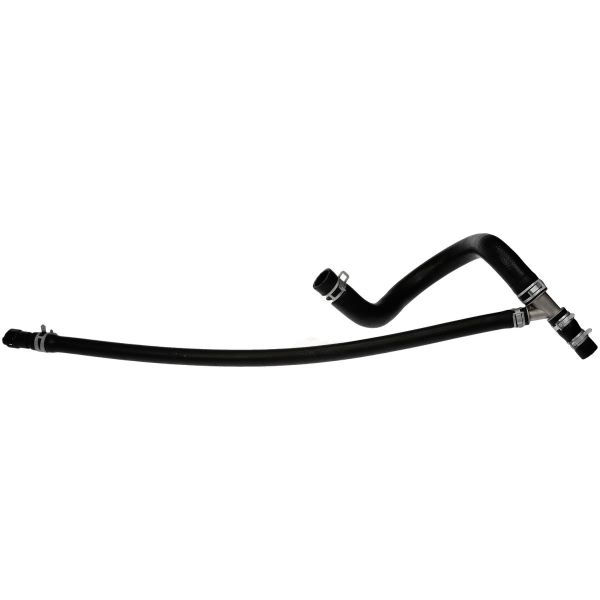

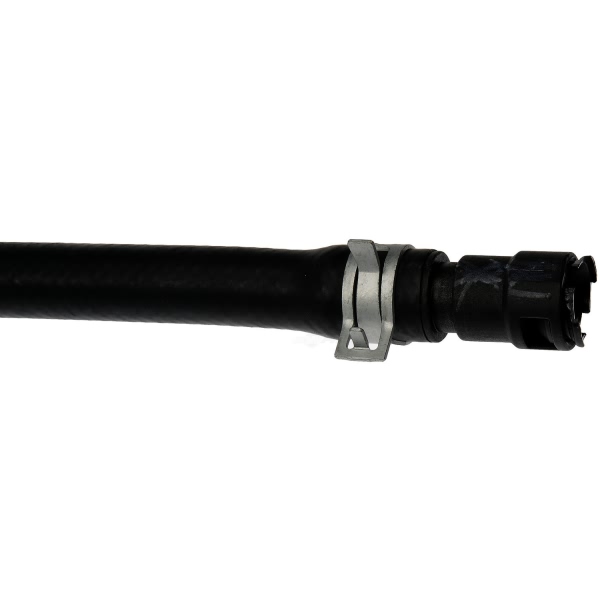

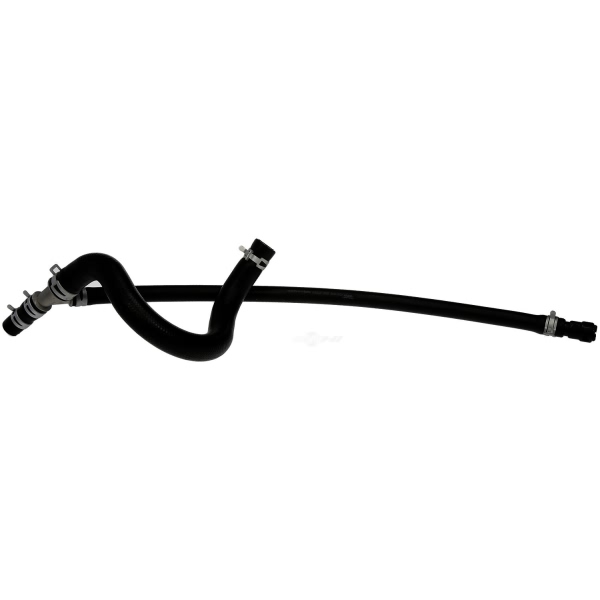

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 3 |
| Color/Finish | Natural/No Finish |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 32" |
| Coolant Hose Material | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included | Not Required |
| Coolant Hose Type | Branched |
| End 1 Attachment Type | Hose |
| End 2 Attachment Type | Hose |
| End 3 Attachment Type | Quick Connect |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.72" |
| Hose End (1) Outside Diameter (In) | 1.05" |
| Hose End (2) Inside Diameter (In) | 1.05" |
| Hose End (2) Outside Diameter (In) | 1.34" |
| Hose End (3) Inside Diameter (In) | 0.62" |
| Hose End (3) Outside Diameter (In) | 1.06" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 037495836036 |
| OE Part Number | 15792822 |
| Thermostatically Controlled | No |
| With Clamps | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2002-2005 Cadillac Escalade | All Trims | 8 Cyl 5.3L |
| 2002-2006 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2003-2006 Cadillac Escalade ESV | All Trims | 8 Cyl 6.0L |
| 2002-2006 Chevrolet Avalanche 1500 | All Trims | 8 Cyl 5.3L |
| 2000-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 4.8L |
| 2000-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 5.3L |
| 2003-2006 Chevrolet Silverado 1500 | All Trims | 8 Cyl 6.0L |
| 2001-2003 Chevrolet Silverado 1500 HD | All Trims | 8 Cyl 6.0L |
| 2005-2006 Chevrolet Silverado 1500 HD | All Trims | 8 Cyl 6.0L |
| 2000-2004 Chevrolet Silverado 2500 | All Trims | 8 Cyl 6.0L |
