Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-541 |

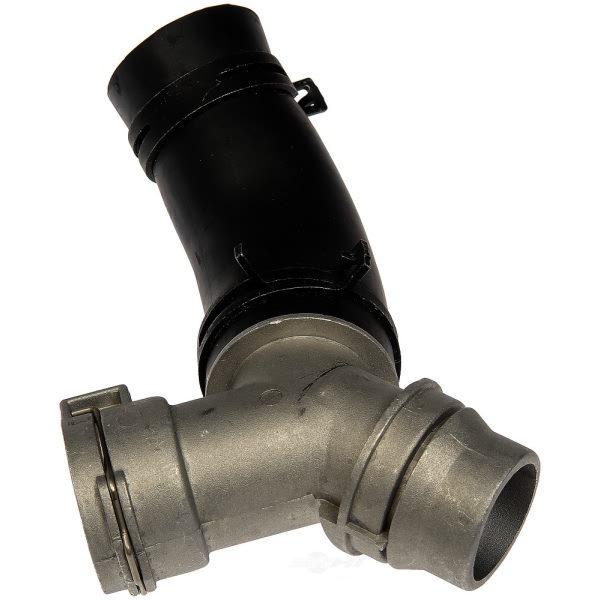

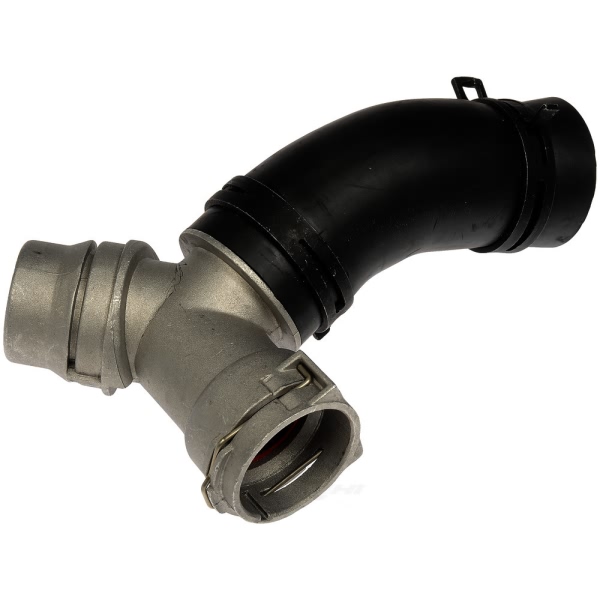

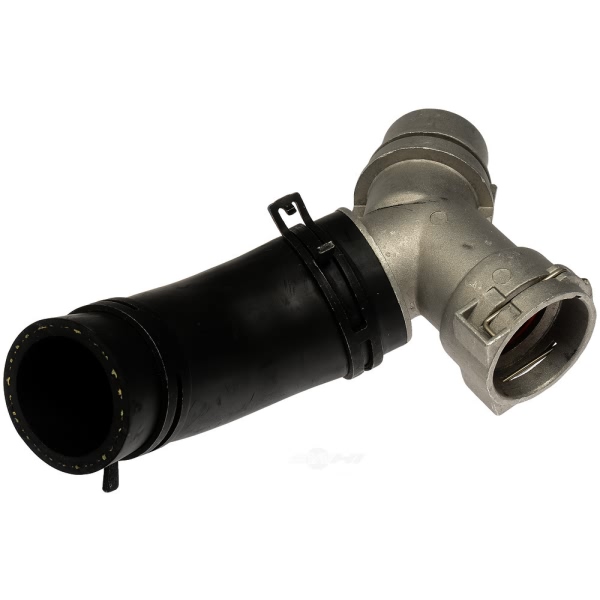

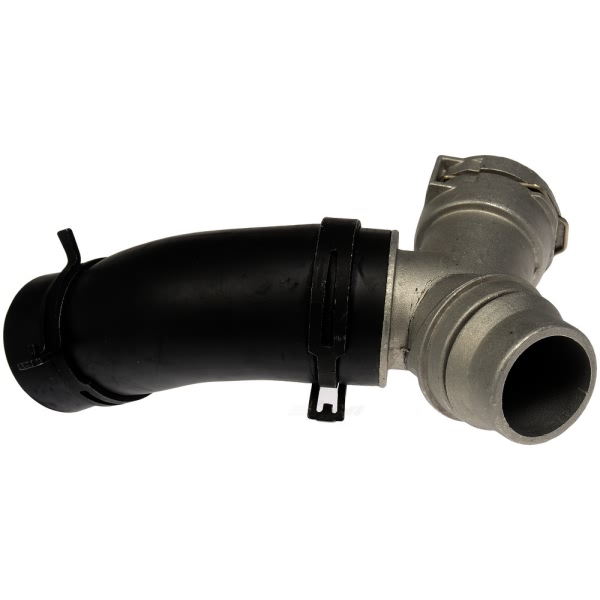

| Part Description | Hvac Heater Hose Assembly |
| Axis 1 Length | 5.69 in |
| Axis 2 Length | 2.44 in |
| Axis 3 Length | 2.17 in |
| Branch Quantity | 3 |
| Centerline Length | 5.69 in |
| Collapsed Pressure Rating | 50 PSI |
| Color | Natural |
| Contains Spring | No |
| End 1 Inside Diameter | 1.56 in |
| End 2 Inside Diameter | 1.57 in |
| End 3 Inside Diameter | 1.26 in |
| Hose Shape | Molded Assembly |
| Material | Plastic |
| Maximum Bend Angle | 10 deg |
| Maximum Working Pressure | 50 PSI |
| UPC | 885484352926 |
| OE Part Number | DR3Z8566B, BR3Z8566A, DR3Z8566A, BR3Z8566B |
| Package Contents | Heater Hose Assembly |
| Protective Sleeve Attached | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2018 Ford F-150 | All Trims | 8 Cyl 5.0L |
| 2011-2018 Ford Lobo | All Trims | 8 Cyl 5.0L |
| 2011-2017 Ford Mustang | All Trims | 8 Cyl 5.0L |
| 2015-2018 Ford Mustang | All Trims | 8 Cyl 5.2L |
| 2011-2014 Lincoln Mark LT | All Trims | 8 Cyl 5.0L |
