Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-549 |

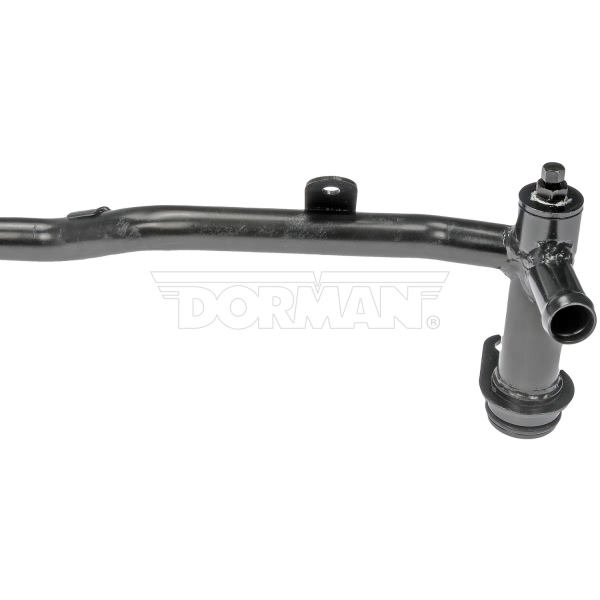

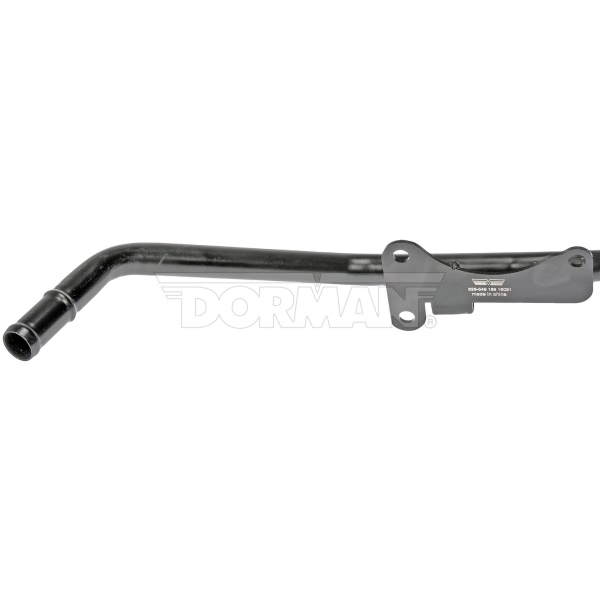

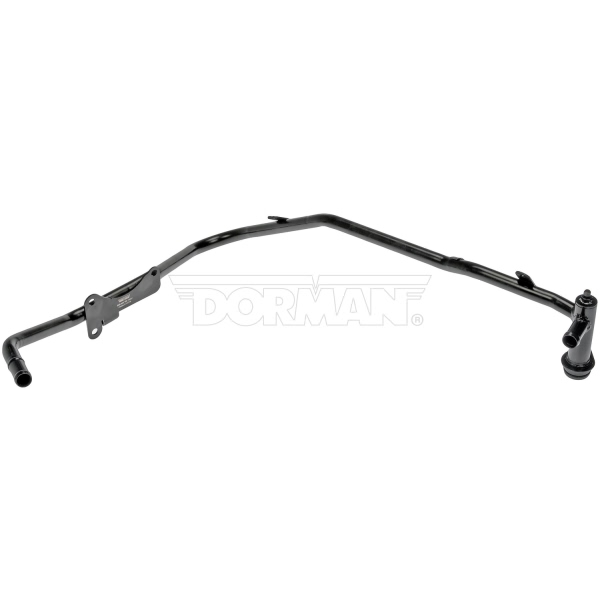

| Part Description | Hvac Heater Hose Assembly |
| Color Finish | Black/Coated |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 38" |
| Coolant Hose Material | Aluminum |
| Coolant Hose Protective Sleeve Included | No Protective Sleeve Required |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Barbed |
| End 2 Attachment Type | Ring |
| End 3 Attachment Type | Barbed |
| Hose End 1 Inside Diameter in | 0.530" |
| Hose End 1 outside Diameter in | 0.680" |
| Hose End 2 Inside Diameter in | 0.755" |
| Hose End 2 Outside Diameter In | 1.05" |
| Hose End 3 Inside Diameter In | 0.540" |
| Hose End 3 Outside Diameter In | 0.70" |
| Maximum Working Pressure Psi | 100 PSI |
| UPC | 885484533455 |
| OE Part Number | 12593217 |
| Package Contents | Heater Hose Assembly |
| Package Quantity | 1 |
| Packaging Type | Bag |
| SAE Standards | J20 |
| Thermostatically Controlled | No |
| With Clamps | Not Required |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Chevrolet Malibu | All Trims | 6 Cyl 3.5L |
| 2005-2006 Pontiac G6 | All Trims | 6 Cyl 3.5L |
