Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-569 |

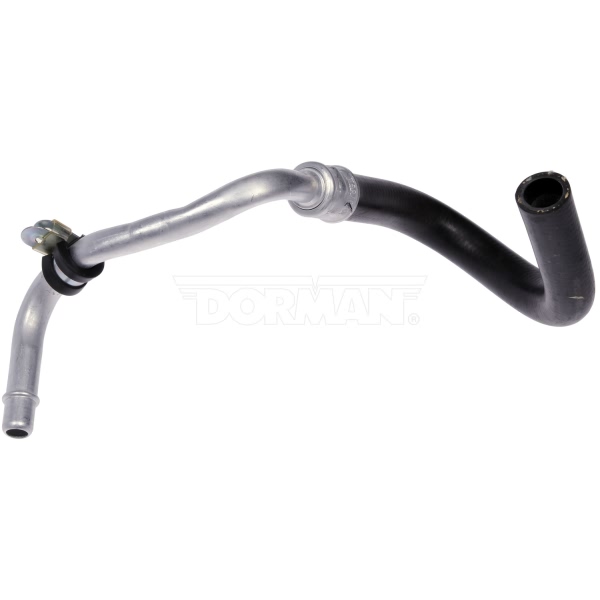

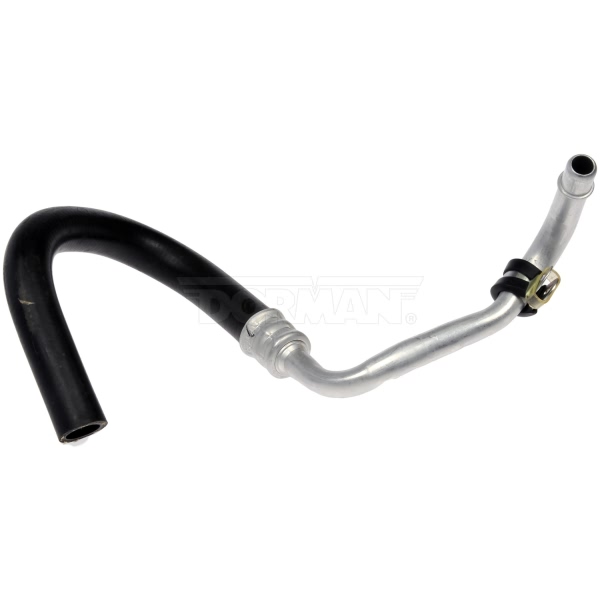

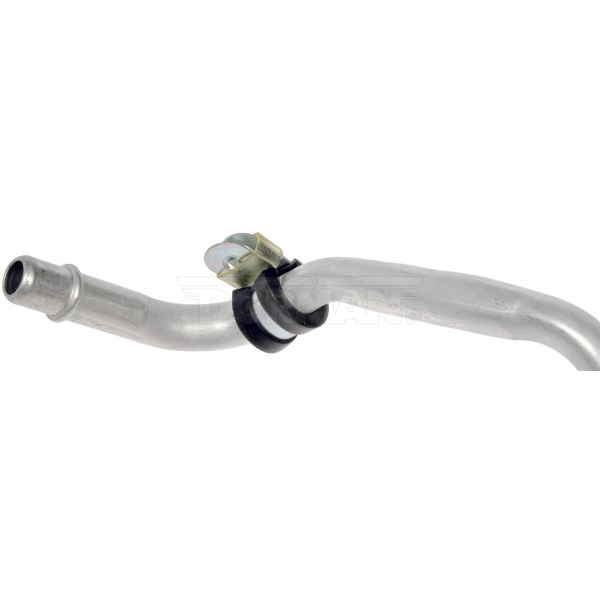

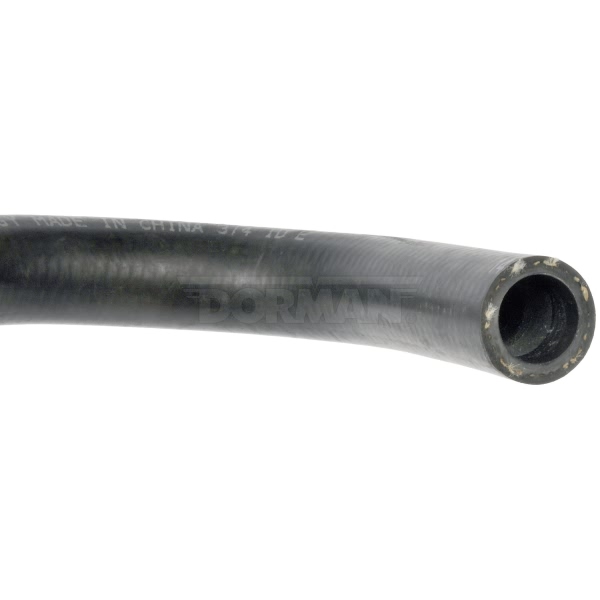

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 2 |
| Color/Finish | Natural/No Finish |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 12" |
| Coolant Hose Material | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included | Not Required |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Straight |
| End 2 Attachment Type | Hose |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.44" |
| Hose End (1) Outside Diameter (In) | 0.62" |
| Hose End (2) Inside Diameter (In) | 0.75" |
| Hose End (2) Outside Diameter (In) | 1.03" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 885484663404 |
| OE Part Number | 15961522 |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1992-1994 Chevrolet Blazer | All Trims | 8 Cyl 5.7L |
| 1988-1991 Chevrolet C1500 | All Trims | All Engines |
| 1988-1994 Chevrolet C1500 | All Trims | 6 Cyl 4.3L |
| 1988-1994 Chevrolet C1500 | All Trims | 8 Cyl 5.0L |
| 1988-1995 Chevrolet C1500 | All Trims | 8 Cyl 5.7L |
| 1992-1995 Chevrolet C1500 Suburban | All Trims | 8 Cyl 5.7L |
| 1988-1991 Chevrolet C2500 | All Trims | All Engines |
| 1988-1994 Chevrolet C2500 | All Trims | 6 Cyl 4.3L |
| 1988-1994 Chevrolet C2500 | All Trims | 8 Cyl 5.0L |
| 1988-1995 Chevrolet C2500 | All Trims | 8 Cyl 5.7L |
