Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-584 |

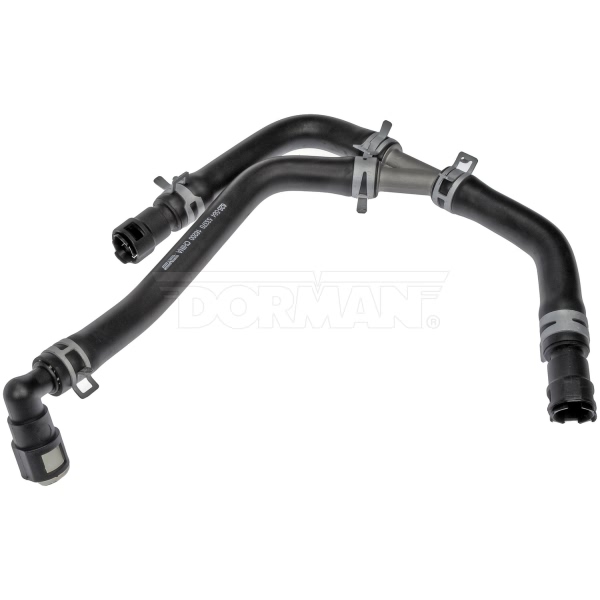

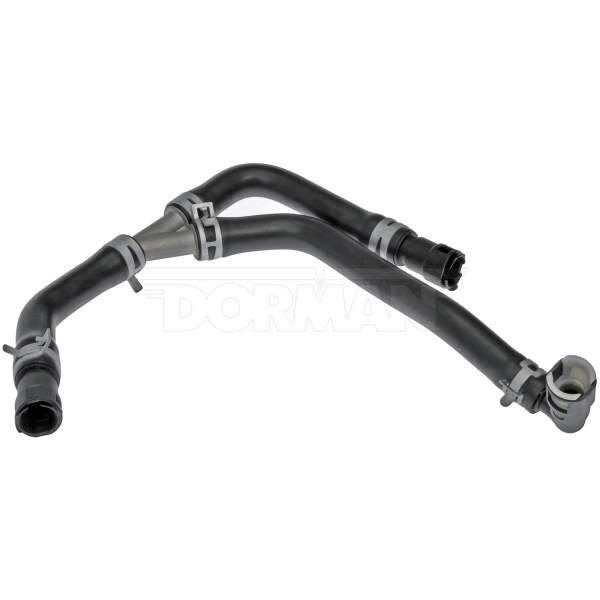

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 3 |
| Color/Finish | Natural/No Finish |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 13" |
| Coolant Hose Material | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included | Not Required |
| Coolant Hose Type | Single I.D. (Inside Diameter) |

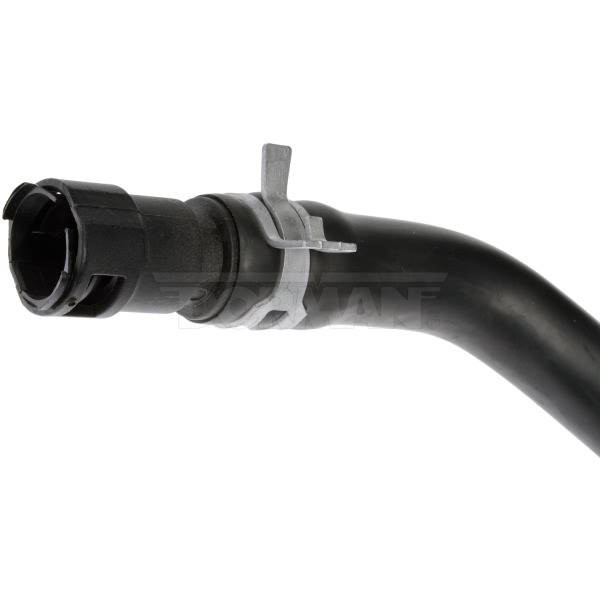

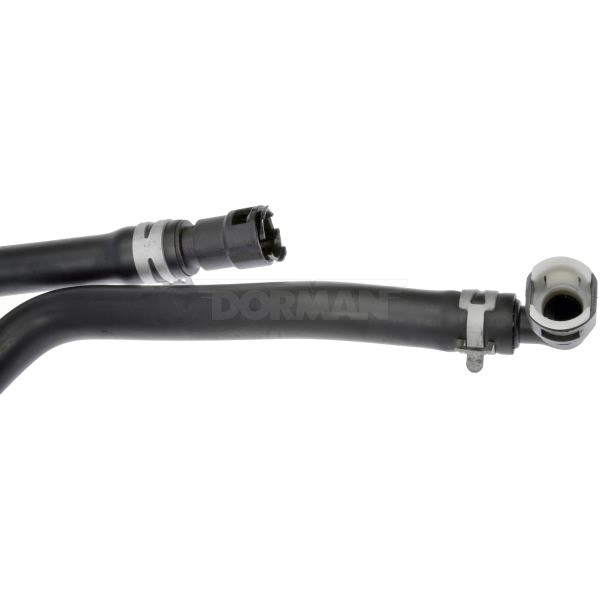

| End 1 Attachment Type | Quick Connect |
| End 2 Attachment Type | Quick Connect |
| End 3 Attachment Type | Quick Connect |
| Grade Type | Standard |
| Hose End (1) Inside Diameter (In) | 0.63" |
| Hose End (1) Outside Diameter (In) | 0.95" |
| Hose End (2) Inside Diameter (In) | 0.63" |
| Hose End (2) Outside Diameter (In) | 0.95" |
| Hose End (3) Inside Diameter (In) | 0.63" |
| Hose End (3) Outside Diameter (In) | 0.95" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 885484841833 |
| OE Part Number | 9L1Z18472A |
| Thermostatically Controlled | No |
| With Clamps | Not Required |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2010 Ford Expedition | All Trims | 8 Cyl 5.4L |
| 2010 Ford Expedition | All Trims | All Engines |
| 2009-2010 Lincoln Navigator | All Trims | 8 Cyl 5.4L |
