Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-591 |

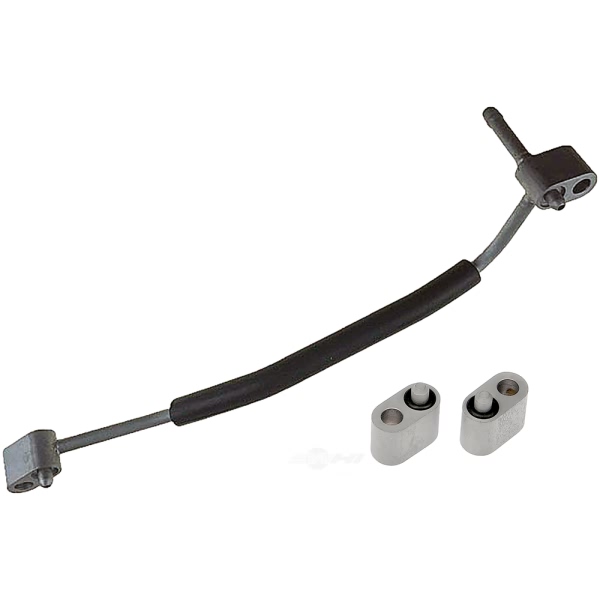

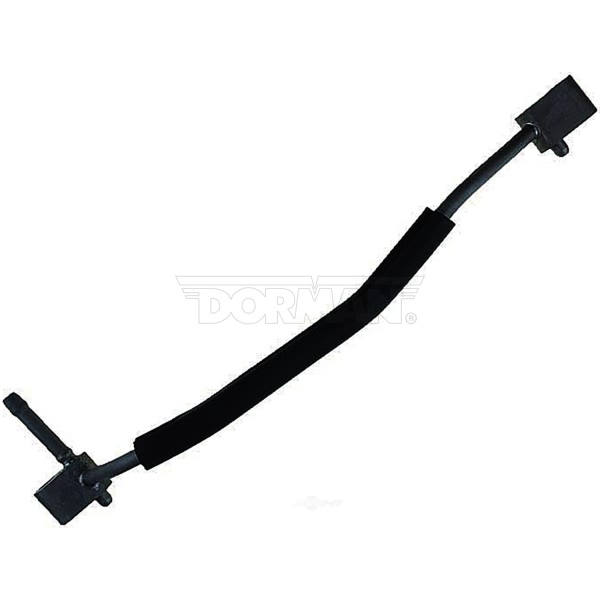

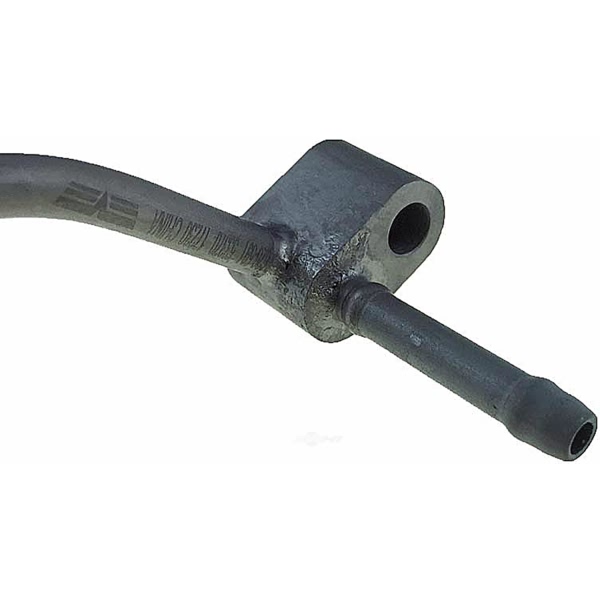

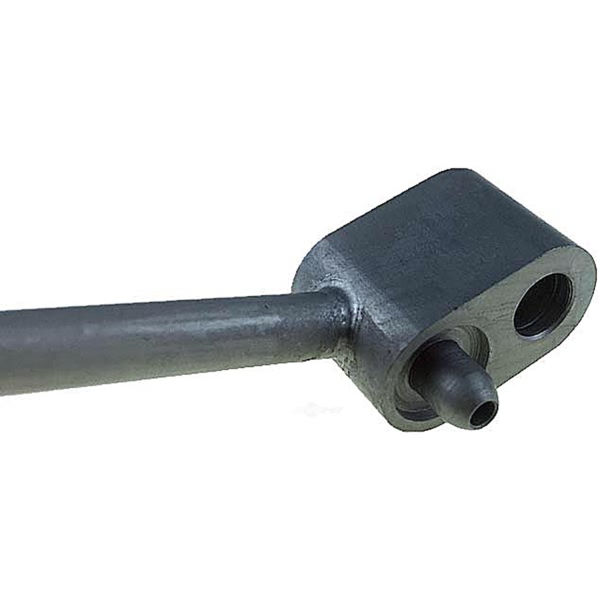

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 1 |
| Color/Finish | Natural |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Length | 11" |
| Coolant Hose Material | Aluminum and Rubber |
| Coolant Hose Protective Sleeve Included | Yes |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Barbed |
| End 2 Attachment Type | Hose |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.155" |
| Hose End (1) Outside Diameter (In) | 0.252" |
| Hose End (2) Inside Diameter (In) | 0.125" |
| Hose End (2) Outside Diameter (In) | 0.232" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 885484876712 |
| OE Part Number | 12605716, 12570675, 12602549 |
| Package Contents | 1 Heater Hose Assembly |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2005-2007 Buick Rainier | All Trims | 8 Cyl 5.3L |
| 2009 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2009-2014 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2008-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2009-2013 Cadillac Escalade EXT | All Trims | 8 Cyl 6.2L |
| 2007-2013 Chevrolet Avalanche | All Trims | 8 Cyl 5.3L |
| 2008-2009 Chevrolet Avalanche | All Trims | 8 Cyl 6.0L |
| 2005-2006 Chevrolet Avalanche 1500 | All Trims | 8 Cyl 5.3L |
| 2011-2014 Chevrolet Cheyenne | All Trims | 8 Cyl 5.3L |
| 2009-2012 Chevrolet Colorado | All Trims | 8 Cyl 5.3L |
