Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-597 |

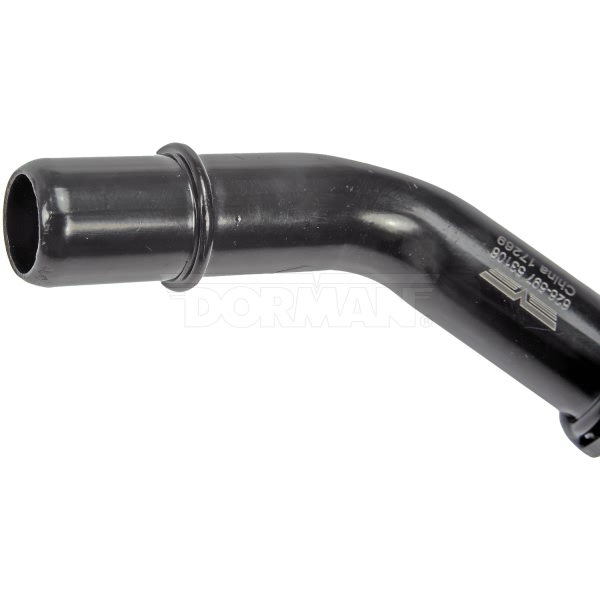

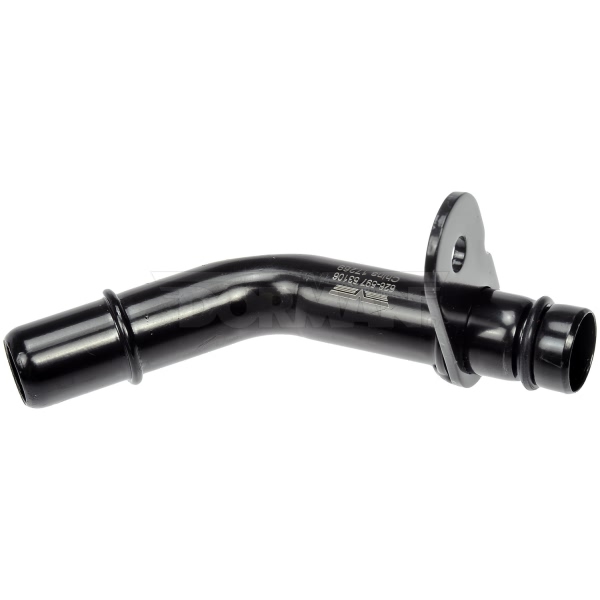

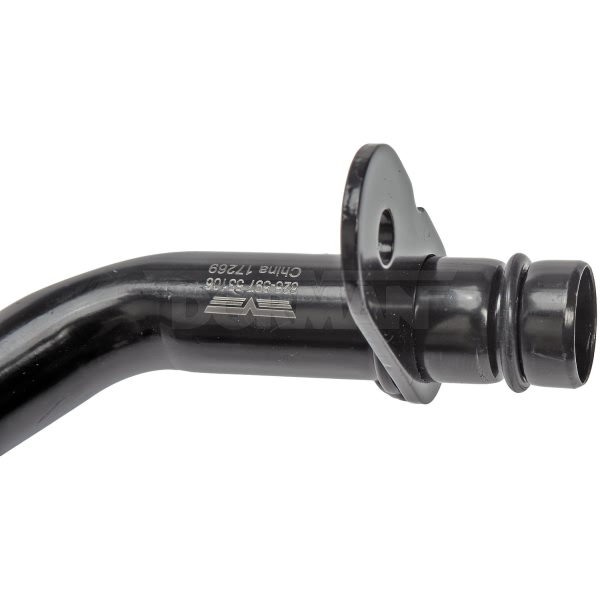

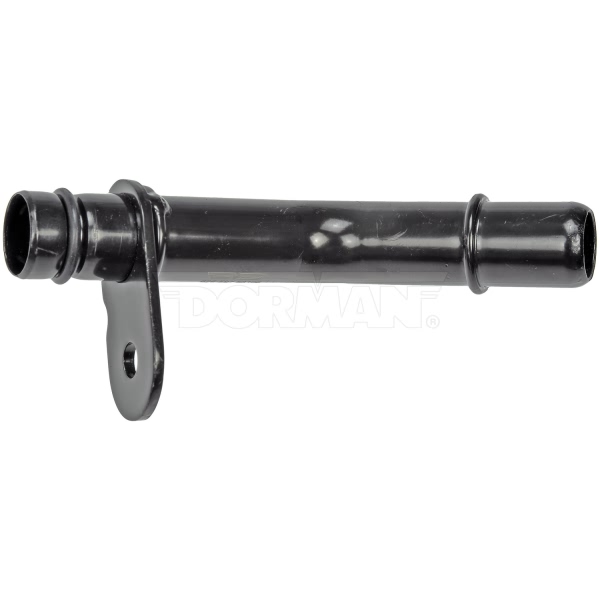

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 2 |
| Color/Finish | Black/Coated |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 5" |
| Coolant Hose Material | Steel |
| Coolant Hose Protective Sleeve Included | Not Required |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Quick Connect |
| End 2 Attachment Type | Flange |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.59" |
| Hose End (1) Outside Diameter (In) | 0.74" |
| Hose End (2) Inside Diameter (In) | 0.63" |
| Hose End (2) Outside Diameter (In) | 0.74" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 885484922068 |
| OE Part Number | BR3Z18696A |
| Thermostatically Controlled | No |
| With Clamps | Not Required |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Ford F-150 | All Trims | 8 Cyl 5.0L |
| 2011-2014 Ford Lobo | All Trims | 8 Cyl 5.0L |
| 2011-2014 Ford Mustang | All Trims | 8 Cyl 5.0L |
| 2011-2014 Lincoln Mark LT | All Trims | 8 Cyl 5.0L |
