Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-627 |

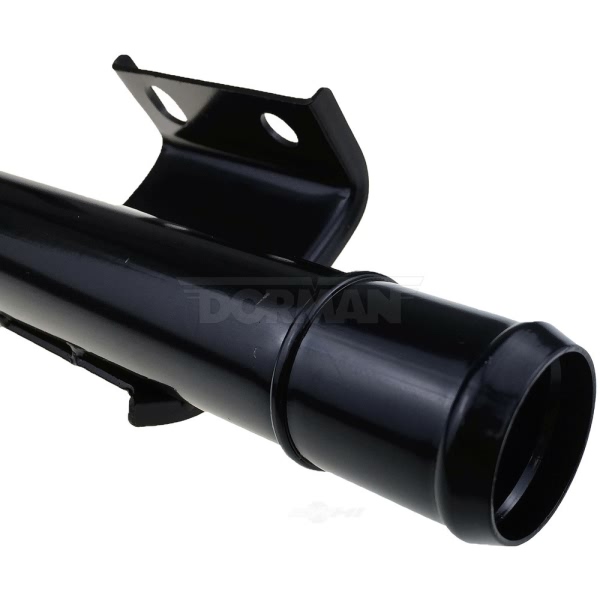

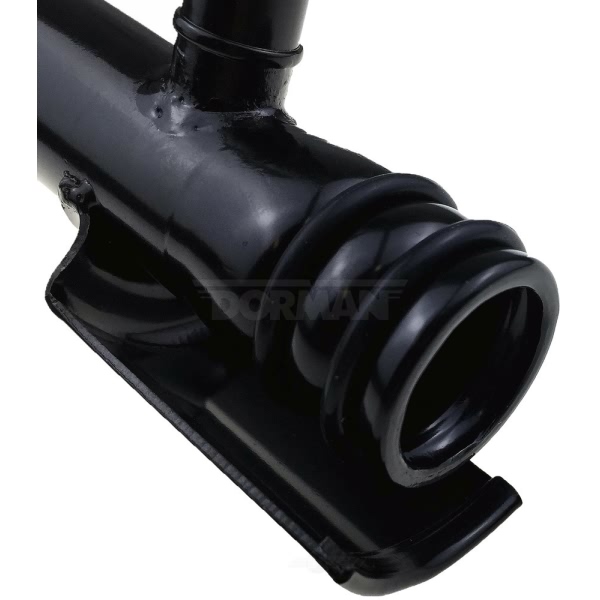

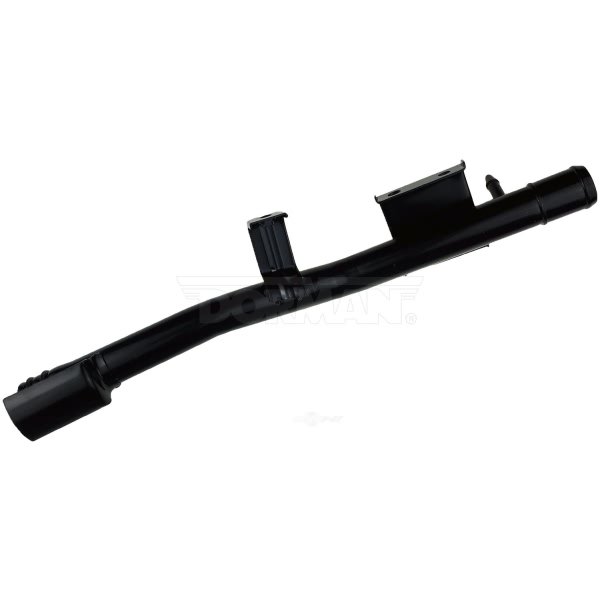

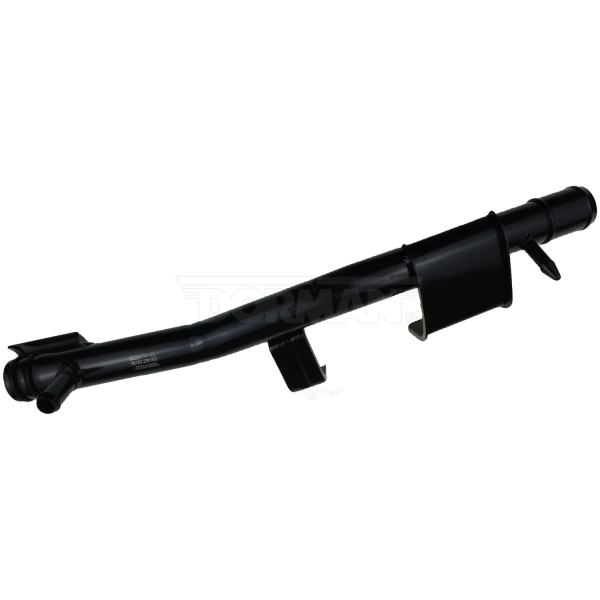

| Part Description | Hvac Heater Hose Assembly |
| Color/Finish | Black/Coated |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Length | 18" |
| Coolant Hose Material | Steel |
| Coolant Hose Protective Sleeve Included | No |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Hose |
| End 2 Attachment Type | Straight |
| End 3 Attachment Type | Hose |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 1.065" |
| Hose End (1) Outside Diameter (In) | 1.357" |
| Hose End (2) Inside Diameter (In) | 1.143" |
| Hose End (2) Outside Diameter (In) | 1.312" |
| Hose End (3) Inside Diameter (In) | 0.467" |
| Hose End (3) Outside Diameter (In) | 0.641" |
| Hose Shape | Straight |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 885484675056 |
| OE Part Number | 1L5Z8592CF |
| Package Contents | 1 Heater Hose Assembly; 2 O-Rings |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2011 Ford Ranger | All Trims | 4 Cyl 2.3L |
