Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-631 |

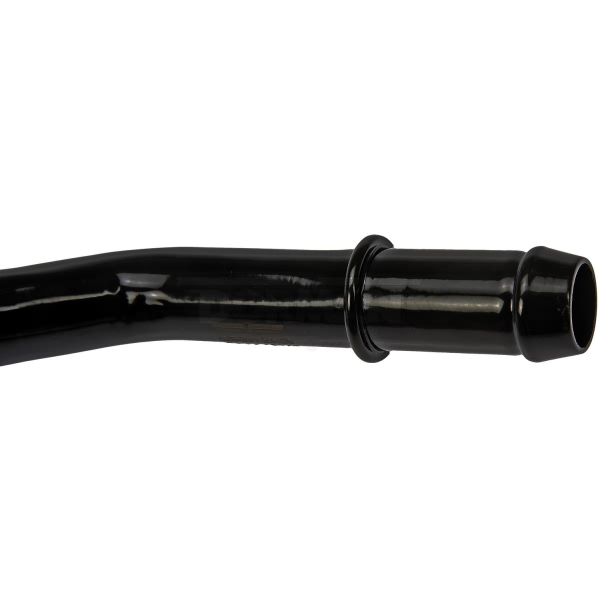

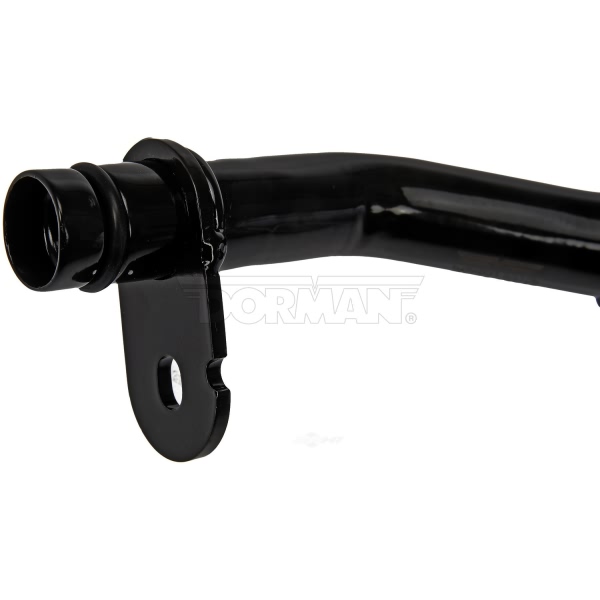

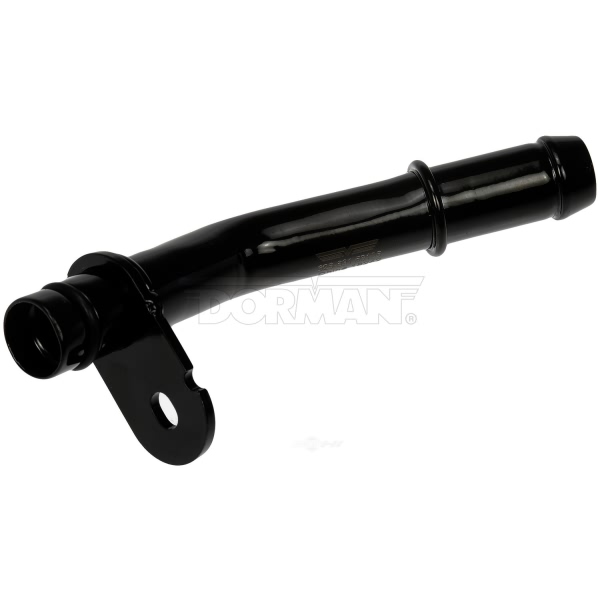

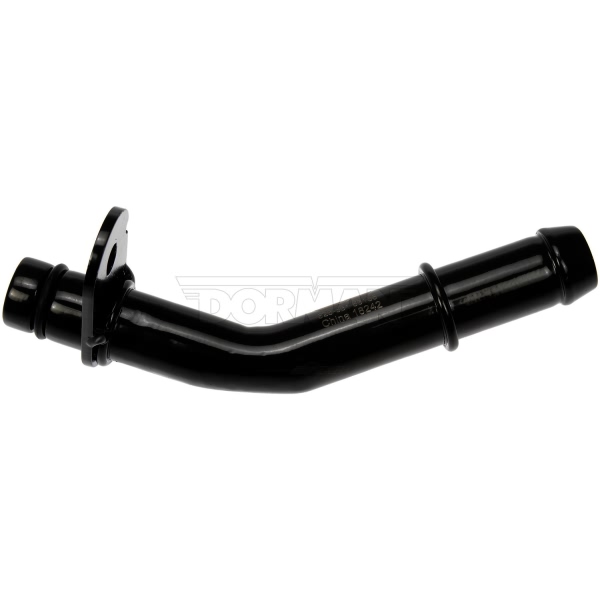

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 1 |
| Color/Finish | Black/Coated |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Length | 5.5" |
| Coolant Hose Material | Aluminum |
| Coolant Hose Protective Sleeve Included | No |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Barbed |
| End 2 Attachment Type | Ring |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.58". |
| Hose End (1) Outside Diameter (In) | 0.74" |
| Hose End (2) Inside Diameter (In) | 0.63" |
| Hose End (2) Outside Diameter (In) | 0.75" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 885484545236 |
| OE Part Number | AC3Z18696A |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017-2018 Ford E-350 Super Duty | All Trims | 8 Cyl 6.2L |
| 2010-2014 Ford F-150 | All Trims | 8 Cyl 6.2L |
| 2011-2018 Ford F-250 Super Duty | All Trims | 8 Cyl 6.2L |
| 2011-2018 Ford F-350 Super Duty | All Trims | 8 Cyl 6.2L |
