Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-632 |

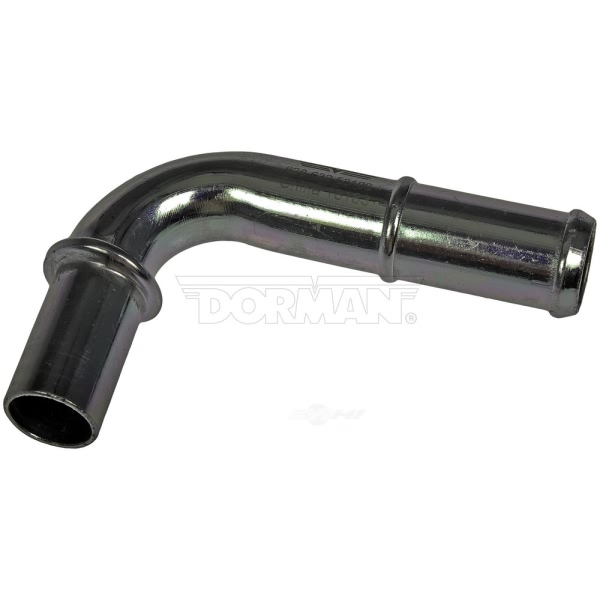

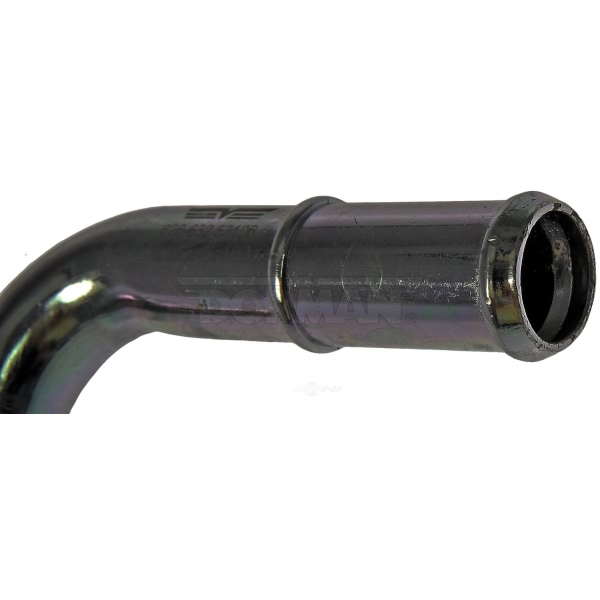

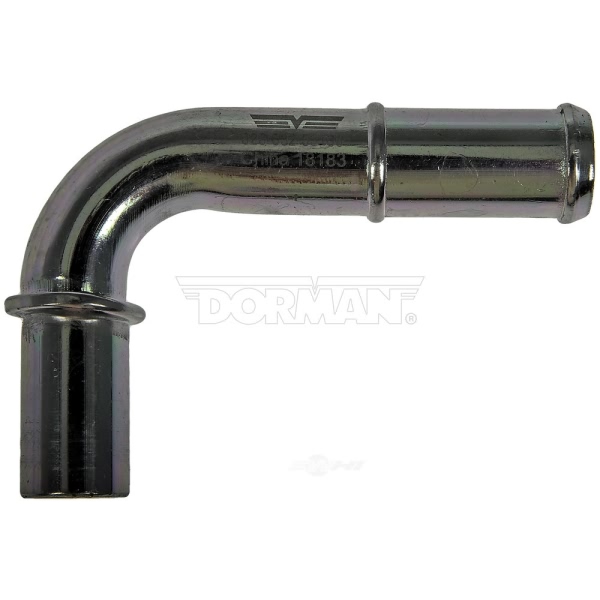

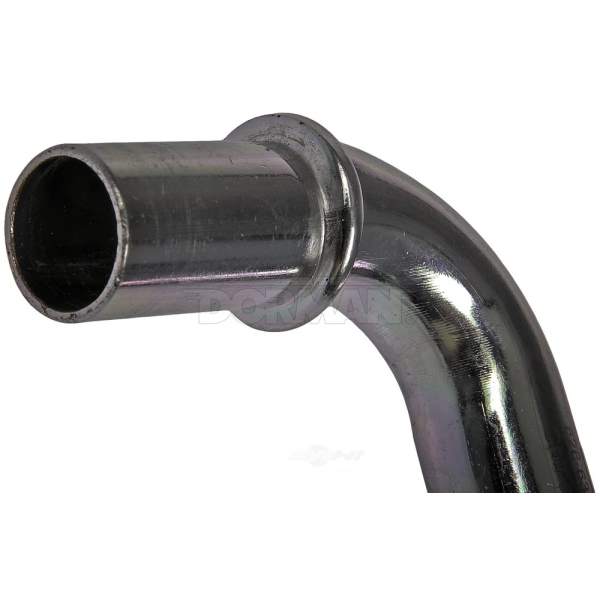

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 1 |
| Color/Finish | Natural |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Length | 3.925" |
| Coolant Hose Material | Aluminum |
| Coolant Hose Protective Sleeve Included | No |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Hose |
| End 2 Attachment Type | Clamp |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.502" |
| Hose End (1) Outside Diameter (In) | 0.629" |
| Hose End (2) Inside Diameter (In) | 0.535" |
| Hose End (2) Outside Diameter (In) | 0.616" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 889245040534 |
| OE Part Number | 1S7Z8597AK |
| Thermostatically Controlled | No |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2018 Ford EcoSport | All Trims | 4 Cyl 2.0L |
| 2012-2015 Ford Edge | All Trims | 4 Cyl 2.0L |
| 2013-2016 Ford Escape | All Trims | 4 Cyl 2.0L |
| 2012-2015 Ford Explorer | All Trims | 4 Cyl 2.0L |
| 2005-2018 Ford Focus | All Trims | 4 Cyl 2.0L |
| 2016-2018 Ford Focus | All Trims | 4 Cyl 2.3L |
| 2013-2016 Ford Fusion | All Trims | 4 Cyl 2.0L |
| 2015-2018 Ford Mustang | All Trims | 4 Cyl 2.3L |
| 2001-2011 Ford Ranger | All Trims | 4 Cyl 2.3L |
| 2013-2017 Ford Taurus | All Trims | 4 Cyl 2.0L |
