Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-640 |

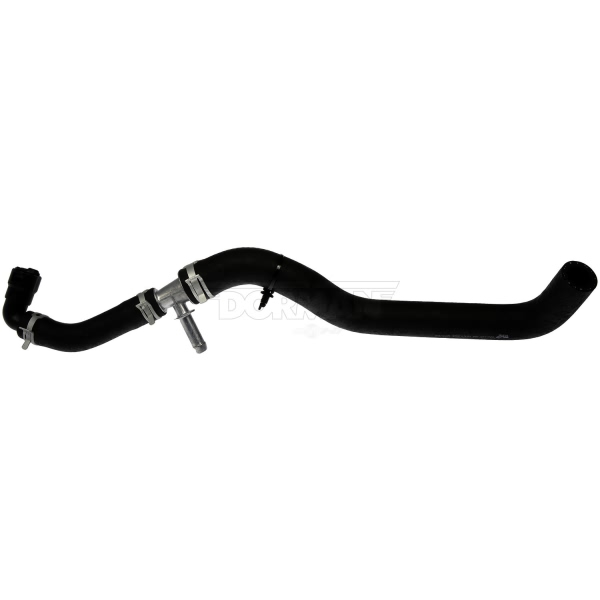

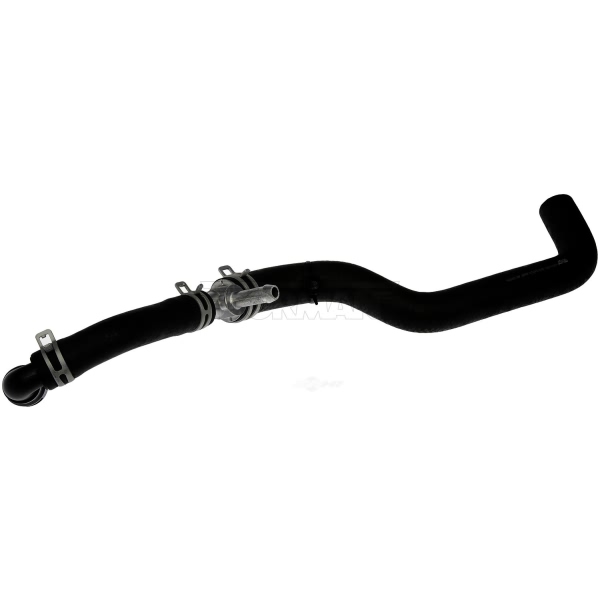

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 2 |
| Color/Finish | Natural, Black, Rubber |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Length | 23" |
| Coolant Hose Material | Aluminum; Rubber |
| Coolant Hose Protective Sleeve Included | No |
| Coolant Hose Type | Branched |

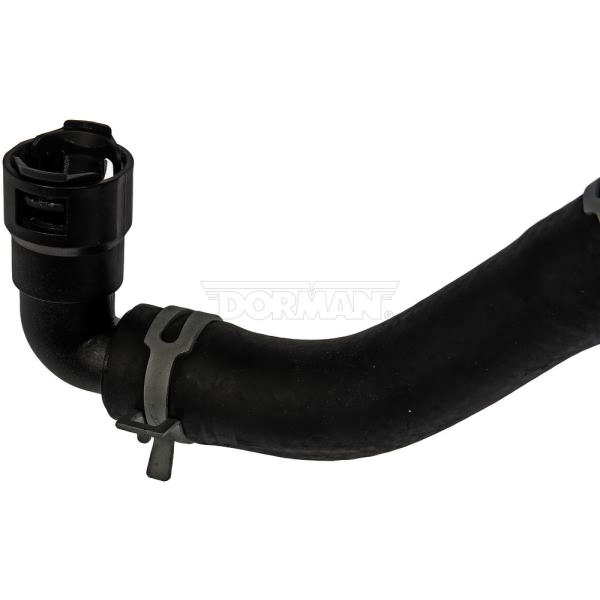

| End 1 Attachment Type | Quick Connect |
| End 2 Attachment Type | Barbed |
| End 3 Attachment Type | Hose |
| Grade Type | Regular |
| Hose End (1) Inside Diameter | 0.999" |
| Hose End (1) Outside Diameter | 1.16" |
| Hose End (2) Inside Diameter | 0.32" |
| Hose End (2) Outside Diameter | 0.5" |
| Hose End (3) Inside Diameter | 0.94" |
| Hose End (3) Outside Diameter | 1.4" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 889245040619 |
| OE Part Number | BC3Z8C471A |
| Thermostatically Controlled | No |
| With Clamps | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2016 Ford F-250 Super Duty | All Trims | 8 Cyl 6.7L |
| 2011-2016 Ford F-350 Super Duty | All Trims | 8 Cyl 6.7L |
