Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-654 |

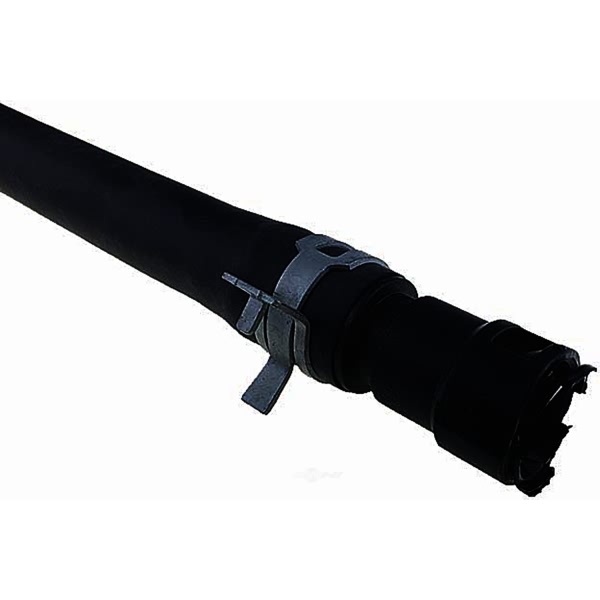

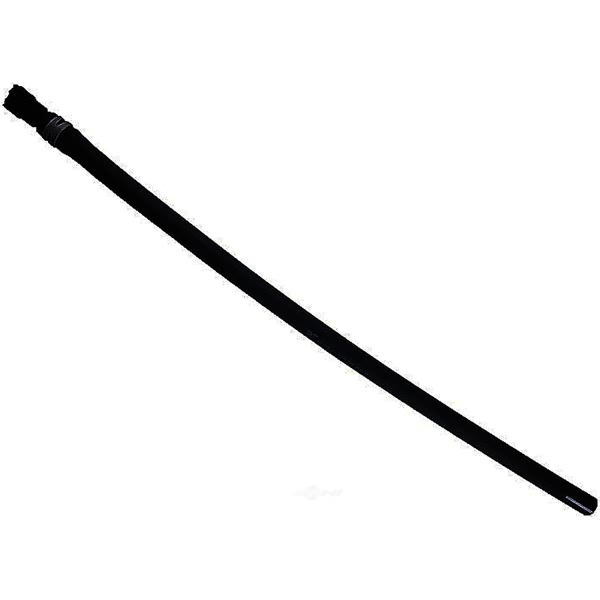

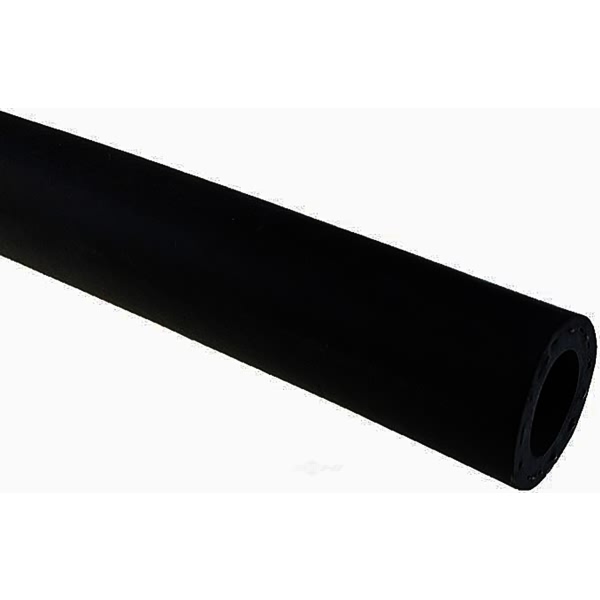

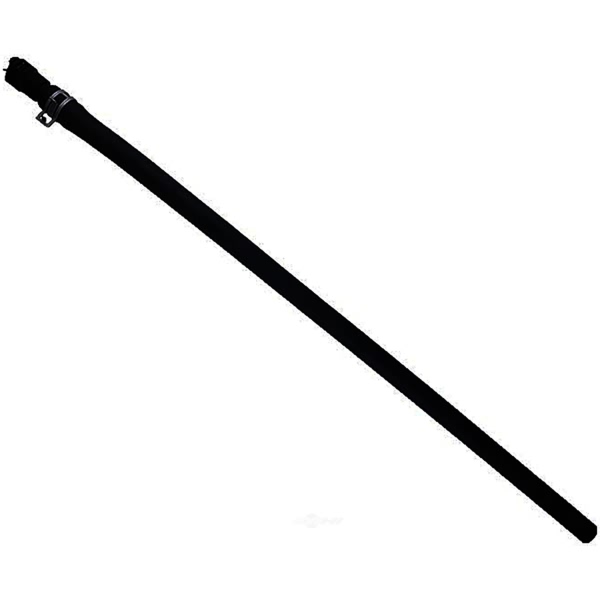

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 1 |
| Color/Finish | Black/Rubber |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No Heat Shield Required |
| Coolant Hose Length | 29" |
| Coolant Hose Material | Plastic; Rubber |
| Coolant Hose Protective Sleeve Included | No |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Quick Connect |
| End 2 Attachment Type | Hose |
| Grade Type | Regular |
| Hose End (1) Inside Diameter (In) | 0.846" |
| Hose End (1) Outside Diameter (In) | 1.048" |
| Hose End (2) Inside Diameter (In) | 0.574" |
| Hose End (2) Outside Diameter (In) | 0.892" |
| Hose Shape | Molded Assembly |
| Maximum Working Pressure (psi) | 100 PSI |
| UPC | 889245197887 |
| OE Part Number | 15895065, 15854958, 22885825 |
| Package Contents | 1 Heater Hose Assembly |
| Thermostatically Controlled | No |
| With Clamps | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2014 Cadillac Escalade | All Trims | 8 Cyl 6.2L |
| 2009-2013 Cadillac Escalade | All Trims | 8 Cyl 6.0L |
| 2007-2014 Cadillac Escalade ESV | All Trims | 8 Cyl 6.2L |
| 2007-2013 Chevrolet Suburban 1500 | All Trims | 8 Cyl 6.0L |
| 2007-2014 Chevrolet Suburban 1500 | All Trims | 8 Cyl 5.3L |
| 2007-2013 Chevrolet Suburban 2500 | All Trims | 8 Cyl 6.0L |
| 2007-2009 Chevrolet Tahoe | All Trims | 8 Cyl 4.8L |
| 2007-2014 Chevrolet Tahoe | All Trims | 8 Cyl 5.3L |
| 2008-2009 Chevrolet Tahoe | All Trims | 8 Cyl 6.2L |
| 2008-2013 Chevrolet Tahoe | All Trims | 8 Cyl 6.0L |
