Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 626-660 |

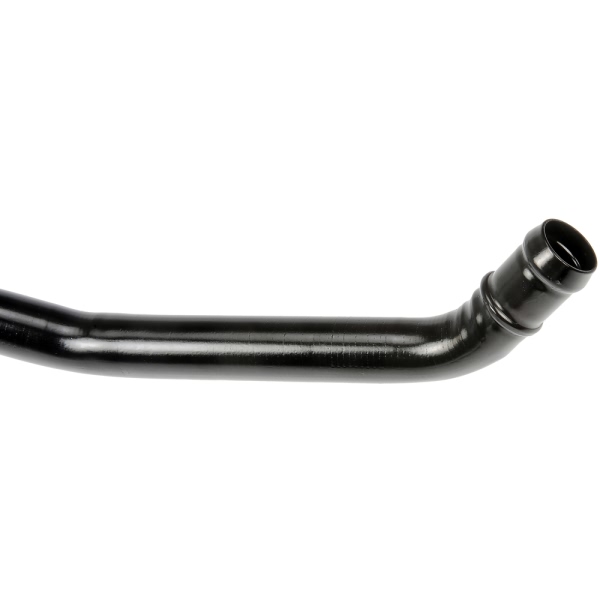

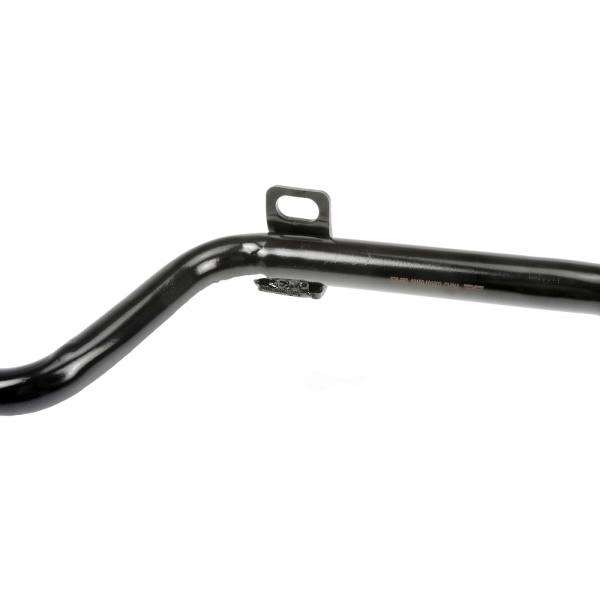

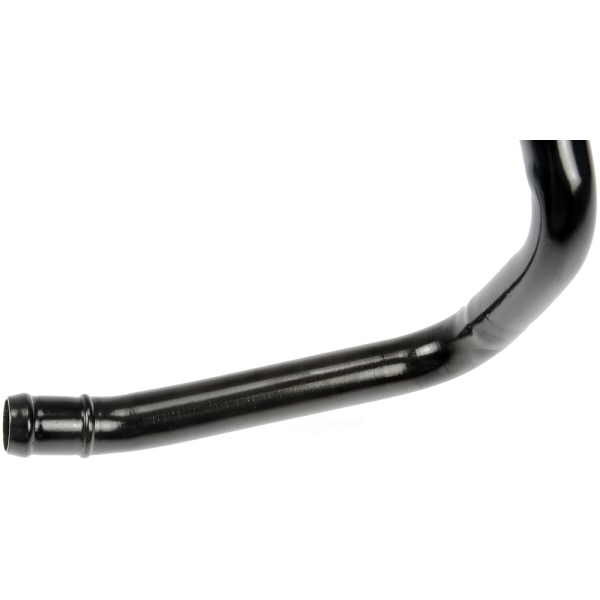

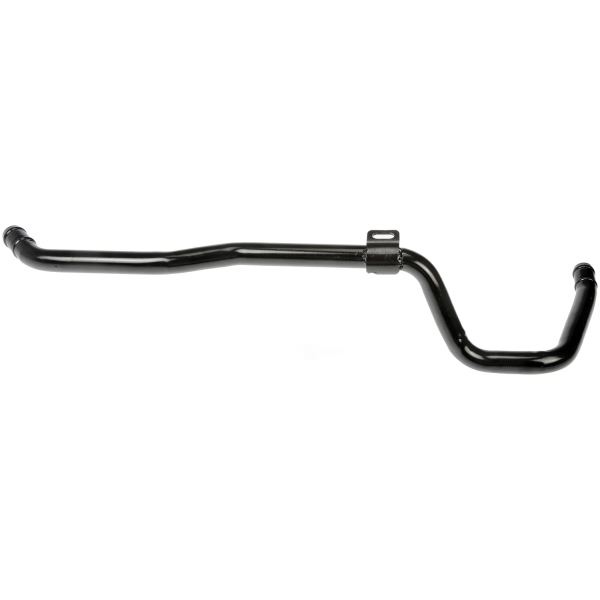

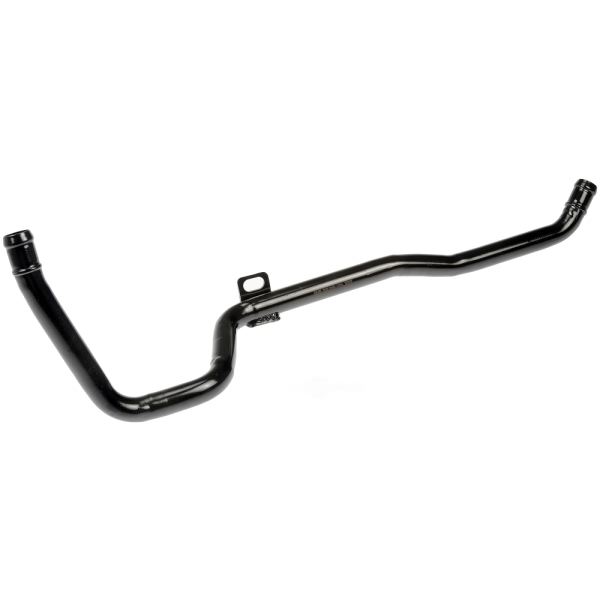

| Part Description | Hvac Heater Hose Assembly |
| Branch Quantity | 1 |
| Centerline Length | 3.329" |
| Color | Black |
| Contains Spring | No |
| Coolant Hose Heat Shield Included | No |
| Coolant Hose Type | Single I.D. (Inside Diameter) |
| End 1 Attachment Type | Straight |
| End 1 Inside Diameter | 0.893" |
| End 2 Attachment Type | Straight |
| End 2 Inside Diameter | 0.957" |
| End 3 Attachment Type | Hose |
| End 3 Inside Diameter | 0.186" |
| Grade Type | Regular |
| Hose End (1) Outside Diameter | 0.893" |
| Hose End (2) Outside Diameter | 0.94" |
| Hose End (3) Outside Diameter | 0.2" |
| Hose Shape | Molded Assembly |
| Material | Carbon Steel |
| Maximum Working Pressure | 100 PSI |
| Protective Sleeve Attached | No |
| Thermostatically Controlled | No |
| UPC | 889245317445 |
| With Clamps | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2009 Dodge Ram 2500 | All Trims | 6 Cyl 5.9L |
| 2007-2009 Dodge Ram 2500 | All Trims | 6 Cyl 6.7L |
| 2006-2007 Dodge Ram 3500 | All Trims | 6 Cyl 5.9L |
| 2007-2009 Dodge Ram 3500 | All Trims | 6 Cyl 6.7L |
| 2008-2009 Dodge Ram 3500 | All Trims | All Engines |
