Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 522-815 |

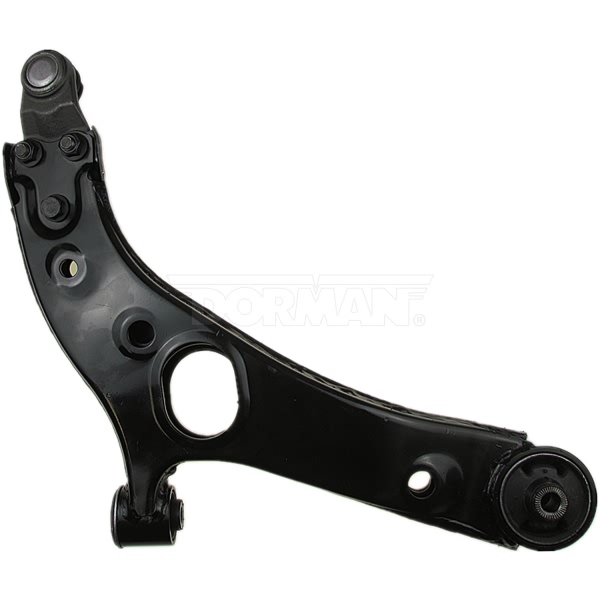

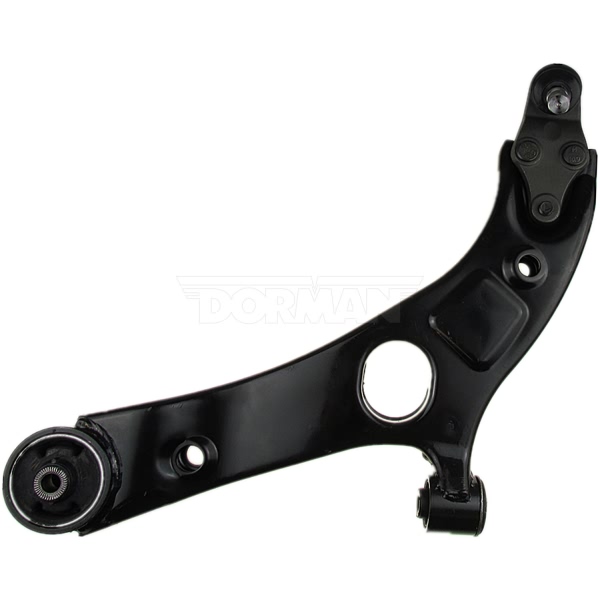

| Part Description | Front Driver Side Lower Non Adjustable Control Arm And Ball Joint Assembly |
| Attachment Type | Bolt-On |
| Ball Joint Stud Type | Pinch Bolt |
| Ball Joint Thread Diameter | 17.97 mm |
| Bushing Material | Rubber |
| Control Arm Type | Stamped |
| Finish | Black |
| Grade Type | Regular |
| Grease Fitting | No |
| Hole Diameter | 12.3 mm; 14.4 mm |
| Length | 445.5 mm |
| Material | Steel |
| Mount Holes Quantity | 2 |
| UPC | 019495999904 |
| OE Part Number | 545003S200 |
| Width | 466.9 mm |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2014 Hyundai Azera | All Trims | All Engines |
| 2011 Hyundai Sonata | GL | All Engines |
| 2011 Hyundai Sonata | GLS | All Engines |
| 2011 Hyundai Sonata | Limited | All Engines |
| 2011 Hyundai Sonata | SE | All Engines |
| 2011-2012 Hyundai Sonata | 2.0T | All Engines |
| 2011-2012 Hyundai Sonata | 2.0T Limited | All Engines |
| 2013 Hyundai Sonata | GL | All Engines |
| 2013-2014 Hyundai Sonata | GLS | All Engines |
| 2013-2014 Hyundai Sonata | Limited | All Engines |
