Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 524-521 |

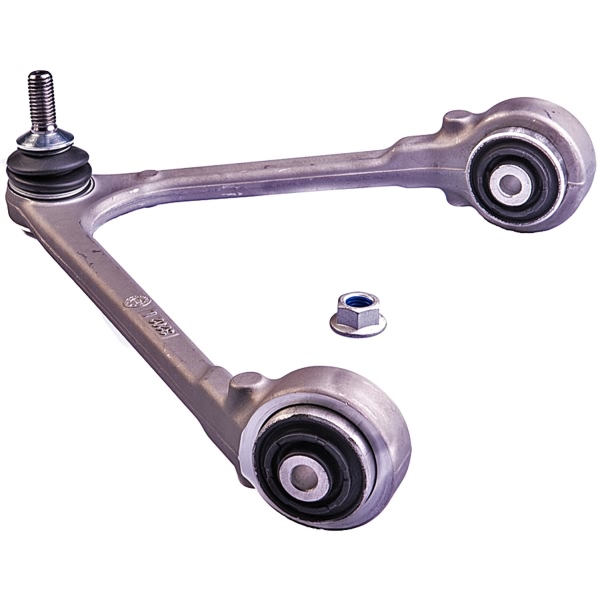

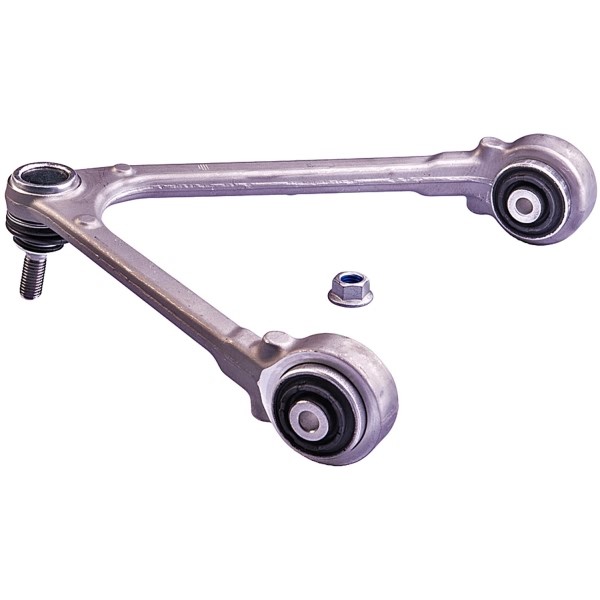

| Part Description | Front Driver Side Upper Non Adjustable Control Arm And Ball Joint Assembly |
| Attachment Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Thread Diameter | 12 mm |
| Bushing Material | Rubber |
| Control Arm Type | Casting/Forged |
| Finish | Silver |
| Grade Type | Regular |
| Grease Fitting | No |
| Hole Diameter | 10.3 mm |
| Length | 260 mm |
| Material | Aluminum |
| Mount Holes Quantity | 2 |
| UPC | 885484410220 |
| Width | 320 mm |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2019 Jaguar XJ | All Trims | All Engines |
| 2014-2017 Jaguar XJR | All Trims | All Engines |
| 2018-2019 Jaguar XJR575 | All Trims | All Engines |
