Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 698-411 |

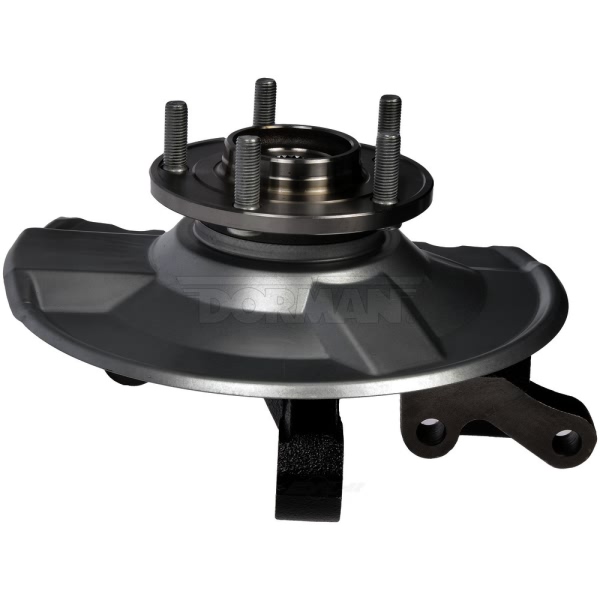

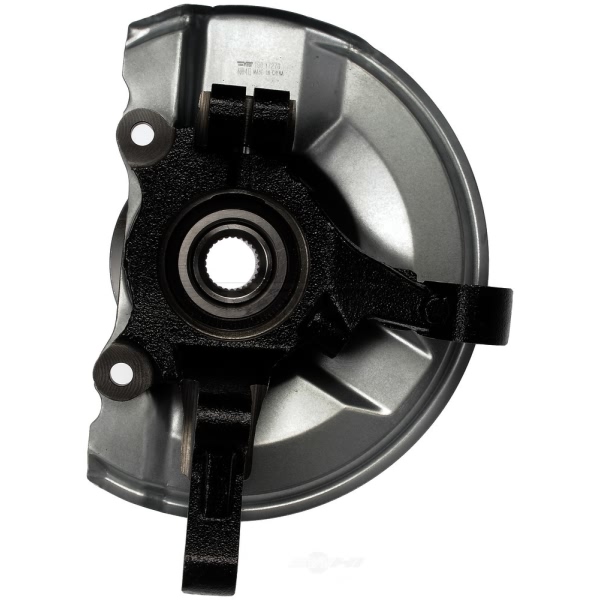

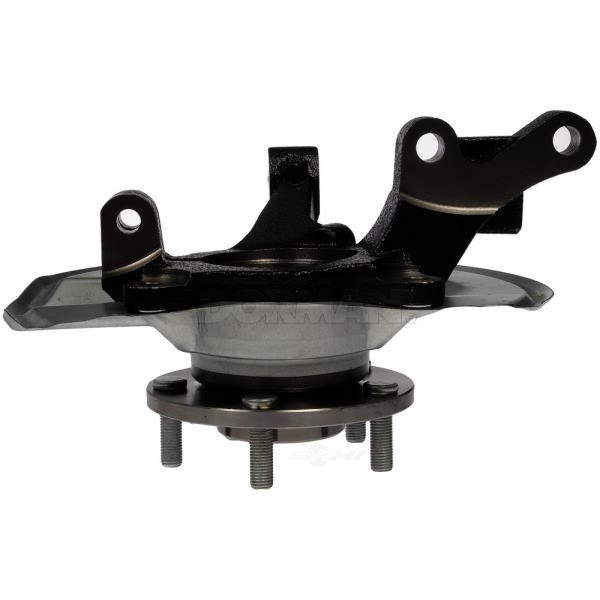

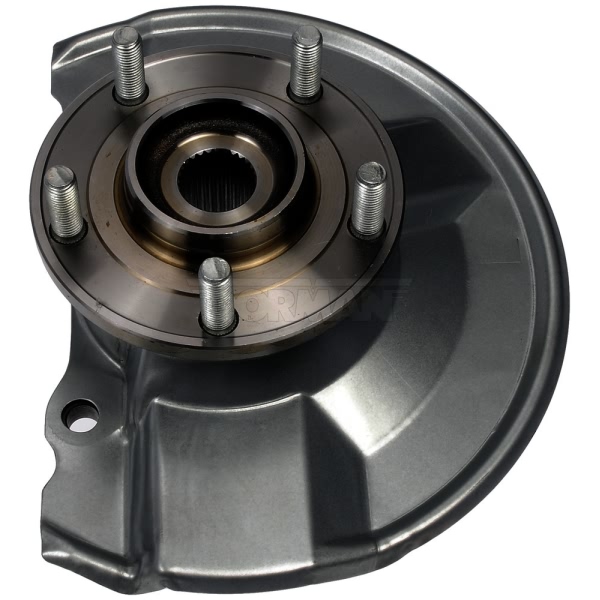

| Part Description | OE Solutions Front Driver Side Wheel Bearing And Hub Assembly |
| Anti Lock Brake Sensor Included | Yes |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring |
| Bolt Circle Diameter | 4.5 In. |
| Brake Pilot Diameter | 2.71 In. |
| Connector Quantity | 0 |
| Flange Bolt Hole Diameter | 0.429 In. |
| Flange Bolt Hole Quantity | 7 |
| Flange Bolts Included | Yes |
| Flange Diameter | 5.51 In. |
| Flange Included | Yes |
| Flange Offset | 1.69 In. |
| Flange Shape | Circular |
| Hub Pilot Diameter | 0 |

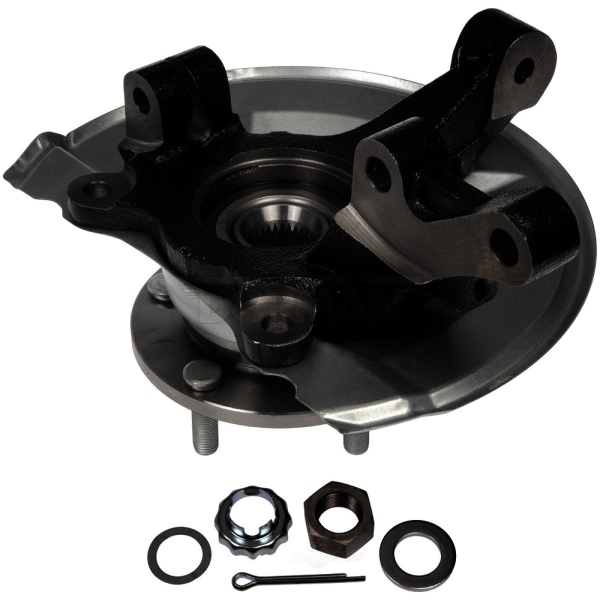

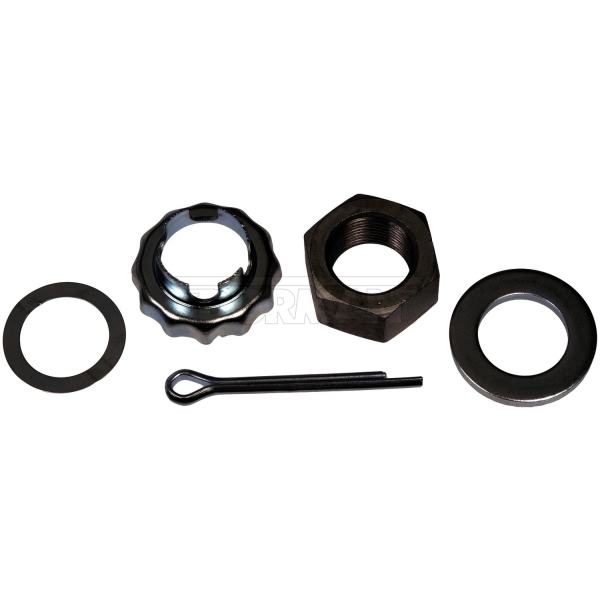

| Package Contents | Knuckle, Backing Plate, Hub, Bearing, Axle Nut |
| Spline Quantity | 28 |
| UPC | 885484291942 |
| Wheel Pilot Diameter | 2.673 In. |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | M12 X 1.25 |
| Wheel Studs Included | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2007-2012 Dodge Caliber | All Trims | All Engines |
| 2007-2017 Jeep Compass | All Trims | All Engines |
| 2007-2017 Jeep Patriot | All Trims | All Engines |
