Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 698-427 |

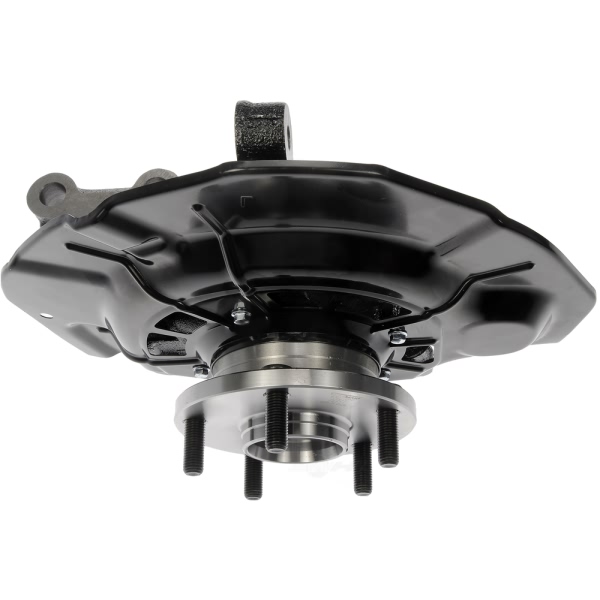

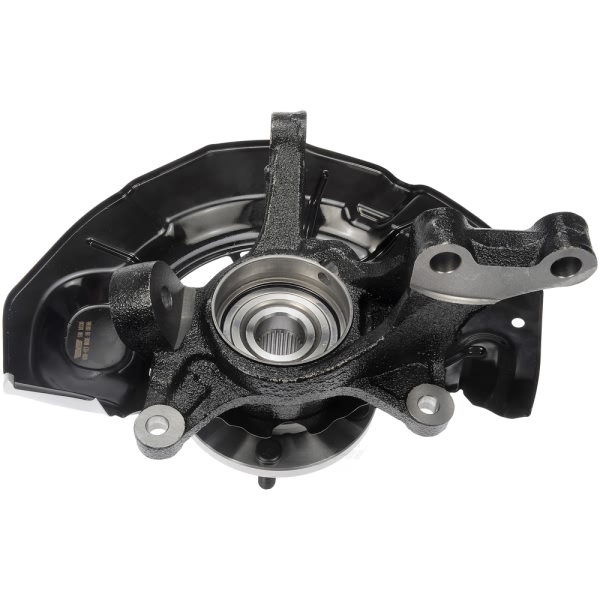

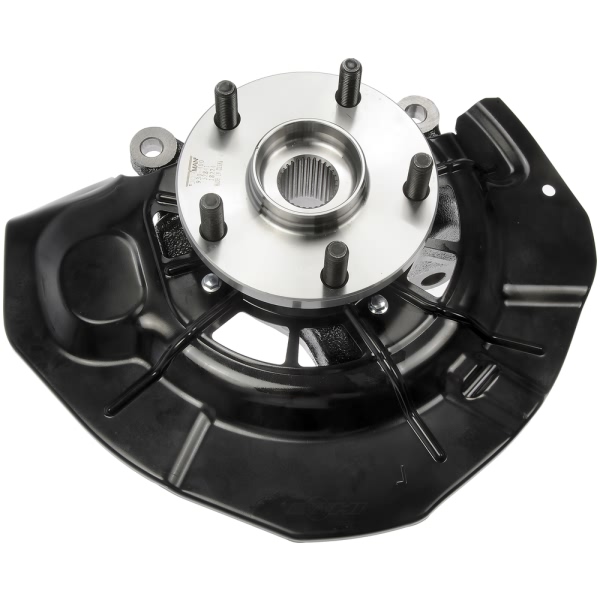

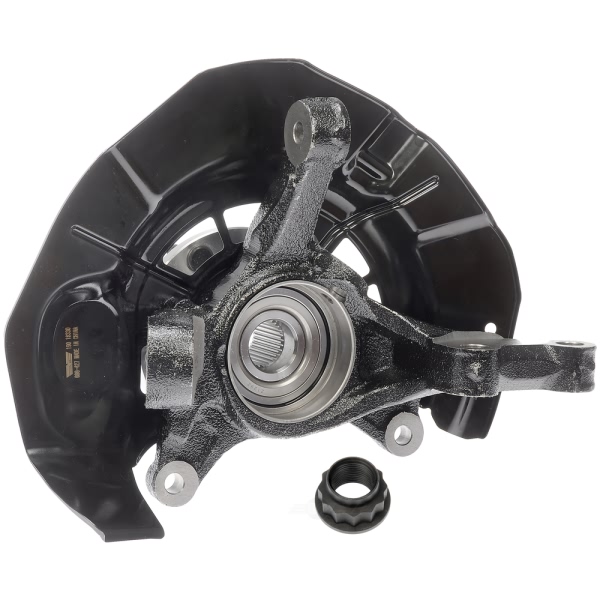

| Part Description | OE Solutions Front Driver Side Driver Side Loaded Knuckle |
| Anti Lock Brake Sensor Included | No |
| Anti Lock Braking System | No |
| Bolt Circle Diameter | 114.3 mm |
| Brake Pilot Diameter | 60 mm |
| Flange Bolt Hole Diameter | 114.3 mm |
| Flange Bolt Hole Quantity | 5 |
| Flange Bolts Included | Yes |
| Flange Diameter | 62 mm |
| Flange Included | Yes |
| Flange Offset | 6 mm |
| Flange Shape | Circular |
| Hub Pilot Diameter | 34 mm |
| Spline Quantity | 30 |
| UPC | 889245444967 |
| Wheel Pilot Diameter | 54 mm |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 12 mm |
| Wheel Studs Included | Yes |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2006 Lexus RX330 | All Trims | All Engines |
| 2007-2009 Lexus RX350 | All Trims | All Engines |
| 2006-2008 Lexus RX400h | All Trims | All Engines |
| 2006-2007 Toyota Highlander | Hybrid | 6 Cyl 3.3L |
| 2006-2007 Toyota Highlander | Hybrid Limited | 6 Cyl 3.3L |
