Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 697-560 |

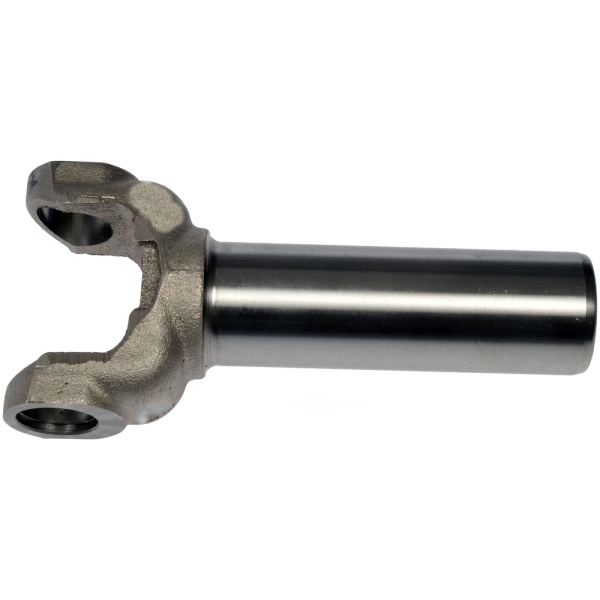

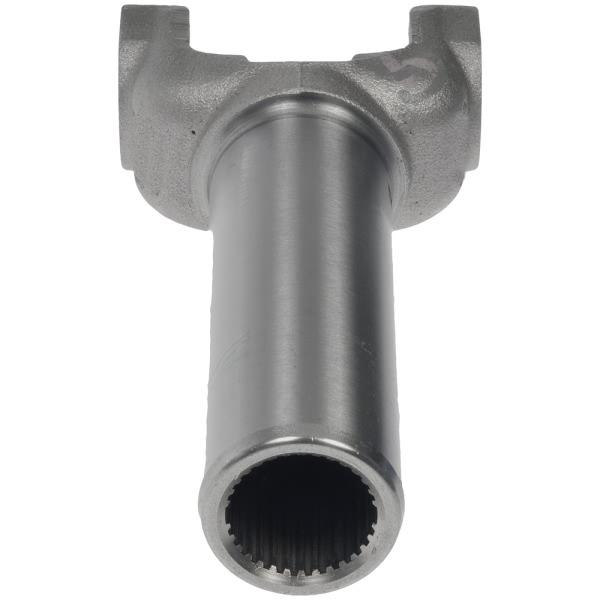

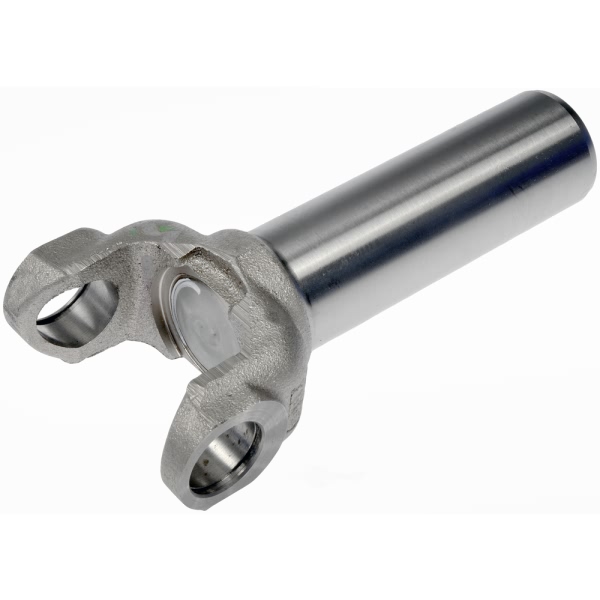

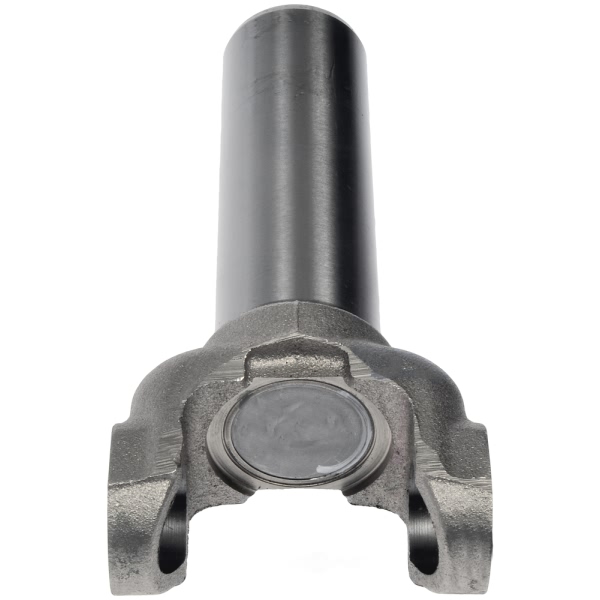

| Part Description | OE Solutions Drive Shaft Slip Yoke |
| Bearing Cap(s) Included | No |
| Bearing Strap(s) Included | No |
| Grade Type | Regular |
| Grease Fitting Included | No |
| Length Axis 1 | 3.89" |
| Material | Steel |
| UPC | 037495173513 |
| OE Part Number | 22944357, 22983106, 23251196, 26058068, 7839467, 88964470 |
| Overall Length (In) | 8.87" |
| Package Contents | 1 Slip Yoke |
| Shaft Diameter | 1.89" |
| Shaft Included | No |
| Shaft Length | 5.57" |
| Spline Inside Diameter | 1.38" |
| Spline Quantity | 30 |
| U Bolt(s) Included | No |
| U Joint Bearing Cap Diameter Axis 1 | 1.19" |
| Universal Joint Style | Outside |
| Universal Joint(s) Included | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009-2015 Cadillac Escalade | All Trims | All Engines |
| 2009-2014 Cadillac Escalade ESV | All Trims | All Engines |
| 2009-2013 Cadillac Escalade EXT | All Trims | All Engines |
| 2007-2013 Chevrolet Avalanche | All Trims | All Engines |
| 2003-2014 Chevrolet Express 1500 | All Trims | All Engines |
| 1988-1995 Chevrolet K1500 | All Trims | All Engines |
| 1994-1999 Chevrolet K1500 Suburban | All Trims | All Engines |
| 1988-2000 Chevrolet K2500 | All Trims | All Engines |
| 1992-1999 Chevrolet K2500 Suburban | All Trims | All Engines |
| 1988-2000 Chevrolet K3500 | All Trims | All Engines |
