Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 524-504 |

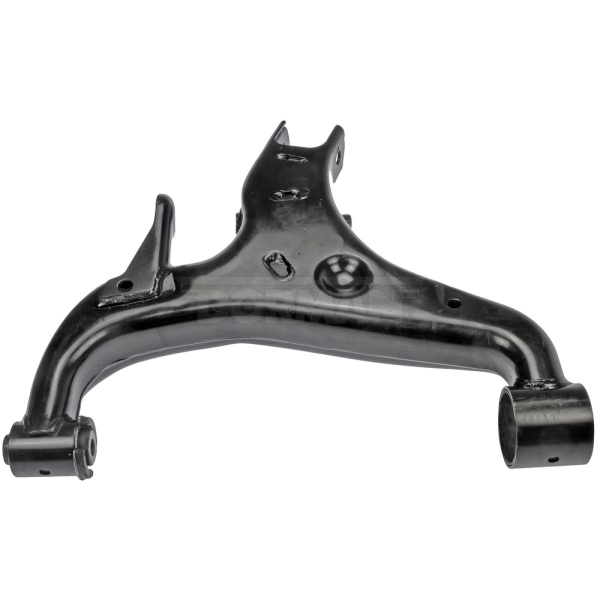

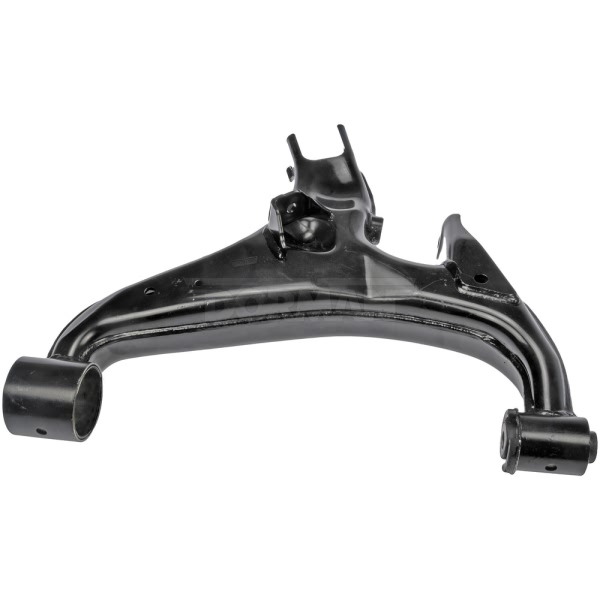

| Part Description | Rear Passenger Side Lower Control Arm |
| Adjustable | No |
| Ball Joint Included | No |
| Ball Joint Installed | No |
| Ball Joint Mounting Type | Welded |
| Ball Joint Stud Type | Threaded |
| Bushing Color | Black |
| Bushing Inside Diameter | 14.3 mm |
| Bushing Length | 92 mm |
| Bushing Material | Rubber |
| Bushing Outside Diameter | 39.6 mm |
| Bushing Quantity | 1 |
| Bushings Included | Yes |
| Color | Black |
| Construction | Stamped |
| End 2 Type | Press In |
| Finish | Coated |
| Grease Fitting Included | No |
| Length | 262.5 |
| Linkage End Type | Bushing |
| Material | Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| UPC | 885484415379 |
| OE Part Number | LR019977 |
| Overall Length | 262.5 mm |
| Package Contents | Suspension Control Arm |
| Pre-Greased | No |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006-2013 Land Rover Range Rover Sport | All Trims | All Engines |
