Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 977-017 |

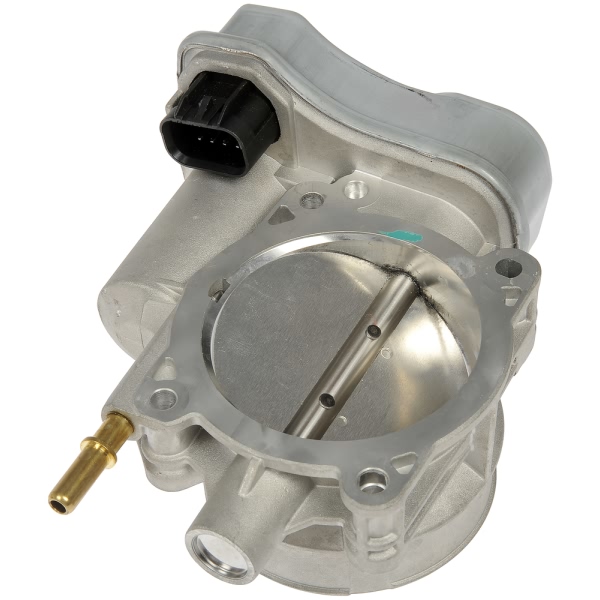

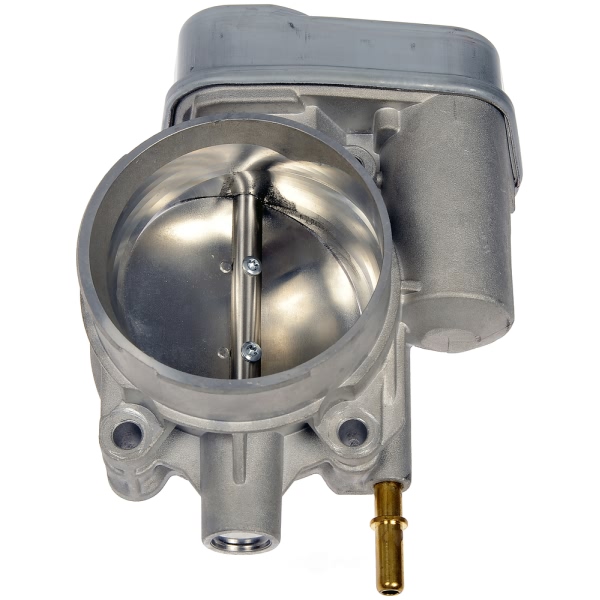

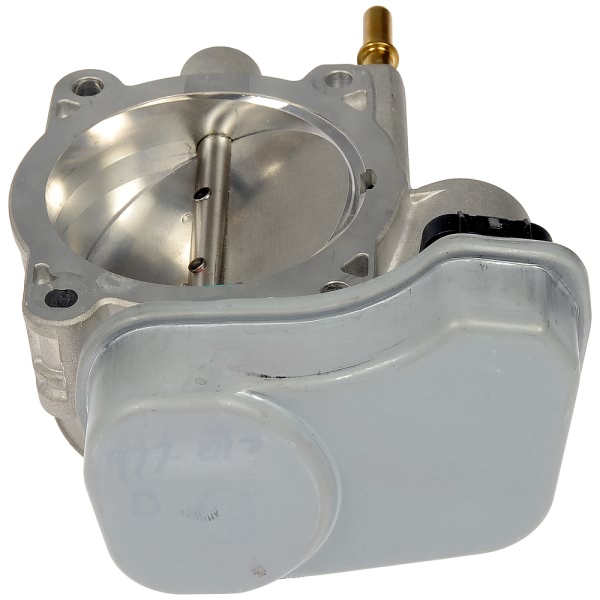

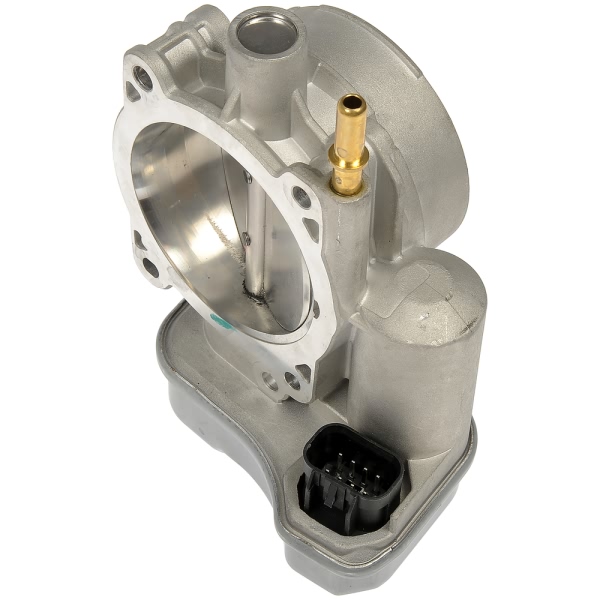

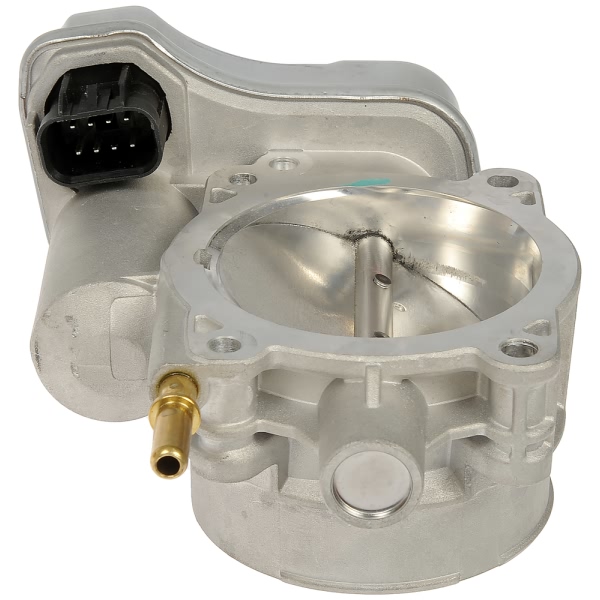

| Part Description | Throttle Body Assemblies |
| Adjustable | No |
| Bore Diameter | 3.031" |
| Connector/Terminal Type | Blade |
| Electrical Connection Type | Connector |
| Fuel Injectors Included | No |
| Fuel System Type | Gas |
| Gasket or Seal Included | No |
| Housing Material | Aluminum |
| Idle Air Control Motor Included | No |
| Inlet Diameter | 3.031" |
| Inlet Quantity | 1 |
| Inlet Type | Non-Flanged |
| Installation Hardware Included | No |
| Outlet Diameter | 3.031" |
| Outlet Quantity | 1 |
| Outlet Type | Flanged |
| UPC | 019495277224 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2004-2007 Buick Rainier | All Trims | 6 Cyl 4.2L |
| 2004-2006 Chevrolet Colorado | All Trims | 5 Cyl 3.5L |
| 2007 Chevrolet Colorado | All Trims | 5 Cyl 3.7L |
| 2006-2007 Chevrolet Impala | All Trims | 8 Cyl 5.3L |
| 2006-2007 Chevrolet Monte Carlo | All Trims | 8 Cyl 5.3L |
| 2002-2007 Chevrolet Trailblazer | All Trims | 6 Cyl 4.2L |
| 2003-2006 Chevrolet Trailblazer EXT | All Trims | 6 Cyl 4.2L |
| 2004-2006 GMC Canyon | All Trims | 5 Cyl 3.5L |
| 2007 GMC Canyon | All Trims | 5 Cyl 3.7L |
| 2002-2007 GMC Envoy | All Trims | 6 Cyl 4.2L |
