Check if it fits by entering your vehicle info| Brand | Dorman |
| Part Number | 977-313 |

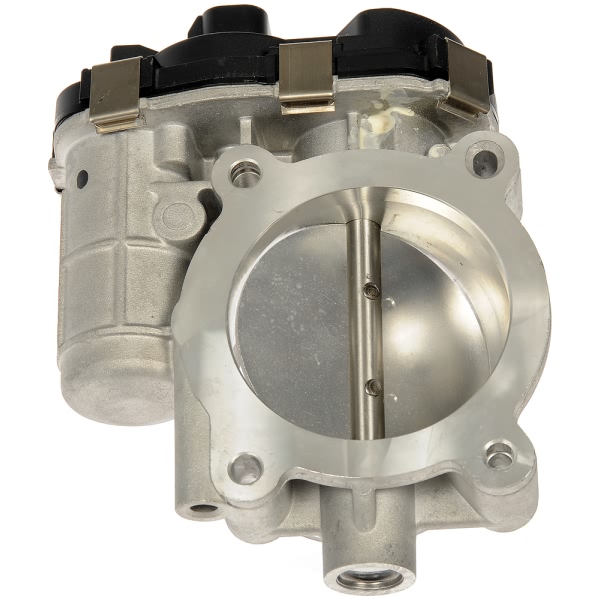

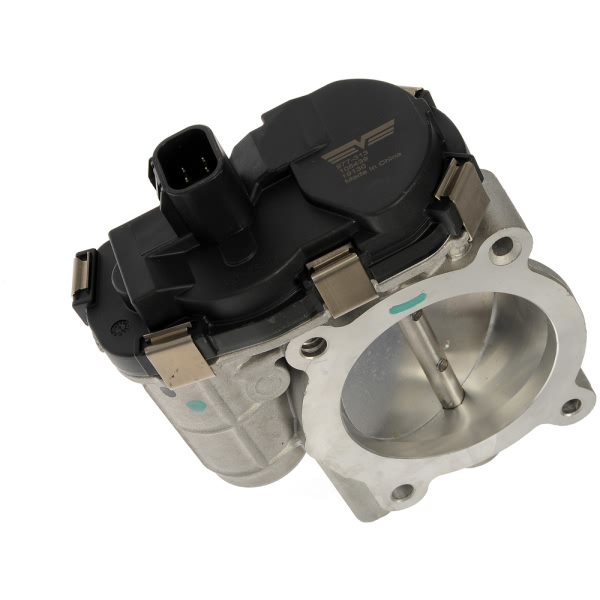

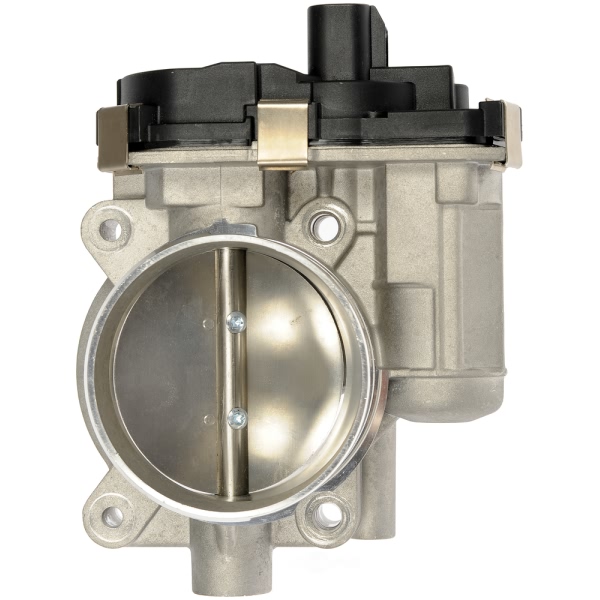

| Part Description | Throttle Body Assemblies |
| Adjustable | No |
| Bore Diameter | 78 mm |
| Connector/Terminal Type | Pin |
| Electrical Connection Type | Connector |
| Fuel Injectors Included | No |
| Fuel System Type | Gas |
| Gasket or Seal Included | No |
| Housing Material | Aluminum |
| Idle Air Control Motor Included | Yes |
| Inlet Diameter | 73.5 mm |
| Inlet Quantity | 1 |
| Inlet Type | Flanged |
| Installation Hardware Included | No |
| Outlet Diameter | 71.5 mm |
| Outlet Quantity | 1 |
| Outlet Type | Flanged |
| UPC | 019495280279 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2008-2014 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
| 2009-2014 Chevrolet Express Cargo | All Trims | 6 Cyl 4.3L |
| 2008-2012 Chevrolet Malibu | All Trims | 6 Cyl 3.6L |
| 2007-2013 Chevrolet Silverado 1500 | All Trims | 6 Cyl 4.3L |
| 2008-2014 GMC Savana 1500 | All Trims | 6 Cyl 4.3L |
| 2007-2013 GMC Sierra 1500 | All Trims | 6 Cyl 4.3L |
| 2007-2009 Pontiac G6 | All Trims | 6 Cyl 3.6L |
| 2008-2009 Pontiac G8 | All Trims | 6 Cyl 3.6L |
| 2007-2009 Saturn Aura | All Trims | 6 Cyl 3.6L |
