Vehicle Specific
Check if it fits by entering your vehicle info| Brand | DuraGo |
| Part Number | BD80000 |

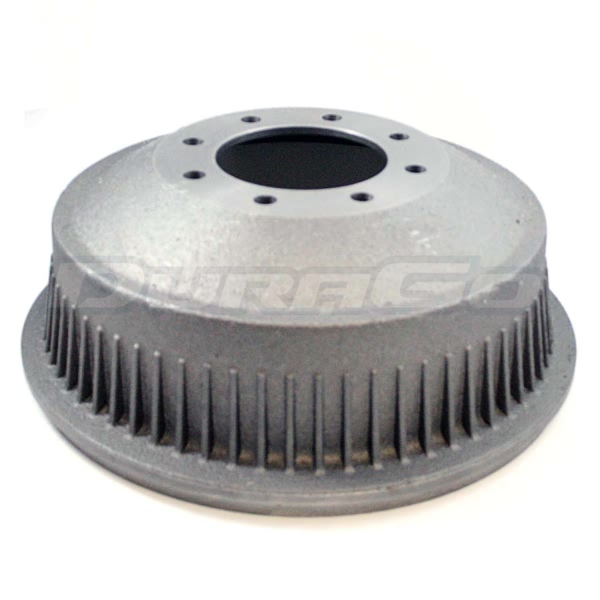

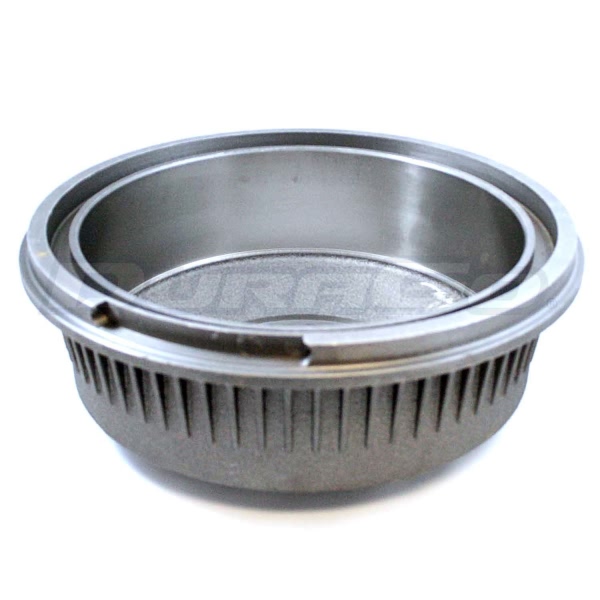

| Part Description | Rear Brake Drum |
| Abs Sensor Ring Includes | No |
| Bolt Circle Diameter | 165.1mm (6.5") |
| Bolt Hole Diameter | 15.6mm (0.61") |
| Bolt Hole Quantity | 8 |
| Brake Surface Width | 100.3mm (3.95") |
| Center Hole Diameter | 122.8mm (4.83") |
| Construction | Full Cast |
| Drum Type | Floating |
| Height | 159.9mm (6.30") |
| Maximum Diameter | 332.49mm (13.09") |
| Nominal Diameter | 330.2mm (13") |
| Outside Diameter | 417.5mm (16.44") |
| Type | Plain Cooling Fins |
| UPC | 756632107661 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1994-1996 Chevrolet C1500 Suburban | All Trims | All Engines |
| 1997-2000 Chevrolet C2500 | All Trims | All Engines |
| 1992-1999 Chevrolet C2500 Suburban | All Trims | All Engines |
| 1990-2000 Chevrolet C3500 | All Trims | All Engines |
| 1996-2002 Chevrolet Express 2500 | All Trims | All Engines |
| 1996-2002 Chevrolet Express 3500 | All Trims | All Engines |
| 1996 Chevrolet G30 | All Trims | All Engines |
| 1992-1999 Chevrolet K2500 Suburban | All Trims | All Engines |
| 1994-1995 Chevrolet K3500 | All Trims | All Engines |
| 1997-2000 Chevrolet K3500 | All Trims | All Engines |
