Check if it fits by entering your vehicle info| Brand | DuraGo |
| Part Number | BD80020 |

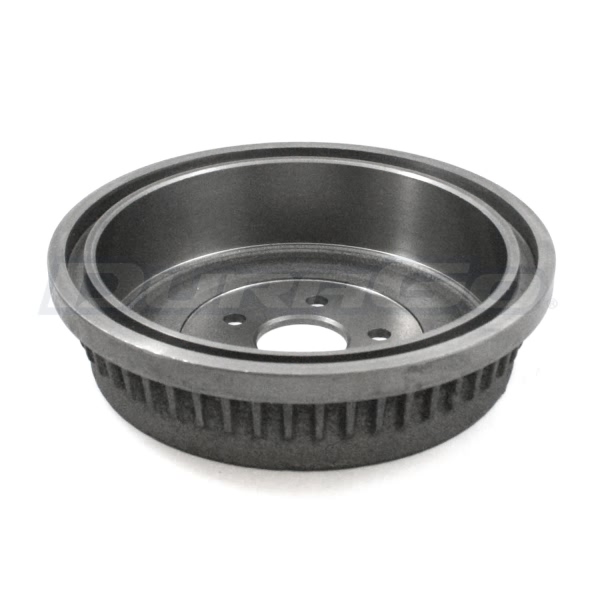

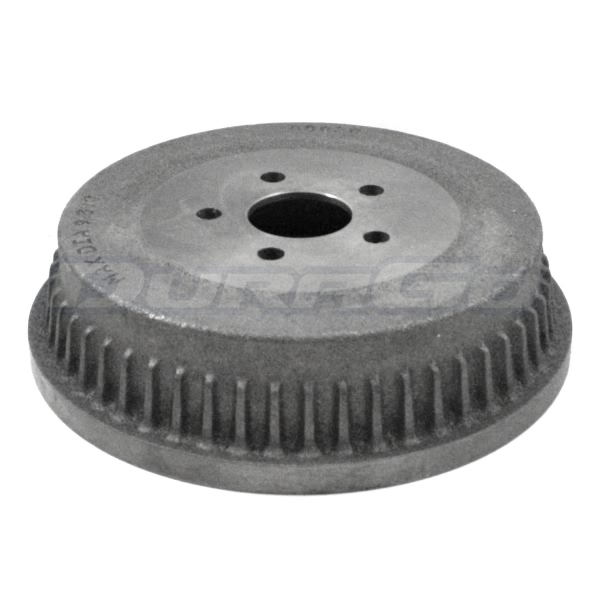

| Part Description | Rear Brake Drum |
| Abs Sensor Ring Includes | No |
| Bolt Circle Diameter | 100mm (3.94") |
| Bolt Hole Diameter | 14.5mm (0.57") |
| Bolt Hole Quantity | 5 |
| Brake Surface Width | 67mm (2.64") |
| Center Hole Diameter | 57.5mm (2.26") |
| Construction | Full Cast |
| Drum Type | Floating |
| Height | 77.3mm (3.04") |
| Maximum Diameter | 251.2mm (9.89") |
| Nominal Diameter | 250mm (9.84") |
| Outside Diameter | 308mm (12.13") |
| Type | Plain Cooling Fins |
| UPC | 756632110630 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000 Chrysler Grand Voyager | All Trims | All Engines |
| 1996-2000 Chrysler Town & Country | All Trims | All Engines |
| 2000 Chrysler Voyager | All Trims | All Engines |
| 1996-2000 Dodge Caravan | All Trims | All Engines |
| 1996-2000 Dodge Grand Caravan | All Trims | All Engines |
| 1996-2000 Plymouth Grand Voyager | All Trims | All Engines |
| 1996-2000 Plymouth Voyager | All Trims | All Engines |
