Vehicle Specific
Check if it fits by entering your vehicle info| Brand | DuraGo |
| Part Number | BD80084 |

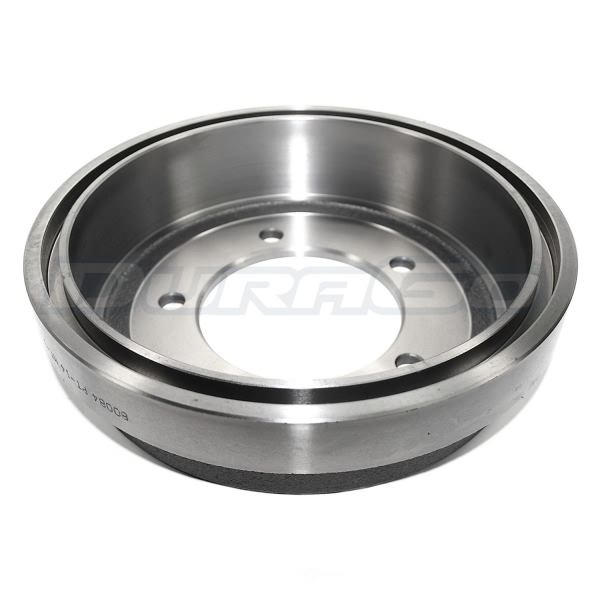

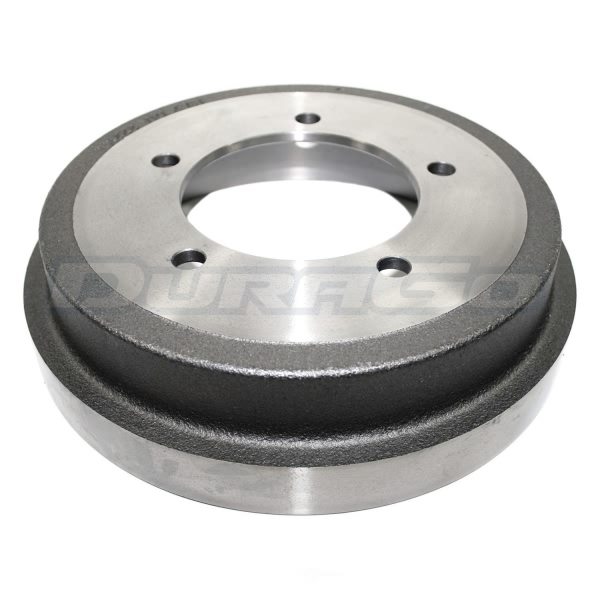

| Part Description | Rear Brake Drum |
| Abs Sensor Ring Includes | No |
| Bolt Circle Diameter | 139.7mm (5.5") |
| Bolt Hole Diameter | 13mm (0.51") |
| Bolt Hole Quantity | 5 |
| Brake Surface Width | 53.3mm (2.10") |
| Center Hole Diameter | 108.2mm (4.26") |
| Construction | Full Cast |
| Drum Type | Floating |
| Height | 63.9mm (2.52") |
| Maximum Diameter | 222mm (8.74") |
| Nominal Diameter | 220mm (8.66") |
| Outside Diameter | 261.6mm (10.30") |
| Type | Plain Cooling Fins |
| UPC | 756632122084 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2000-2004 Chevrolet Tracker | All Trims | All Engines |
| 2000 Suzuki Grand Vitara | All Trims | All Engines |
| 2001 Suzuki Grand Vitara | JLS | All Engines |
| 2001 Suzuki Grand Vitara | JLS Plus | All Engines |
| 2001 Suzuki Grand Vitara | JLS Plus SE | All Engines |
| 2001 Suzuki Grand Vitara | JLX | All Engines |
| 2001 Suzuki Grand Vitara | JLX Plus | All Engines |
| 2001 Suzuki Grand Vitara | JLX Plus SE | All Engines |
| 2001 Suzuki Grand Vitara | Limited | All Engines |
| 2002-2005 Suzuki Grand Vitara | All Trims | All Engines |
