Vehicle Specific
Check if it fits by entering your vehicle info| Brand | DuraGo |
| Part Number | BD8945 |

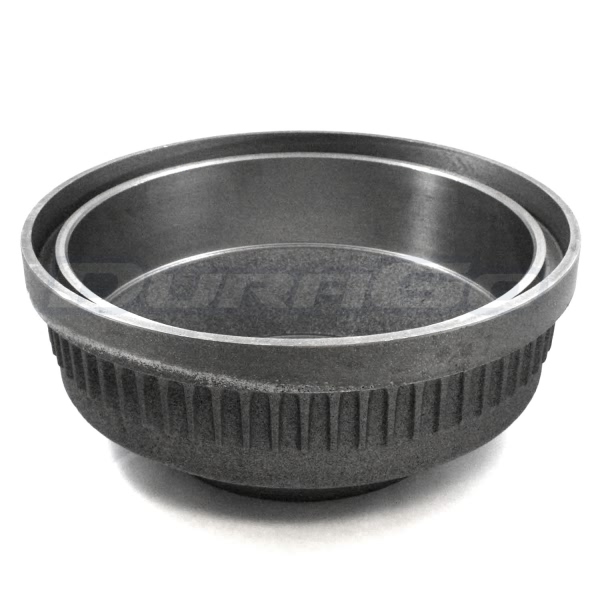

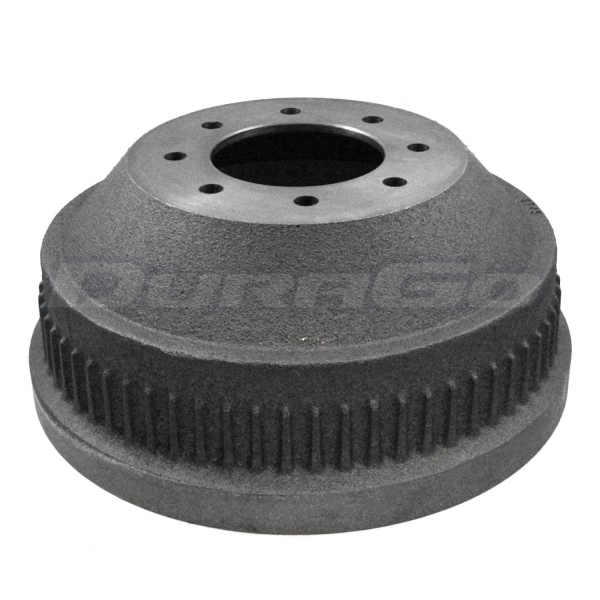

| Part Description | Rear Brake Drum |
| Abs Sensor Ring Includes | No |
| Bolt Circle Diameter | 165.1mm (6.5") |
| Bolt Hole Diameter | 16mm (0.63") |
| Bolt Hole Quantity | 8 |
| Brake Surface Width | 80.6mm (3.17") |
| Center Hole Diameter | 117.7mm (4.63") |
| Construction | Full Cast |
| Drum Type | Floating |
| Height | 165.4mm (6.51") |
| Maximum Diameter | 332.49mm (13.09") |
| Nominal Diameter | 330mm (12.99") |
| Outside Diameter | 393.3mm (15.48") |
| Type | Finned Cooling Fins |
| UPC | 756632100914 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1981-1986 Chevrolet C20 | All Trims | All Engines |
| 1985-1986 Chevrolet C20 Suburban | All Trims | All Engines |
| 1989-2000 Chevrolet C2500 | All Trims | All Engines |
| 1992-1996 Chevrolet C2500 Suburban | All Trims | All Engines |
| 1988-1989 Chevrolet C3500 | All Trims | All Engines |
| 1992-1996 Chevrolet C3500 | All Trims | All Engines |
| 1996-2002 Chevrolet Express 2500 | All Trims | All Engines |
| 1983-1996 Chevrolet G30 | All Trims | All Engines |
| 1994-1999 Chevrolet K1500 Suburban | All Trims | All Engines |
| 1981-1986 Chevrolet K20 | All Trims | All Engines |
