Vehicle Specific
Check if it fits by entering your vehicle info| Brand | DuraGo |
| Part Number | BD8970 |

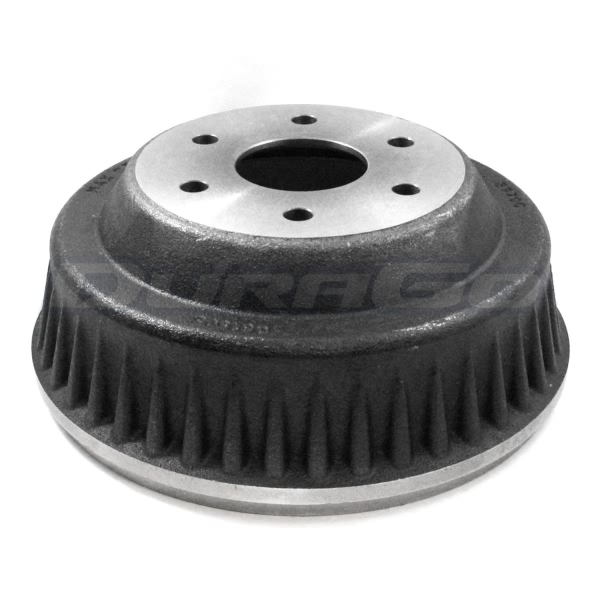

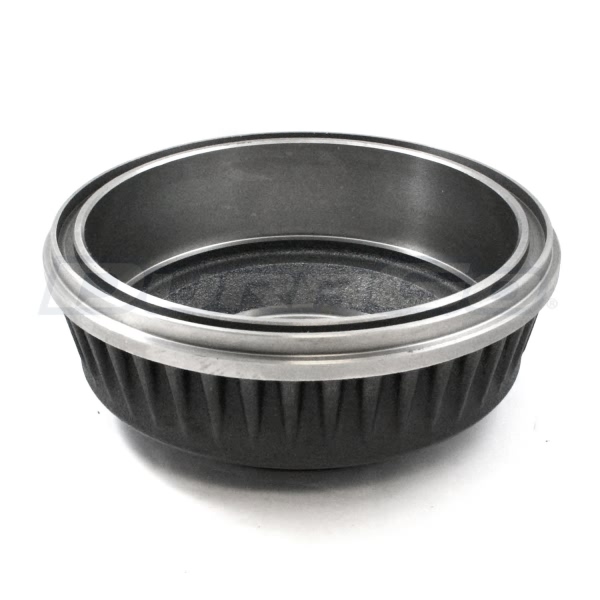

| Part Description | Rear Brake Drum |
| Abs Sensor Ring Includes | No |
| Bolt Circle Diameter | 139.7mm (5.5") |
| Bolt Hole Diameter | 15.8mm (0.62") |
| Bolt Hole Quantity | 6 |
| Brake Surface Width | 81.7mm (3.22") |
| Center Hole Diameter | 78.6mm (3.09") |
| Construction | Full Cast |
| Drum Type | Floating |
| Height | 135mm (5.31") |
| Maximum Diameter | 285.5mm (11.24") |
| Nominal Diameter | 283.4mm (11.16") |
| Outside Diameter | 340mm (13.39") |
| Type | Finned Cooling Fins |
| UPC | 756632105650 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1988-1991 Chevrolet C2500 | All Trims | All Engines |
| 1992-1998 Chevrolet C2500 | Cheyenne | All Engines |
| 1992-1998 Chevrolet C2500 | Silverado | All Engines |
| 1994-1995 Chevrolet C2500 | WT | All Engines |
| 1994-1997 Chevrolet C2500 | Base | All Engines |
| 1998 Chevrolet C2500 | WT | All Engines |
| 1999-2000 Chevrolet C2500 | Base | All Engines |
| 1999-2000 Chevrolet C2500 | LS | All Engines |
| 1996-2002 Chevrolet Express 2500 | All Trims | All Engines |
| 1988-1999 Chevrolet K1500 | All Trims | All Engines |
