Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 158275 |

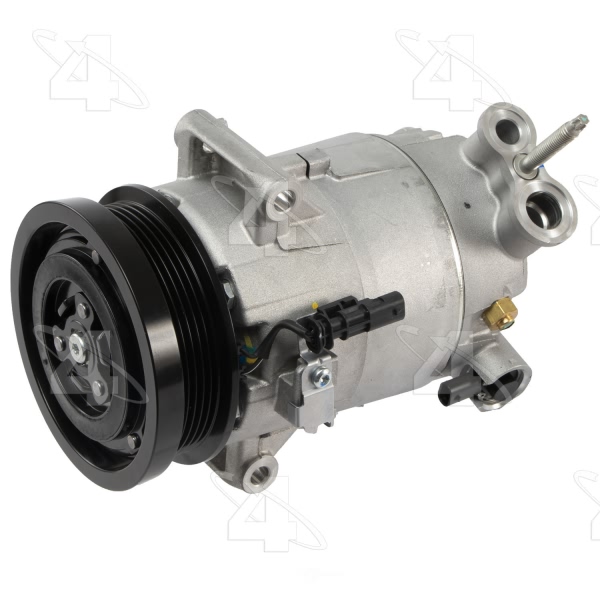

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.3125 |

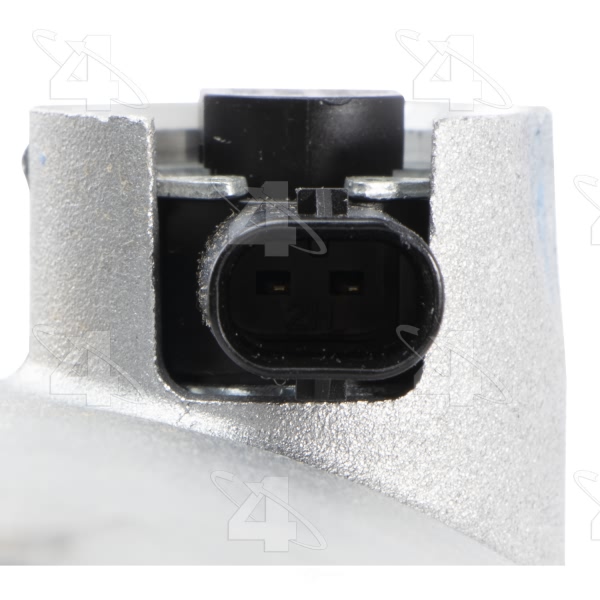

| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | CVC |
| Distance From Clutch To Mounting Flange | 1.250 |
| Mounting Hardware | Not Included |
| Mounting Type | 2 Ear & 1 Tangent |
| New or Reman | New |
| O-Ring A Number/Desc | [24402] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24404] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 4.3125 |
| Pulley Outside Diameter | 4.3125 |
| Pulley Ridge Diameter | 4.3125 |
| Refrigerant Type | R-134a or R1234yf |

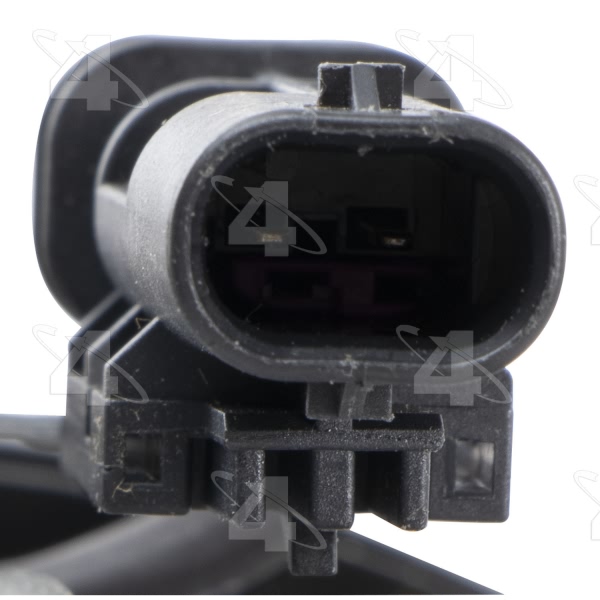

| Terminal Type | Harness Lead |
| UPC | 096361144415 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2019 Buick Envision | All Trims | All Engines |
| 2018-2019 Chevrolet Equinox | All Trims | 4 Cyl 2.0L |
| 2018-2019 GMC Terrain | All Trims | 4 Cyl 2.0L |
