Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 158347 |

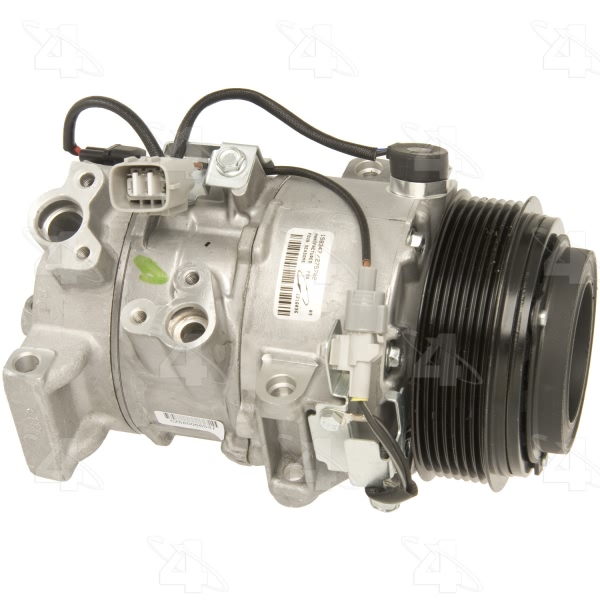

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.250 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 6SBU16C |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.59375 |
| ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
| Mount Distance MM | 40.640 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24681] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24661] / Green O-Ring |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 107.950 |
| Pulley Groove Quantity | 7 |
| Pulley Lip Diameter | 4.250 |
| Pulley Outside Diameter | 4.250 |
| Pulley Ridge Diameter | 4.250 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Switch Included | Switch |
| Terminal Type | Pin |
| UPC | 096361617018 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2006 Lexus GS300 | All Trims | All Engines |
| 2007-2011 Lexus GS350 | All Trims | All Engines |
| 2006-2010 Lexus IS250 | All Trims | All Engines |
| 2011-2012 Lexus IS250 | Base | All Engines |
| 2013 Lexus IS250 | All Trims | All Engines |
| 2011-2013 Lexus IS350 | All Trims | All Engines |
