Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 158388 |

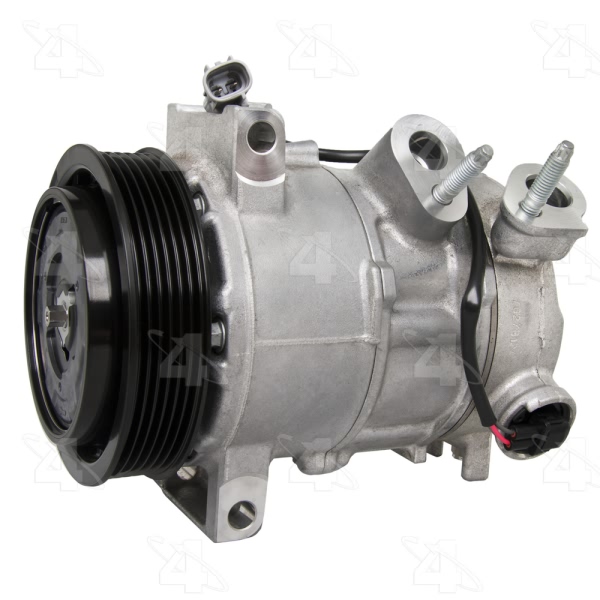

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.71875 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 6SEU16C |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 0.734375 |
| ECV Harness Connector | SE10F, 26984 Female / / SE10M, 26878 Male |
| Mount Distance MM | 18.796 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24068] / Gasket |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24069] / Gasket |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 119.888 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.71875 |
| Pulley Outside Diameter | 4.71875 |
| Pulley Ridge Diameter | 4.71875 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361622128 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2009 Dodge Caliber | All Trims | 4 Cyl 1.8L |
| 2009 Dodge Caliber | All Trims | 4 Cyl 2.4L |
| 2010-2012 Dodge Caliber | All Trims | All Engines |
| 2009-2017 Jeep Compass | All Trims | All Engines |
| 2009-2017 Jeep Patriot | All Trims | All Engines |
