Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 158503 |

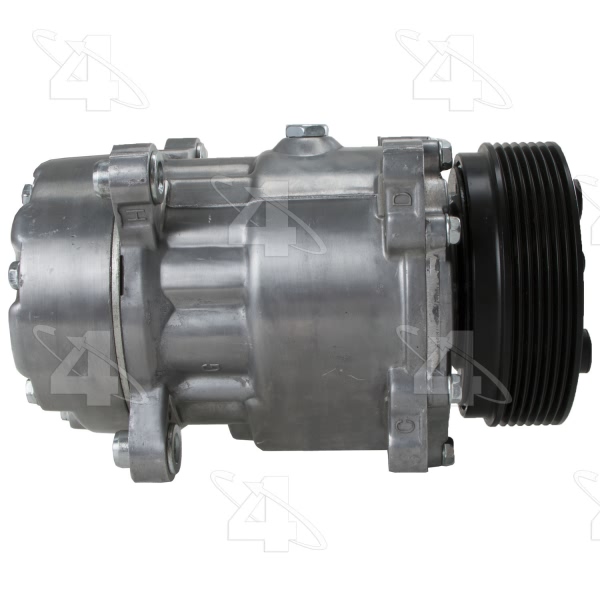

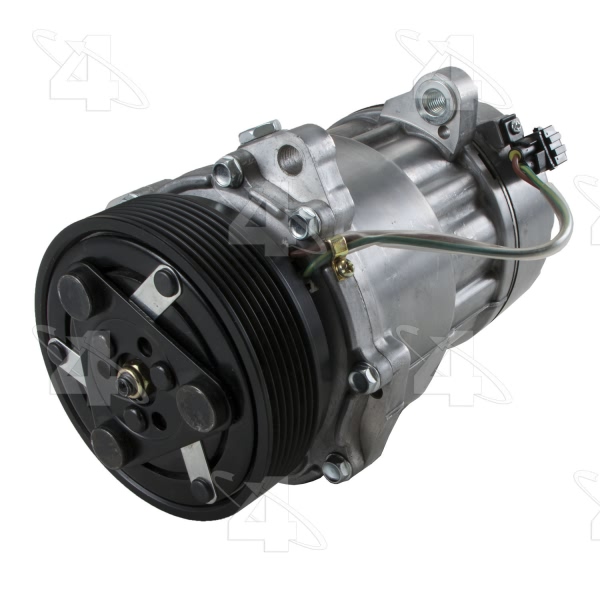

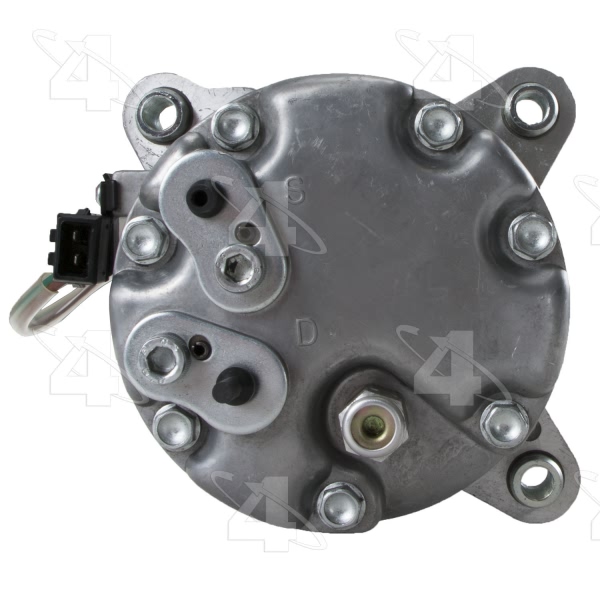

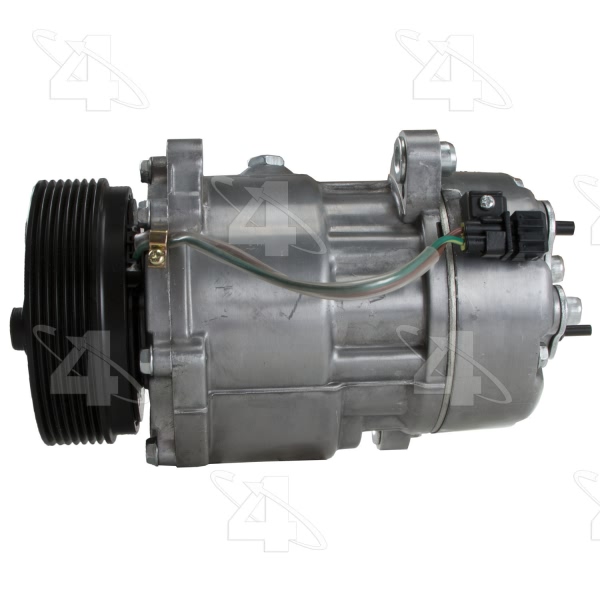

| Part Description | A C Compressor With Clutch |

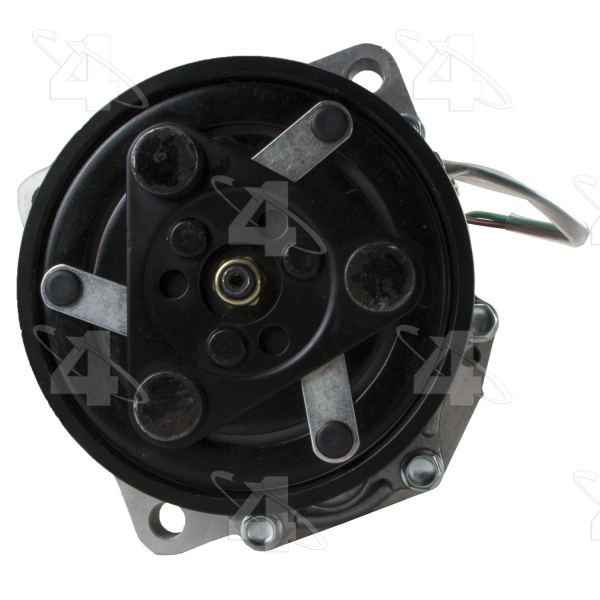

| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.689 |
| Coil Clock Position | 2 Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | SD7V16 |
| Distance From Clutch To Mounting Flange | 1.3 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | 24661 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24681 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 7 |
| Pulley Lip Diameter | 4.689 |
| Pulley Outside Diameter | 4.689 |
| Pulley Ridge Diameter | 4.689 |
| Refrigerant Type | R134a |

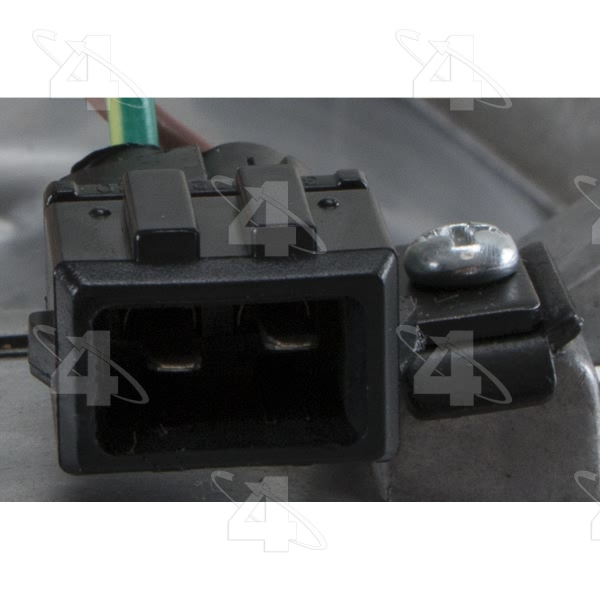

| Terminal Type | Pin |
| UPC | 096361033108 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2001-2003 Volkswagen EuroVan | All Trims | All Engines |
