Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 158541 |

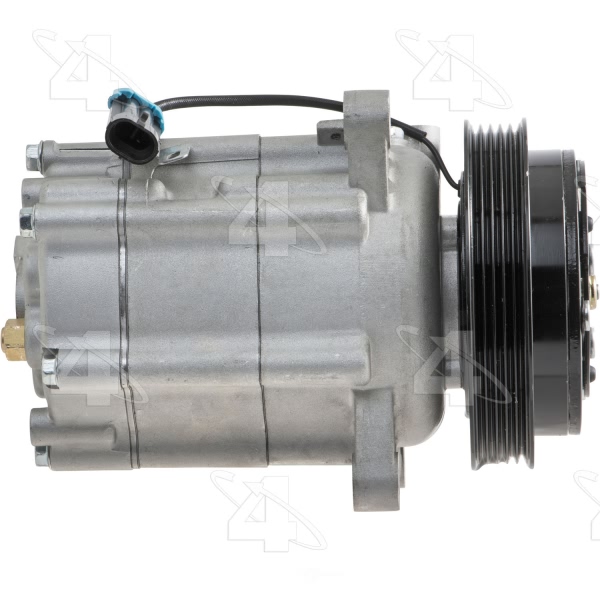

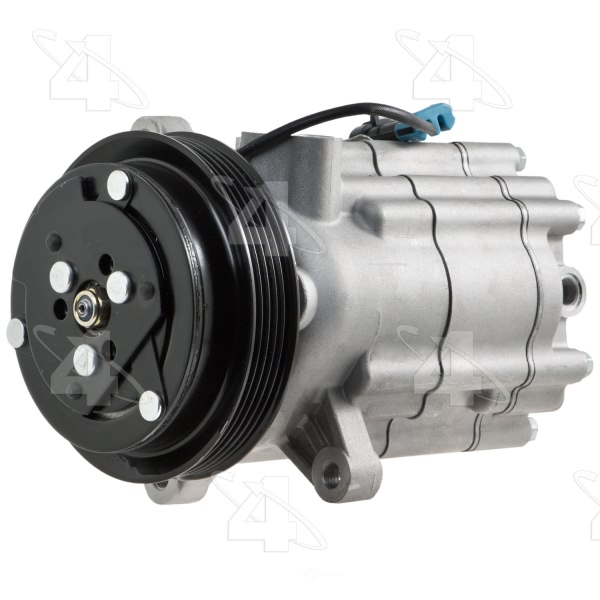

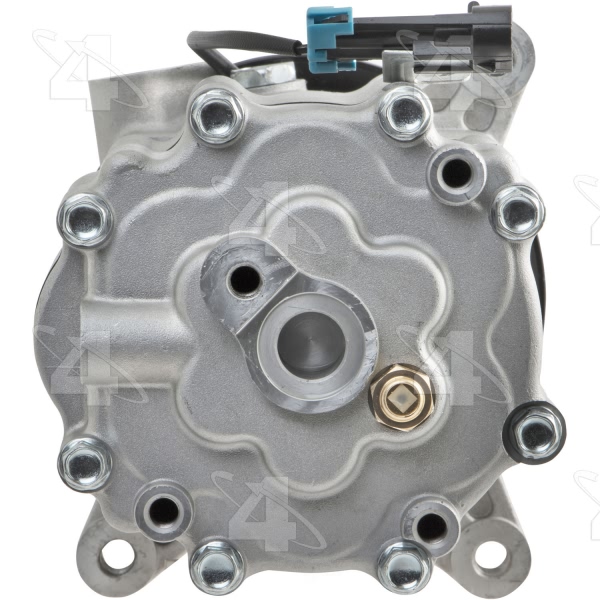

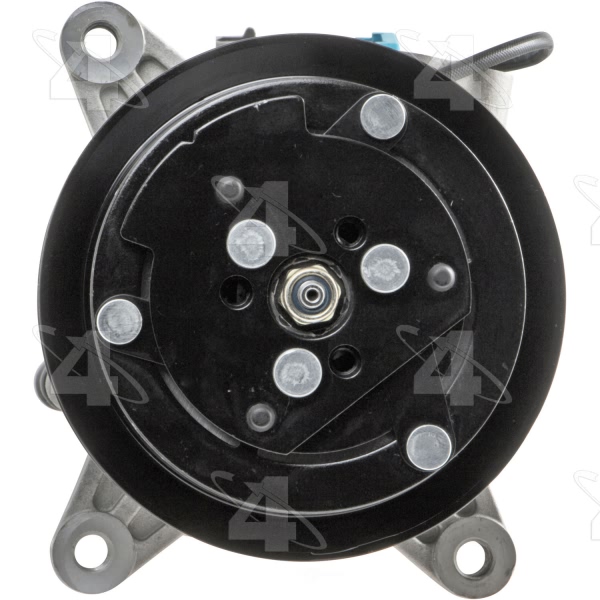

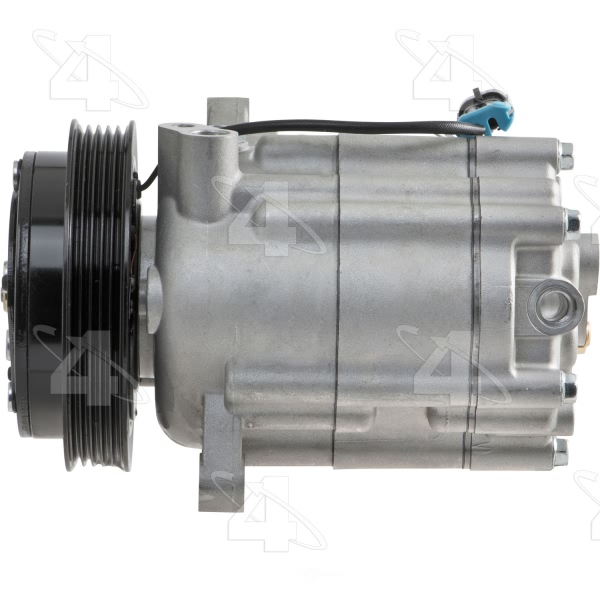

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.875 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | DKV11J |
| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.250 |
| Mount Distance MM | 31.750 |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24402] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24404] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 123.825 |
| Pulley Groove Quantity | 5 |
| Pulley Lip Diameter | 4.875 |
| Pulley Outside Diameter | 4.875 |
| Pulley Ridge Diameter | 4.875 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361629158 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 1999-2002 Saturn SC1 | All Trims | All Engines |
| 1999-2002 Saturn SC2 | All Trims | All Engines |
| 1999-2002 Saturn SL | All Trims | All Engines |
| 1999-2002 Saturn SL1 | All Trims | All Engines |
| 1999-2002 Saturn SL2 | All Trims | All Engines |
| 1999 Saturn SW1 | All Trims | All Engines |
| 1999-2001 Saturn SW2 | All Trims | All Engines |
