Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 168357 |

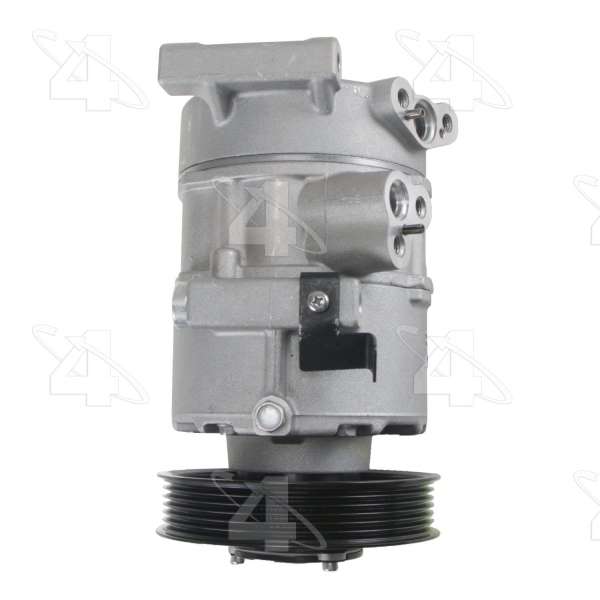

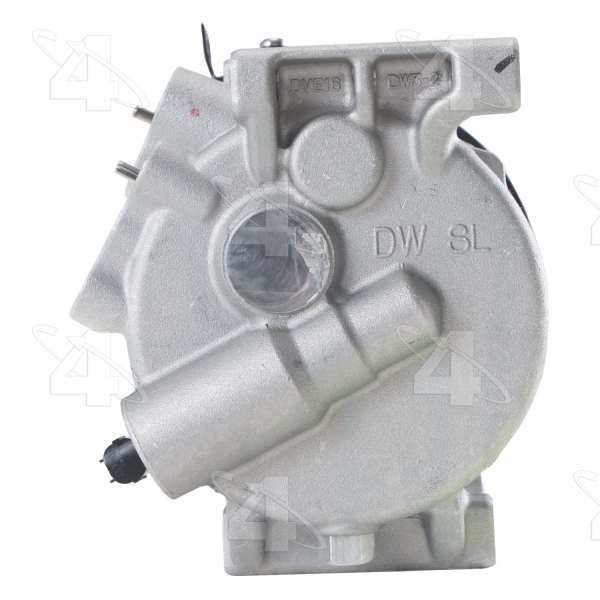

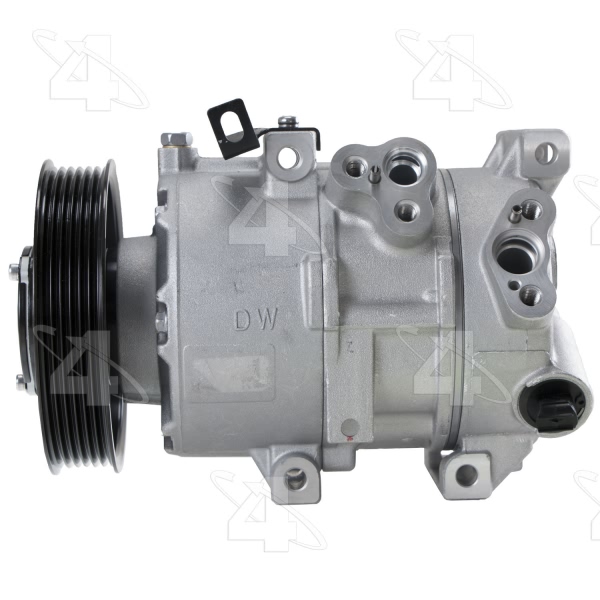

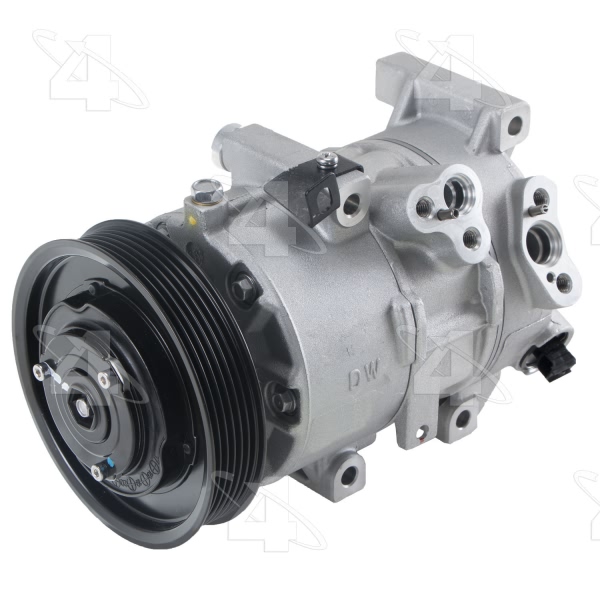

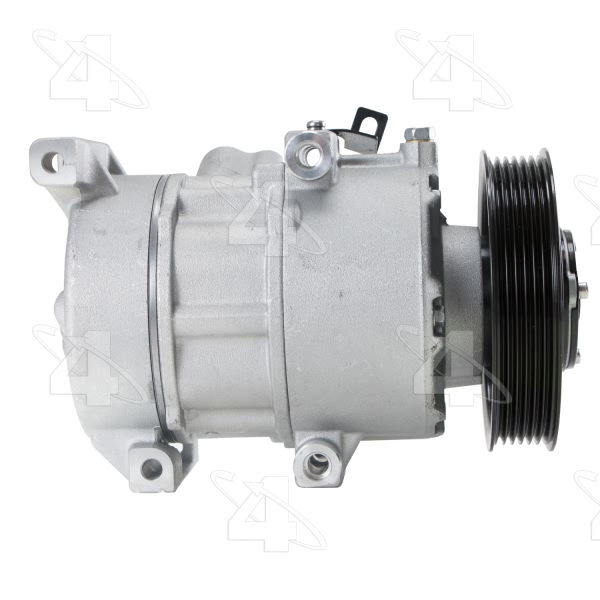

| Part Description | A C Compressor With Clutch |

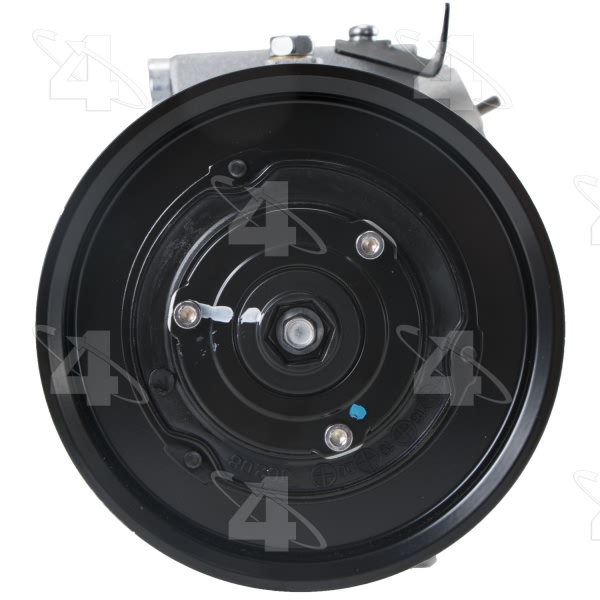

| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.890625 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | DVE16N |
| Distance From Clutch To Mounting Flange | 2.625 |

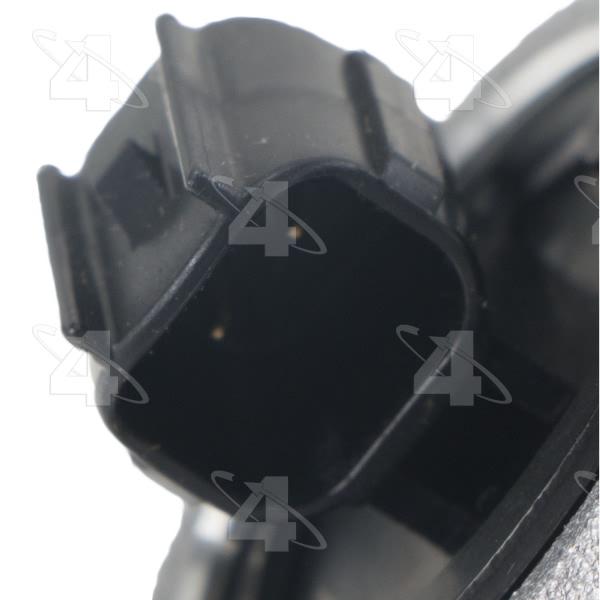

| ECV Harness Connector | SE30F, 26899 Female / / SE22M, 26882 Male |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | 24661 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24681 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | Not Required |
| O-Ring C Quantity | NR |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.890625 |
| Pulley Outside Diameter | 4.890625 |
| Pulley Ridge Diameter | 4.890625 |
| Refrigerant Type | R-134a or R1234yf |
| Terminal Type | Pin |
| UPC | 096361032125 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2016-2017 Hyundai Tucson | All Trims | 4 Cyl 1.6L |
