Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 168398 |

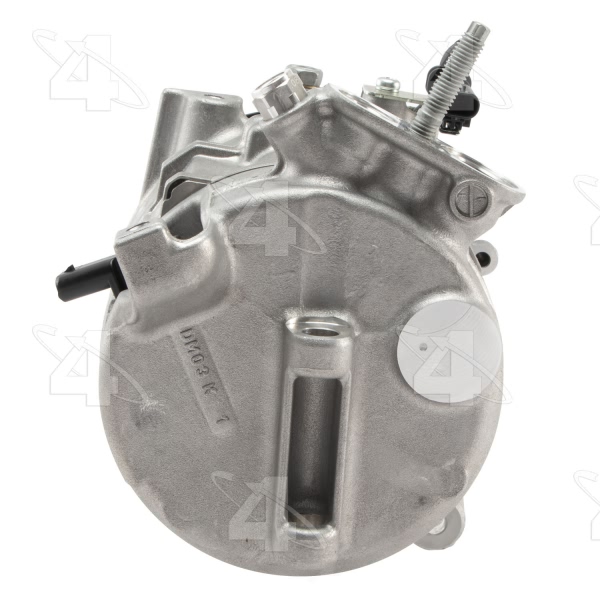

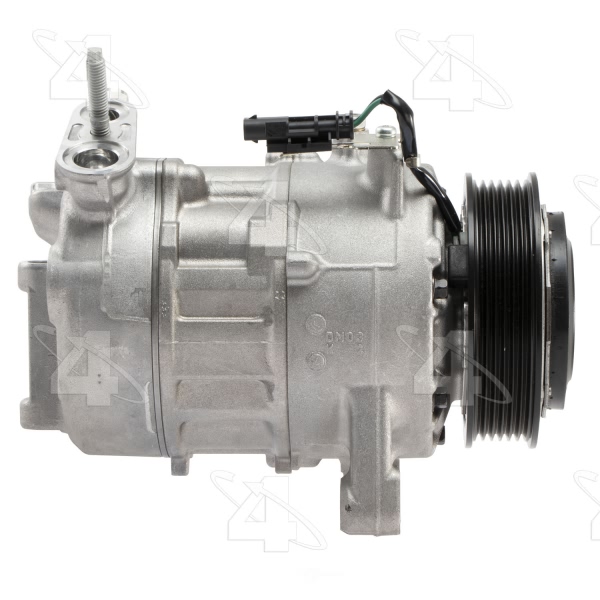

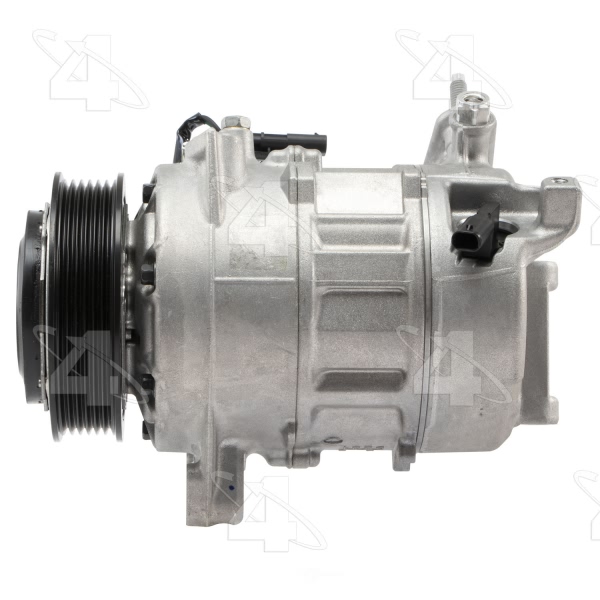

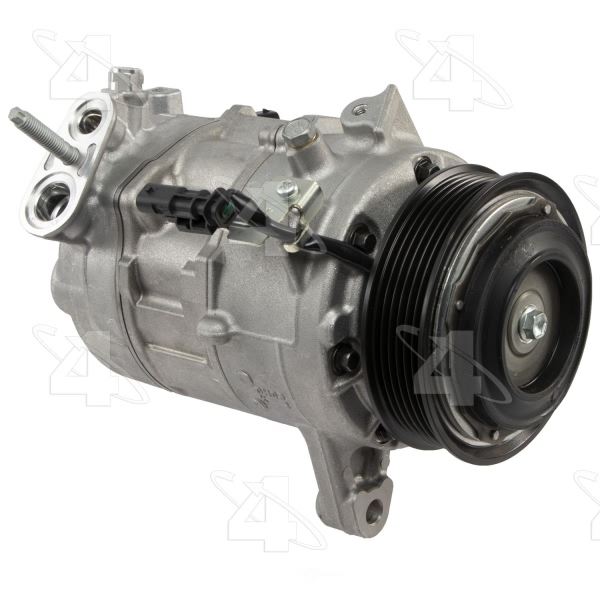

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.3125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | See under hood decal for proper oil type. |
| Compressor Type | 7SAS17A |
| Distance From Clutch To Mounting Flange | 1.203125 |
| Mounting Hardware | Not Included |

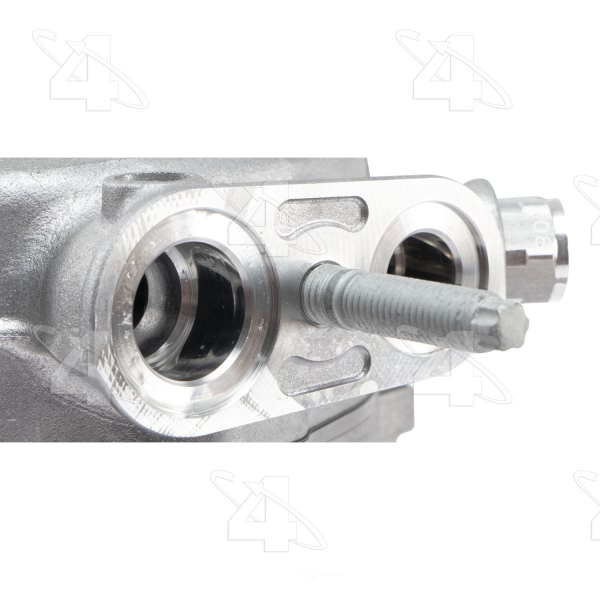

| Mounting Type | 2 Ear & 1 Tangent |
| New or Reman | New |
| O-Ring A Number/Desc | [24402] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24404] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.3125 |
| Pulley Outside Diameter | 4.3125 |
| Pulley Ridge Diameter | 4.3125 |
| Refrigerant Type | R-134a or R1234yf |

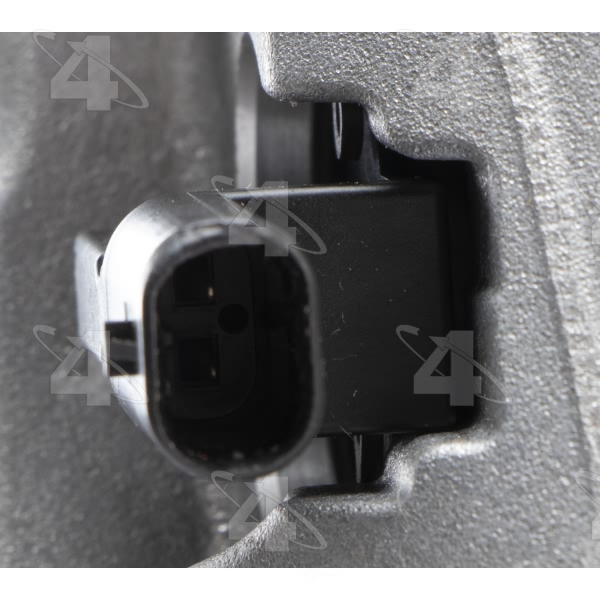

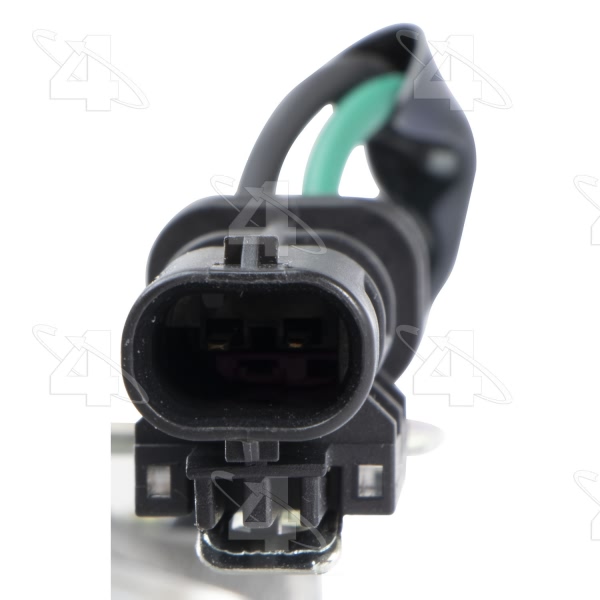

| Terminal Type | Harness Lead |
| UPC | 096361144361 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2017 Buick LaCrosse | All Trims | All Engines |
| 2017-2018 Cadillac XT5 | All Trims | All Engines |
| 2017-2019 GMC Acadia | All Trims | 6 Cyl 3.6L |
| 2017 GMC Acadia Limited | All Trims | All Engines |
