Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 168660 |
| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.515625 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | DKS20 |

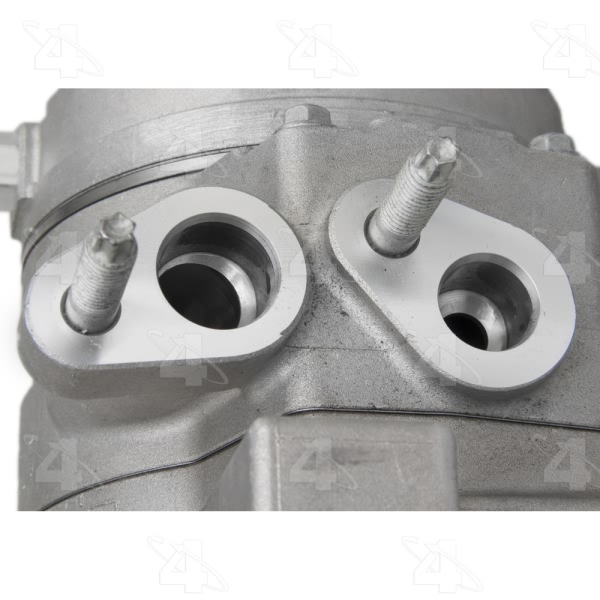

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 2.40625 |
| Mount Distance MM | 60.960 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24241] / Sealing Washer Kit |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24243] / Tear Drop Sealing Washer |
| O-Ring B Quantity | 1 |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 114.808 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.515625 |
| Pulley Outside Diameter | 4.515625 |
| Pulley Ridge Diameter | 4.515625 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |

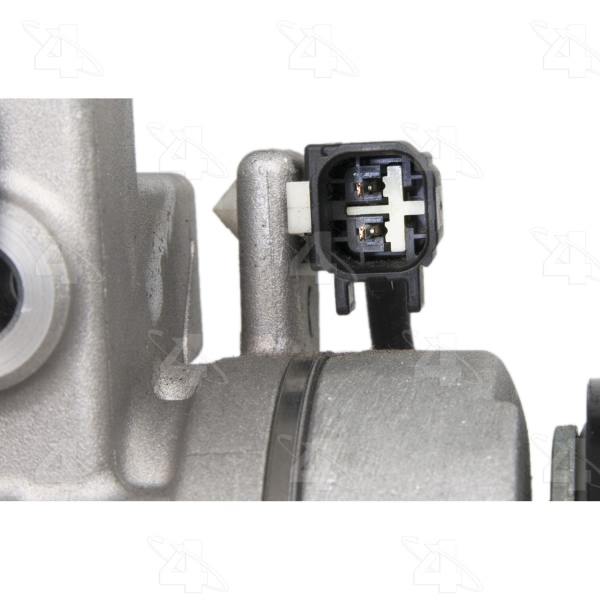

| Terminal Type | Pin |
| UPC | 096361623088 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2011-2014 Ford F-150 | All Trims | 8 Cyl 5.0L |
| 2011-2014 Ford Lobo | All Trims | 8 Cyl 5.0L |
