Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 198352 |

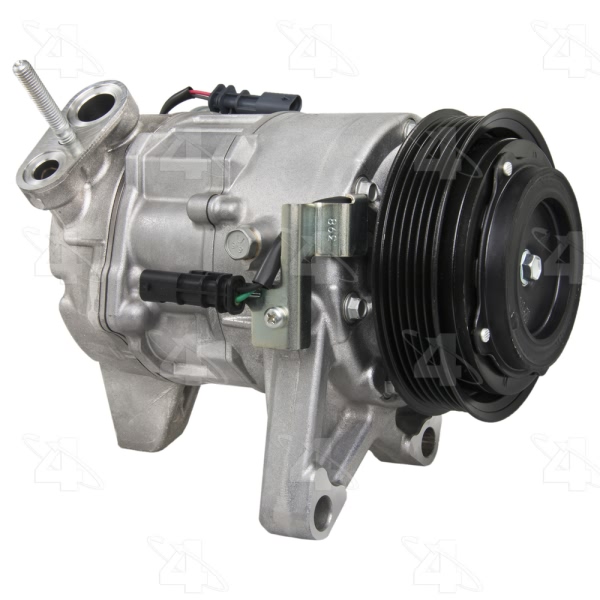

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.734375 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 7SBH17 |
| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 0.953125 |
| ECV Harness Connector | SE31F, 26900 Female / / SE23M, 26883 Male |
| Mount Distance MM | 24.384 |
| Mounting Hardware | Not Included |
| Mounting Type | 2 Ear & 1 Tangent |
| New or Reman | New |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 120.142 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.734375 |
| Pulley Outside Diameter | 4.734375 |
| Pulley Ridge Diameter | 4.734375 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |
| Terminal Type | Pin |
| UPC | 096361623651 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012 Chevrolet Equinox | All Trims | 6 Cyl 3.0L |
| 2013-2016 Chevrolet Equinox | All Trims | 6 Cyl 3.6L |
| 2012-2013 Chevrolet Impala | All Trims | All Engines |
| 2014 Chevrolet Impala | All Trims | 4 Cyl 2.4L |
| 2014 Chevrolet Impala | All Trims | 4 Cyl 2.5L |
| 2014 Chevrolet Impala | All Trims | 6 Cyl 3.6L |
| 2014-2016 Chevrolet Impala Limited | All Trims | All Engines |
| 2012 GMC Terrain | All Trims | 6 Cyl 3.0L |
| 2013-2016 GMC Terrain | All Trims | 6 Cyl 3.6L |
