Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 198353 |

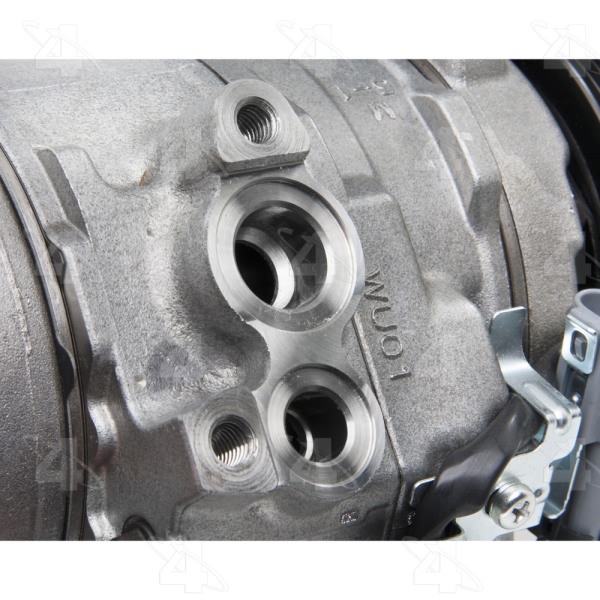

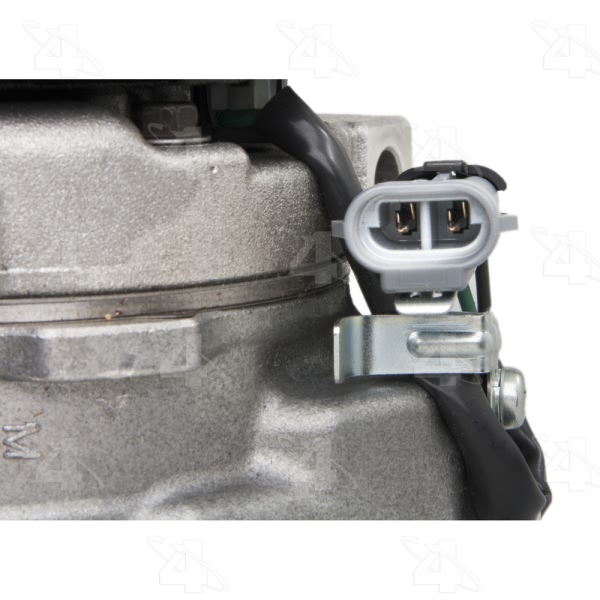

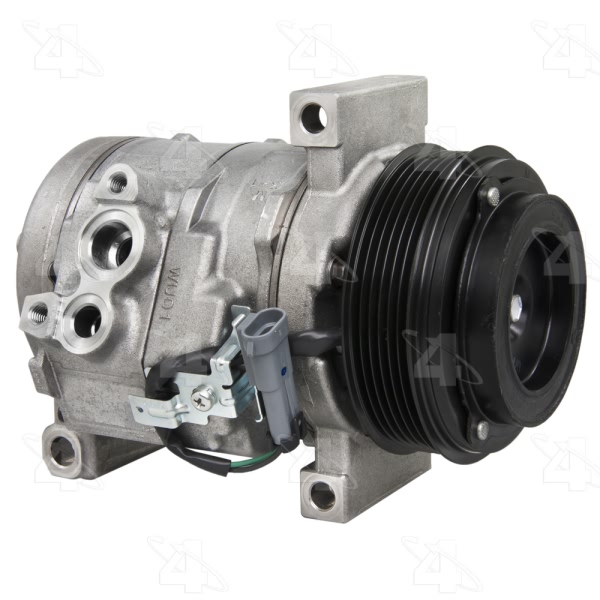

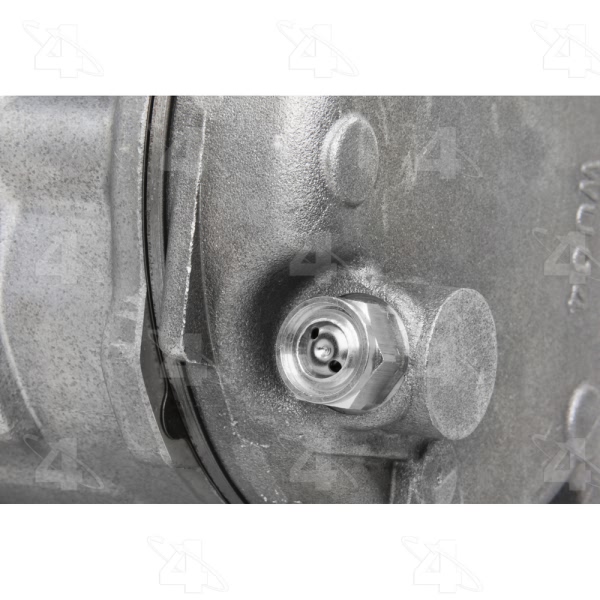

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.328125 |
| Coil Clock Position | Wire Lead |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 10SE18 |
| Discharge Port Type | Sealing Washer |
| Distance From Clutch To Mounting Flange | 0.625 |
| Mount Distance MM | 16.000 |
| Mounting Hardware | Not Included |
| Mounting Type | Tangent Mount |
| New or Reman | New |
| O-Ring A Number/Desc | [24404] / Slimline Washer |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24402] / Slimline Washer |
| O-Ring B Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Non-Clutch |
| Pulley Diameter MM | 109.982 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.328125 |
| Pulley Outside Diameter | 4.328125 |
| Pulley Ridge Diameter | 4.328125 |
| Refrigerant Type | R134a |
| Suction Port Type | Sealing Washer |
| Terminal Type | Pin |
| UPC | 096361623620 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2010-2013 Chevrolet Express 1500 | All Trims | 6 Cyl 4.3L |
| 2014 Chevrolet Express 1500 | All Trims | All Engines |
| 2010-2013 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
| 2014 Chevrolet Express 2500 | All Trims | All Engines |
| 2015-2016 Chevrolet Express 2500 | All Trims | 8 Cyl 6.6L |
| 2010-2013 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
| 2014 Chevrolet Express 3500 | All Trims | All Engines |
| 2015-2016 Chevrolet Express 3500 | All Trims | 8 Cyl 6.6L |
| 2010-2013 Chevrolet Express Cargo | All Trims | 6 Cyl 4.3L |
| 2014 Chevrolet Express Cargo | All Trims | All Engines |
