Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 198378 |

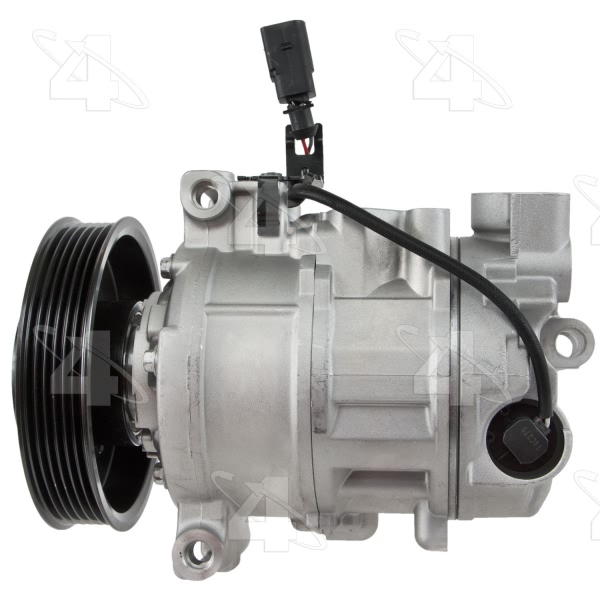

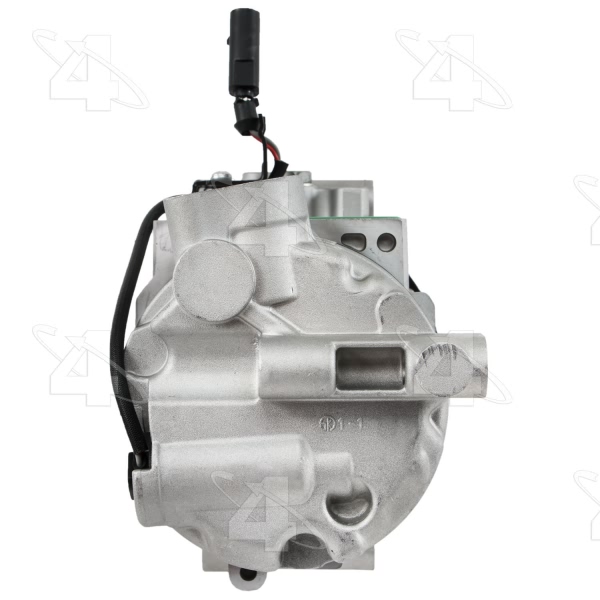

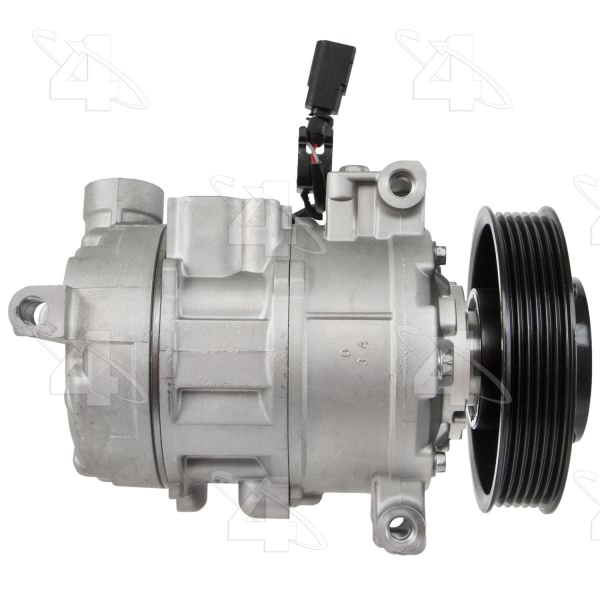

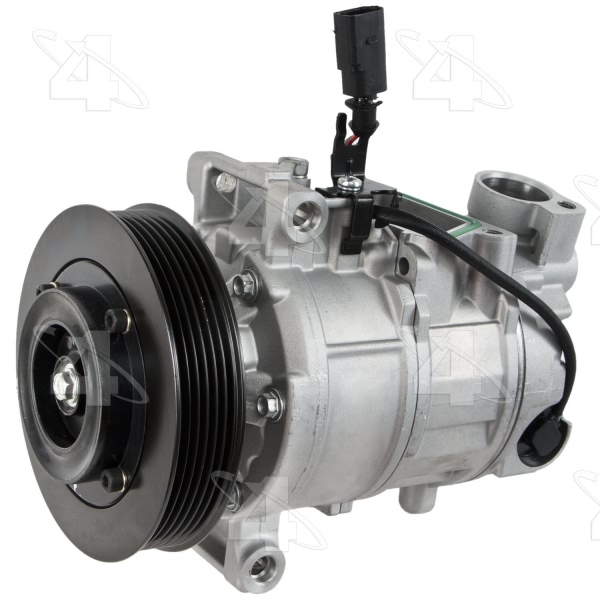

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.9375 |
| Coil Clock Position | NR |
| Coil Type | Coil Less |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 6SEU14C |

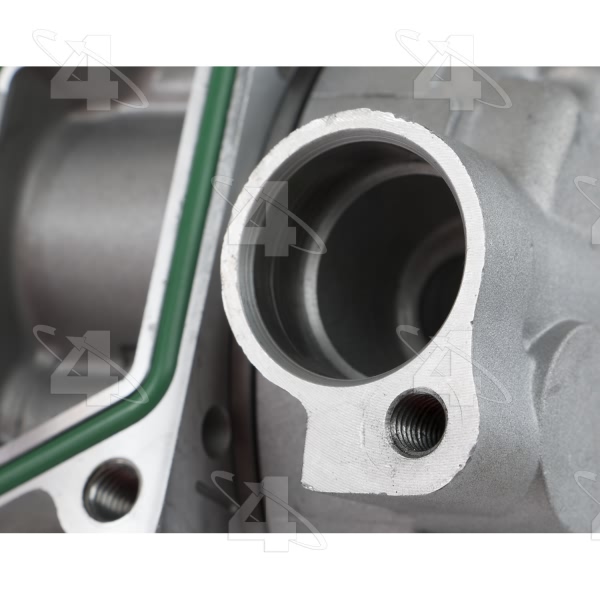

| Discharge Port Type | O-Ring |
| Distance From Clutch To Mounting Flange | 1.234375 |

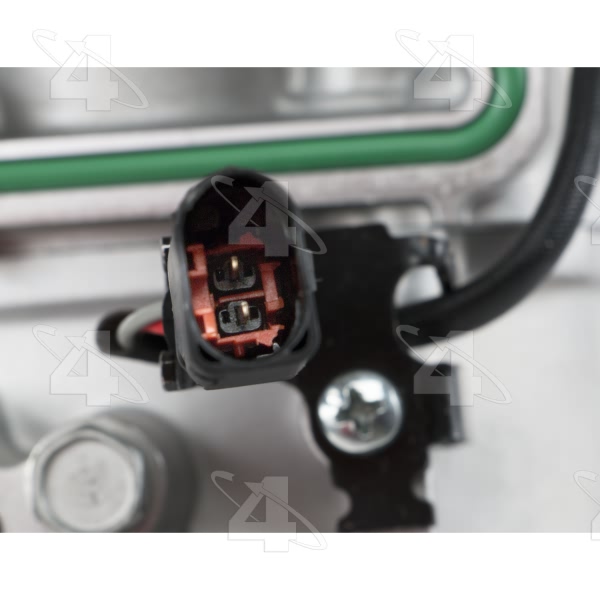

| ECV Harness Connector | SE35F, 26901 Female / / SE35M, 26887 Male |
| Mount Distance MM | 31.496 |
| Mounting Hardware | Not Included |
| Mounting Type | 3 Tangent One on Rear Head |
| New or Reman | New |

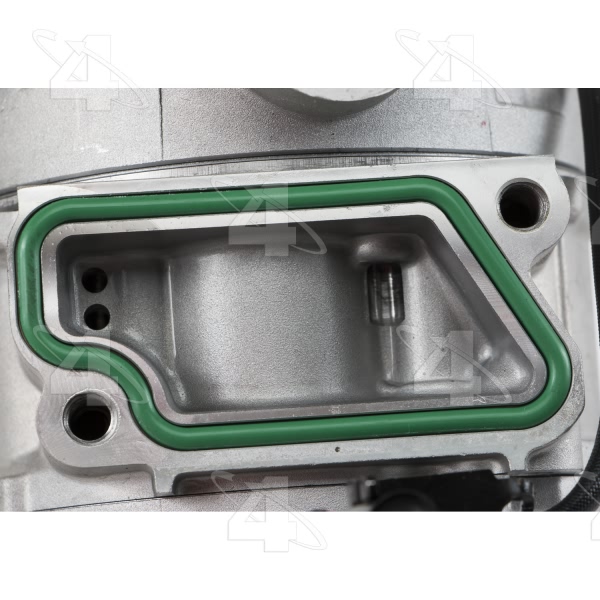

| O-Ring A Number/Desc | [24659] / Green O-Ring |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | [24653] / Green Round O-Ring |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | 24683 |
| O-Ring C Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |

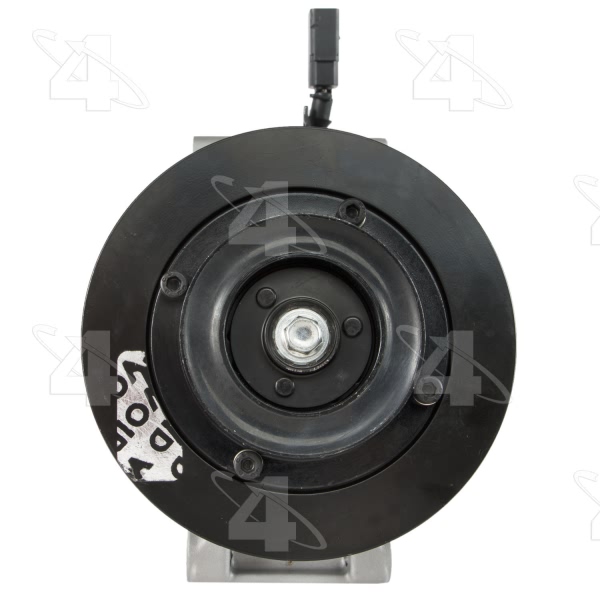

| Pulley Belt Type | Serpentine |
| Pulley Diameter MM | 125.222 |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.9375 |
| Pulley Outside Diameter | 4.9375 |
| Pulley Ridge Diameter | 4.9375 |
| Refrigerant Type | R134a |
| Suction Port Type | O-Ring |
| Terminal Type | Pin |
| UPC | 096361624092 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012 Audi A6 Quattro | All Trims | All Engines |
| 2013 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
| 2015 Audi A6 Quattro | All Trims | 6 Cyl 3.0L |
| 2012-2013 Audi A7 Quattro | All Trims | All Engines |
| 2015 Audi A7 Quattro | All Trims | 6 Cyl 3.0L |
| 2015-2016 Audi A8 | All Trims | 6 Cyl 3.0L |
| 2016 Audi A8 | All Trims | 8 Cyl 4.0L |
| 2013-2018 Audi A8 Quattro | All Trims | 6 Cyl 3.0L |
| 2013-2018 Audi A8 Quattro | All Trims | 8 Cyl 4.0L |
| 2018 Audi A8 Quattro | All Trims | 12 Cyl 6.3L |
