Vehicle Specific
Check if it fits by entering your vehicle info| Brand | Four Seasons |
| Part Number | 198382 |

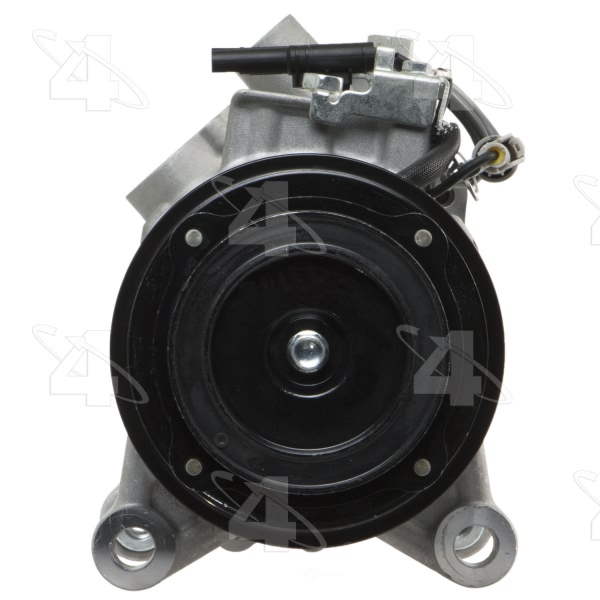

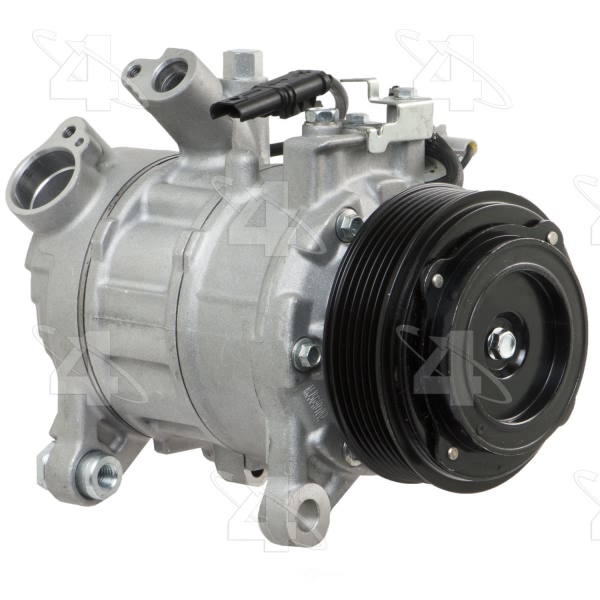

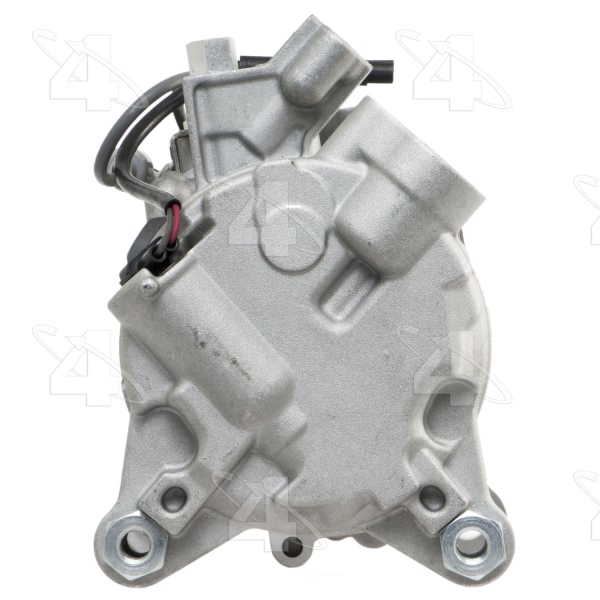

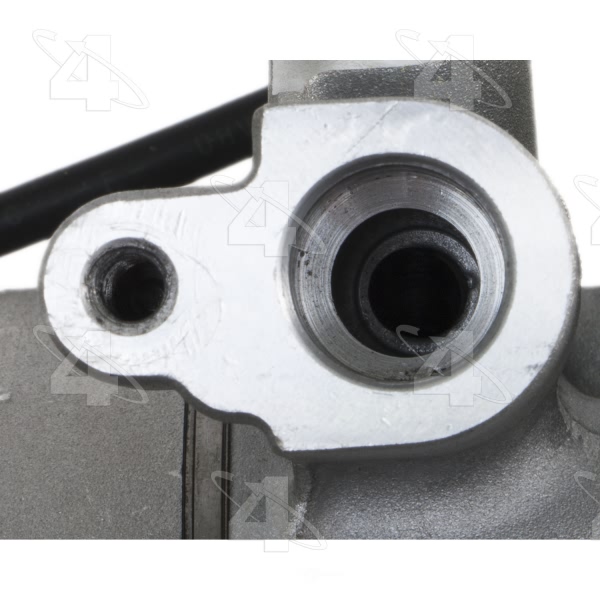

| Part Description | A C Compressor With Clutch |
| Clutch Included | Yes |
| Clutch Maximum Diameter | 4.33 |
| Coil Clock Position | Lead Wire |
| Coil Voltage | 12 |
| Compatible Refrigerant Oil Type | PAG 46 |
| Compressor Type | 6SBU14A |
| Distance From Clutch To Mounting Flange | 1.234375 |

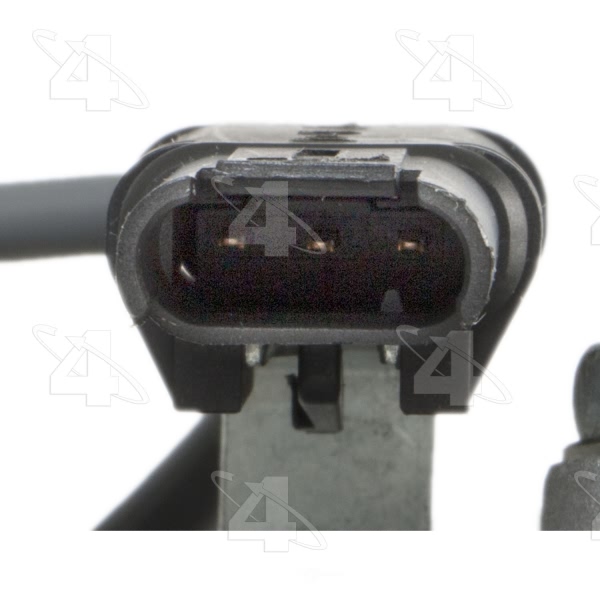

| ECV Harness Connector | SE05F, 26892 Female / / SE22M, 26882 Male |
| Mounting Hardware | Not Included |
| Mounting Type | Ear Mount |
| New or Reman | New |
| O-Ring A Number/Desc | 24635 |
| O-Ring A Quantity | 1 |
| O-Ring B Number/Desc | 24659 |
| O-Ring B Quantity | 1 |
| O-Ring C Number/Desc | 24683 |
| O-Ring C Quantity | 1 |
| Printed Foot Note | May Require use of OE Manifold |
| Pulley Belt Type | Serpentine |
| Pulley Groove Quantity | 6 |
| Pulley Lip Diameter | 4.33 |
| Pulley Outside Diameter | 4.33 |
| Pulley Ridge Diameter | 4.33 |
| Refrigerant Type | R134a |
| Terminal Type | Pin |
| UPC | 096361629554 |
| Year Make Model | Trim | Engine |
|---|---|---|
| 2012-2015 BMW X1 | All Trims | 4 Cyl 2.0L |
| 2015 BMW X1 | sDrive28i | 4 Cyl 2.0L |
| 2015 BMW X1 | xDrive28i | 4 Cyl 2.0L |
| 2013 BMW X3 | xDrive28i | 4 Cyl 2.0L |
| 2014-2015 BMW X3 | All Trims | 4 Cyl 2.0L |
| 2015 BMW X3 | sDrive20i | 4 Cyl 2.0L |
| 2015 BMW X3 | sDrive28i | 4 Cyl 2.0L |
| 2015 BMW X3 | xDrive28d | 4 Cyl 2.0L |
| 2015 BMW X3 | xDrive28i | 4 Cyl 2.0L |
| 2015 BMW X3 | xDrive28i X Line | 4 Cyl 2.0L |
